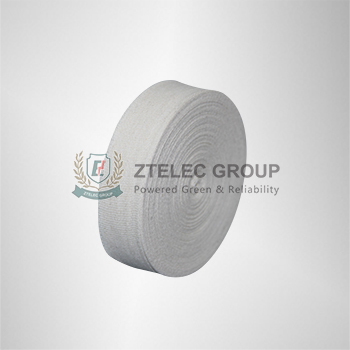

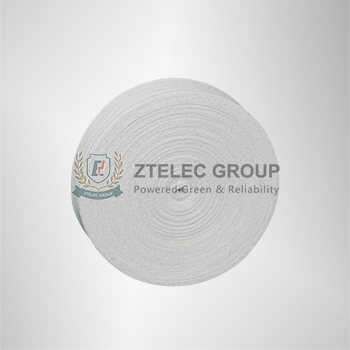

Transformer purpose electrical isnualtion 100% cotton tape
Specifications of Cotton Binding Tape
Thickness: 0.10-0.50mm
Color: White
Width: 10mm--100mm
Length: 25M/Roll
Description of Cotton Binding Tape:
This electrical insulation cotton binding tape is made from pure cotton fiber. It has excellent mechanical property ,high tensile strength and heat resistance.
Application of Cotton Binding Tape:
It is used for electrical motor, transformer or other electrical appliance as binding, insulating. etc.
|
Product Name: Cotton Banding Tape |
||
|
Property |
Units |
Values |
|
Normal Thickness |
mm |
0.25-0.35mm±0.020 |
|
Width |
mm |
10~50±2 |
|
Length |
mm |
25m-100m±2 /roll |
|
Appearance |
Smooth and White |
|
|
Broken-ends |
Allow each roll has two segments, each length is not less than 6m |
|
|
Broken-warp |
Not allowed single broken- warp more than 100mm and double broken- warp more than 30mm |
|
|
Besmirch |
Not allowed oil and rust |
|
|
Hole breaking |
There ahoule be not allowed both warp and weft broken or more than 3 wefts broken |
|
|
Tensile Strength |
N/10mm |
≥196 |
|
Elongation at break |
% |
7 |
|
Texture |
Plain or Twill |
|
