FR4 flame retardant epoxy fiberglass board is also called epoxy fiberglass cloth laminated board. It is plate-like laminated products formed by electronic grade fiberglass cloth impregnated with epoxy resin by drying and hot pressing. The main color is aqua, black and yellow. FR4 flame retardant epoxy resin fiberglass laminate sheet material has high temperature resistance, high mechanical property and dielectric property, good heat and moisture resistance, as well as strong mechanical processing property.
Our products about fr4

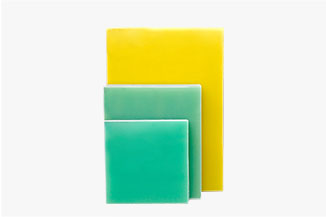

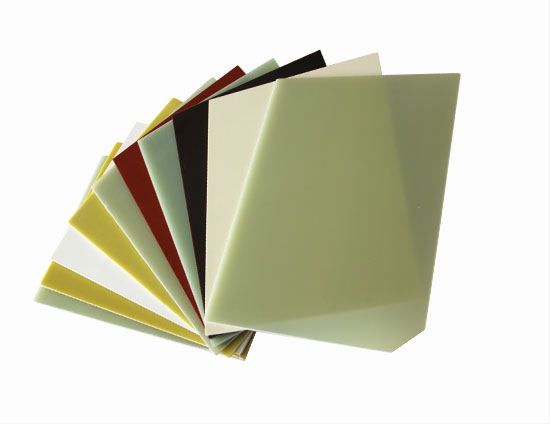

FR4 SHEET

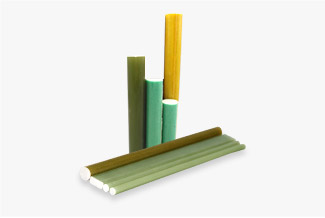

FR4 ROD

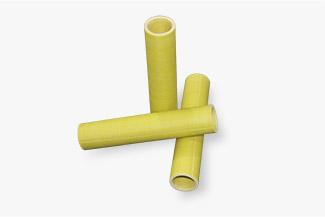

FR4 TUBE

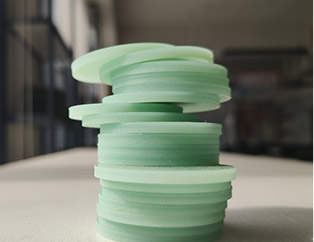

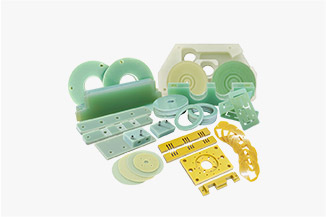

FR4 MACHINING PARTS
product details
Trust us. ZTelec Group has 62 years of production experience and technical team
These materials offer:
Good
dimensional
stability
Outstanding insulating and electrical
properties
Moisture-resistance
Excellent flammability rating
UL
listed

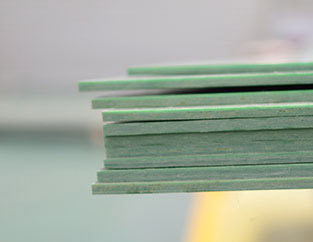

Neat cutting without rough edges
All new material, can be used directly
Custom processing can meet your needs
If you have custom needs, please contact us
Demand communication
Make a plan
Sample test
Track changes
Determine the plan
Mass production
After-sales service
DIFFERENCES BETWEEN FR4/G10/G11 EPOXY SHEET
FR4 epoxy board is actually a laminate sheet. There are many types of epoxy sheets, do you know how to distinguish them?
Epoxy board is a laminated board, mainly made of epoxy resin adhesive and paper, cotton, cloth and other substrates. There are many types of epoxy boards, including 3240 epoxy boards, FR4 boards, G11 epoxy boards and G10 laminates. Their performance is similar, but the details are different. See below:
A. Basic parameters difference:
| Product name | Origin of the name | Material composition | Colour | Temperature resistance | Flame retardant |
|---|---|---|---|---|---|
| FR4 | FR-4 is a code name for the grade of flame resistant material, which means that the resin material must be able to extinguish itself after combustion | Electronic grade fiberglass cloth (7628) + epoxy resin | White (natural), aqua green, black, yellow | 130℃ | UL94-V0 |
| G10 SHEET | "G" stands for glass fiber and "10" stands for 10% of the glass fiber | Aqua, green | 155℃ | HB | |
| G11 SHEET | Yellow | 180℃ | HB | ||
| 3240 EPOXY SHEET | / | Electronic grade fiberglass cloth (7628) + epoxy resin | Yellow | 130℃ | HB |
B. Product property difference:
| Chinese name | 3240 | |||||
|---|---|---|---|---|---|---|
| IEC | EPGC201 | EPGC201 | EPGC201 | EPGC201 | EPGC201 | EPGC201 |
| NEMA | / | FR4 | G10 | FR5 | G11 | / |
| Products Property | ||||||
| EPGC201 | Higher mechanical and electrical properties, better heat resistance, moisture resistance products. | |||||
| EPGC202 | Performance similar to EPGC201, flame retardation increased to UL F-V0 level. | |||||
| EPGC203 | Pormance similar to EPGC201, improved heat resistance, high mechanical strength at high temperature, excellent electrical and anti-static properties. | |||||
| EPGC204 | Performance is similar to EPGC203, and the flame retardancy is improved to UL F-V0. | |||||
| EPGC306 | Performance similar to EPGC203, improved the resistance to electric trace. | |||||
| EPGC308 | Performance similar to EPGC203, improved heat resistance, mechanical stability at high temperature. | |||||
Industry Application

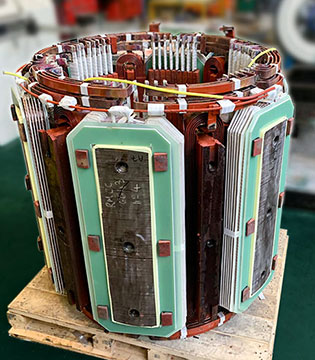

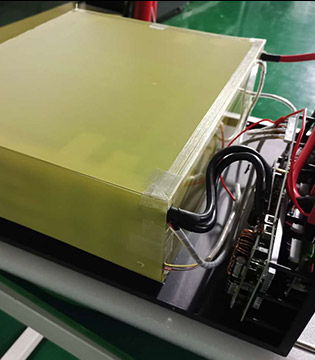

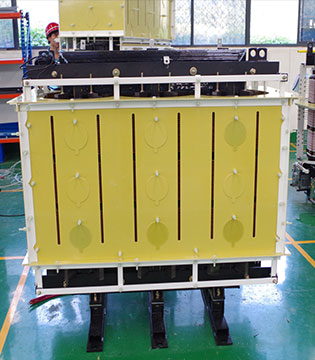

Transformer/Motor/Lithium battery of electric cars/Epoxy lapping
carrier

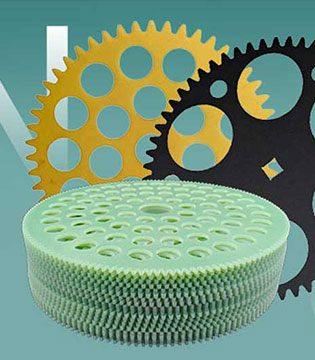

Printed circuit boards/Insulators for electromechanical equipment/ Fixtures/High-strength
composite parts
Reliable service
Full service, more assured cooperation
Pre-sale service
We're open for online consultation 24/7. To provide technical consultation and support of electrical insulation materials like FR4 sheet material according to the customers’ need.
In-sale service
To communicate with customers fully and provide customers with cost-effective products and the most suitable technical solutions.
After-sale service
To follow up the delivery and use of product promptly to guarantee the product quality.
Henan Zhongtian Electric Equipments Group Co., Ltd, founded in 1958, was once a direct enterprise under the Ministry of machinery of the people's Republic of China and one of the core enterprises in the production of national electrical equipment and insulation equipment.
At present, our company has five production and manufacturing bases, ten professional business units, and 32 permanent offices in China and around the world. It covers a total area of more than 700 mu, with 1700 employees and 68 patents.
Production workshop
Take you to visit our factory, visits online

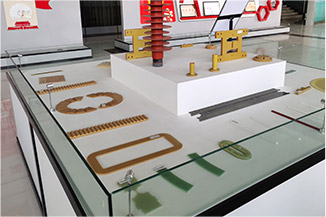

Product showcase

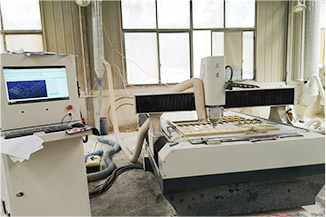

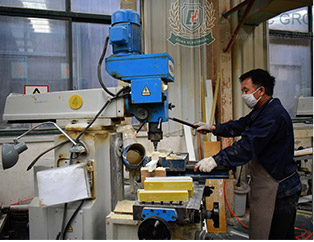

Customized processing area

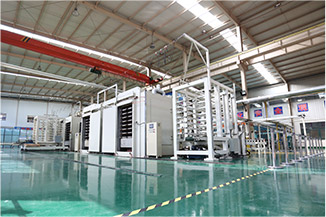

A corner of the factory workshop

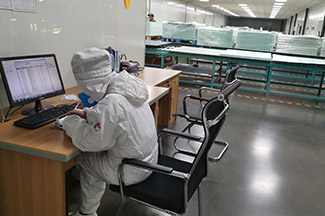

Laboratory testing

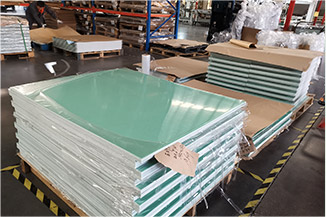

FR4 plate warehouse

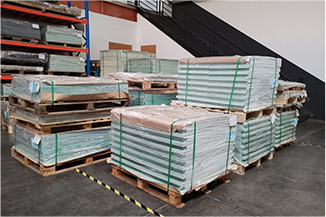

A corner of the packing area

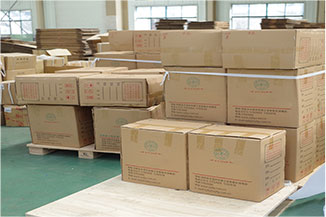

Packing is complete, ready to delivery
Loading and transporting to customs
Complete certificates
Safe and reliable quality assurance
FR4-SGS-Test report
Test report
UL certification
Certification of environment management system
Certification of quality management system
Certification of occupational health management system
