DRY TYPE TRANSFORMER

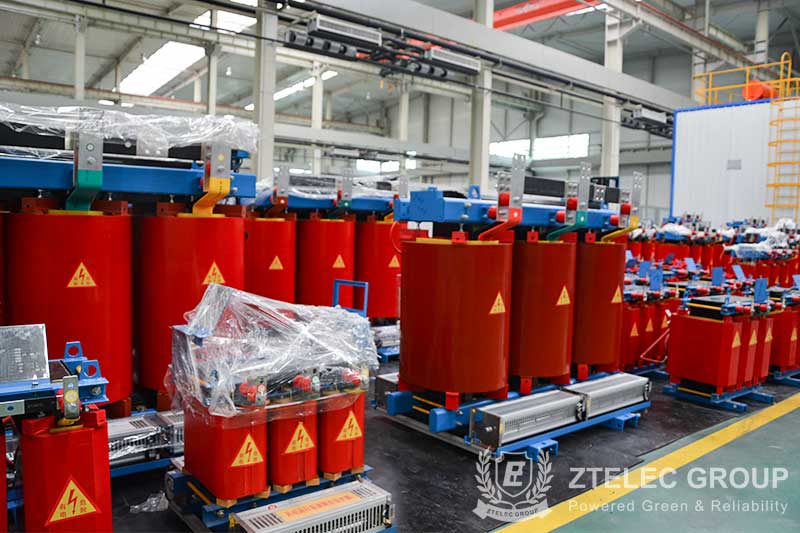

Epoxy Resin Cast Dry-Type Distribution Transformer

The epoxy resin cast dry-type distribution transformer from ZTelec Group is flame-retardant, fire-proof, explosion-proof, maintenance-free and pollution-free.

contact info

product description

Feature of Epoxy Resin Cast Dry-Type Distribution Transformer

This series of thin-insulation dry-type distribution transformer with fillers whose winding is encapsulated by epoxy resin are flame-retardant,fire-proof, explosion-proof, maintenance-free, pollution-free, small in size, and can be directly installed at load center. Meanwhile, because of their scientific and reasonable design and casting system, they have the features of low partial discharge, low noise and good heat dissipation, as well as can be operated under 140% of rated load in the condition of forced air cooling. Transformers are equipped with intelligent temperature controller to conduct centralized monitoring and control on them.

Technical Requirement of Epoxy Resin Cast Dry-Type Distribution Transformer

Environment: -25℃~40℃

Altitude(m): 100 meters or less

Insulation Class: F Class

Frequency(Hz): 50

Tap Range: ±5%、±2*2.5%

Voltage Regulating Mode: No-load Voltage Regulating

Cooling Type: AN/FN

Technical Parameter of Epoxy Resin Cast Dry-Type Distribution Transformer

Executive Standard: IEC60076 & National Standard

HV:11/10.5/10/6.6/6.3/6  LV:0.4/0.415
Capacity Connection Group No-Load Loss W On-Load Loss
W
No-Load Current
%
Short-Circuit Impedance
%
30 Yyn0
Dyn11
190 710 2 4
50 270 1000 2 4
80 370 1380 1.5 4
100 400 1570 1.5 4
160 540 2130 1.3 4
200 620 2530 1.1 4
250 720 2760 11 4
315 880 3470 1 4
400 980 3990 1 4
500 1160 4880 1 4
630 1340 5880 0.85 4
800 1520 6960 0.85 6
1000 1770 8130 0.85 6
1250 2090 9690 0.85 6
1600 2450 11700 0.85 6
2000 3050 14400 0.7 6
2500 3600 17100 0.7 6
