DRY TYPE TRANSFORMER

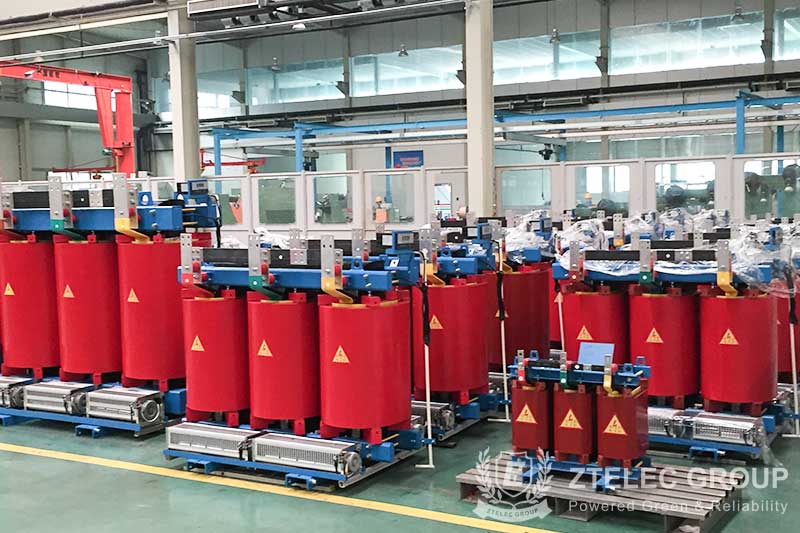

Amorphous Alloy Resin Cast Dry-Type Transformer

Three phase dry type step down/up transformer is featured by fine structure, low noise, small loss and stable performance, etc., and it is sold well in power grid, steel, chemical industry and other departments.

contact info

product description

Feature of Amorphous Alloy Resin Cast Dry-Type Transformer

The iron core of amorphous alloy transformers is made of amorphous alloy. Amorphous alloy materials contains metal atoms in a disordered amorphous state whose loss is lower than that of silicon steel core, thus having the effect of high efficiency and energy saving. The area enclosed by the hysteresis loop of the amorphous alloy is much smaller than that of the cold rolled silicon steel sheet, so the hysteresis loss of the amorphous alloy is much smaller than that of the cold rolled silicon steel sheet, besides, its core loss is very low, even 70% lower than that of conventional silicon steel sheet. Due to low loss, amorphous alloy transformers generate less heat and lower temperature rise, and can be operated in a stable state, which have become an ideal transformer of low-loss and energy-saving.

Dry-Type Transformer

Technical Requirement of Amorphous Alloy Resin Cast Dry-Type Transformer

Environment: -25℃~40℃

Altitude(m): 100 meters or less

Insulation Class: F Class

Frequency(Hz): 50

Tap Range: ±5%、±2*2.5%

Voltage Regulating Mode: No-load Voltage Regulating

Cooling Type: AN/FN

Technical Parameter of Amorphous Alloy Resin Cast Dry-Type Transformer

Executive Standard: IEC60076 & National Standard

HV:11/10.5/10/6.6/6.3/6   LV:0.4/0.415
Capacity Connection Group No-Load Loss W On-Load Loss
W
No-Load Current
%
Short-Circuit Impedance
%
30 Yyn0
Dyn11
190 710 2 4
50 270 1000 2 4
80 370 1380 1.5 4
100 400 1570 1.5 4
160 540 2130 1.3 4
200 620 2530 1.1 4
250 720 2760 11 4
315 880 3470 1 4
400 980 3990 1 4
500 1160 4880 1 4
630 1340 5880 0.85 4
800 1520 6960 0.85 6
1000 1770 8130 0.85 6
1250 2090 9690 0.85 6
1600 2450 11700 0.85 6
2000 3050 14400 0.7 6
2500 3600 17100 0.7 6
