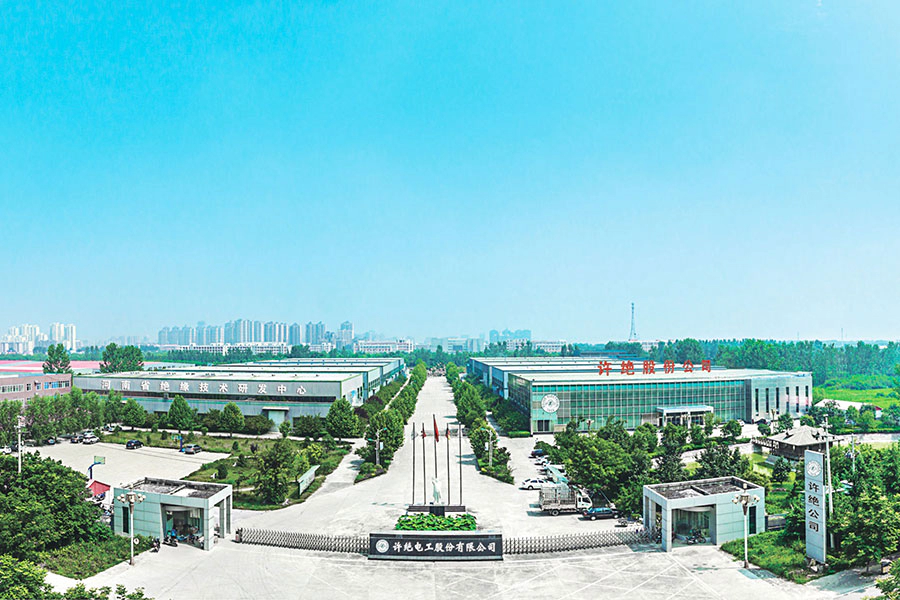

Henan Zhongtian Electric Equipments Group Co., Ltd, founded in 1958, was once a direct enterprise under the Ministry of machinery of the people's Republic of China and one of the core enterprises in the production of national electrical equipment and insulation equipment.

At present, our company has five production and manufacturing bases, ten professional business units, and 32 permanent offices in China and around the world. It covers a total area of more than 700 mu, with 1700 employees and 68 patents.

Free Website Template by Free-Template.co

Factory Direct Sale

We send goods directly from our factory without middlemen to earn the profits.

Excellent Quality

Our first priority is to guarantee quality since our establishment in 1956.

Customized Service

We can offer processed products according to the drawings you provide.

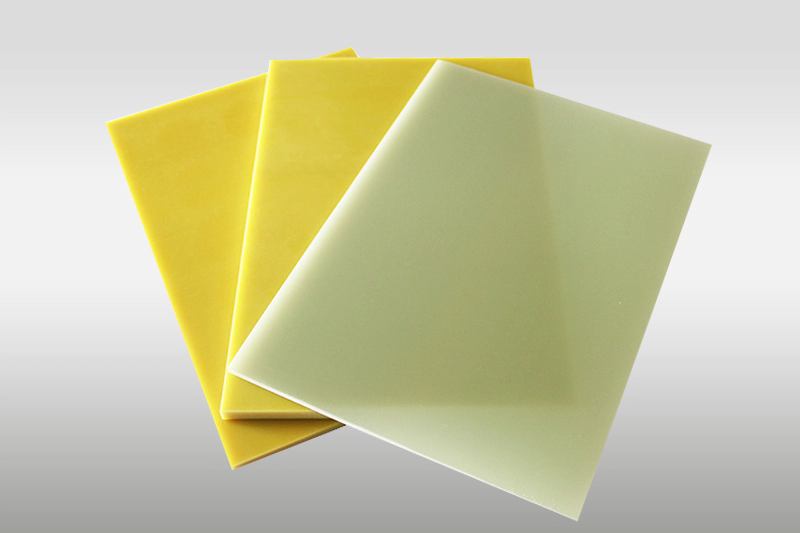

Epoxy Sheet used in Lithium-ion Battery

Epoxy glass fiber laminated sheet is made of non alkali fiberglass cloth and epoxy resin and phenolic resin.

good heat and moisture resistance
strong mechanical processing property
Suitable for lithium battery packaging

Our Products

FR4 epoxy board is actually a laminate sheet. There are many types of epoxy sheets, do you know how to distinguish them?

Epoxy Sheet Basic parameters difference:

Product name	Origin of the name	Material composition	Colour	Temperature resistance	Flame retardant
FR4	FR-4 is a code name for the grade of flame resistant material, which means that the resin material must be able to extinguish itself after combustion	Electronic grade fiberglass cloth (7628) + epoxy resin	White (natural), aqua green, black, yellow	130℃	UL94-V0
G10 SHEET	"G" stands for glass fiber and "10" stands for 10% of the glass fiber		Aqua, green	155℃	HB
G11 SHEET			Yellow	180℃	HB
3240 EPOXY SHEET	/	Electronic grade fiberglass cloth (7628) + epoxy resin	Yellow	130℃	HB

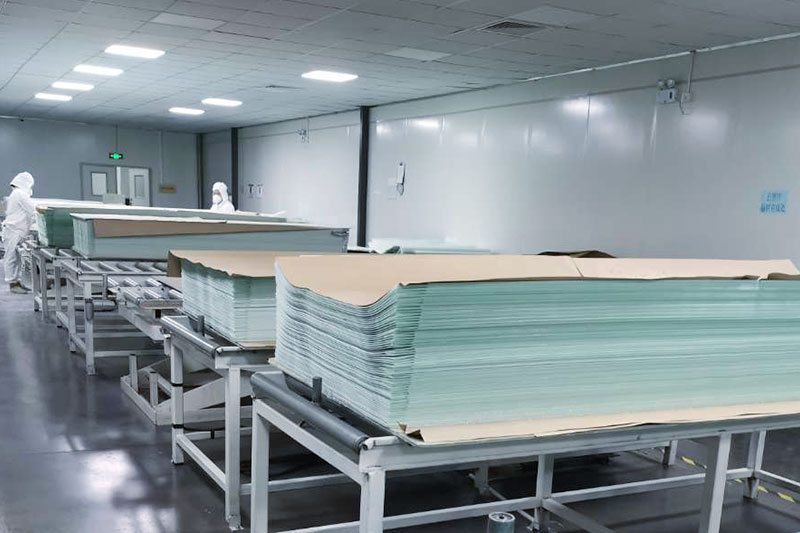

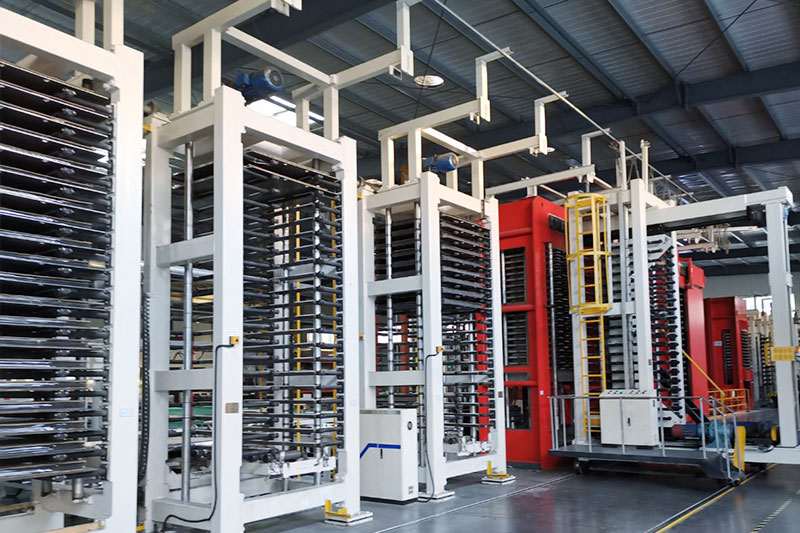

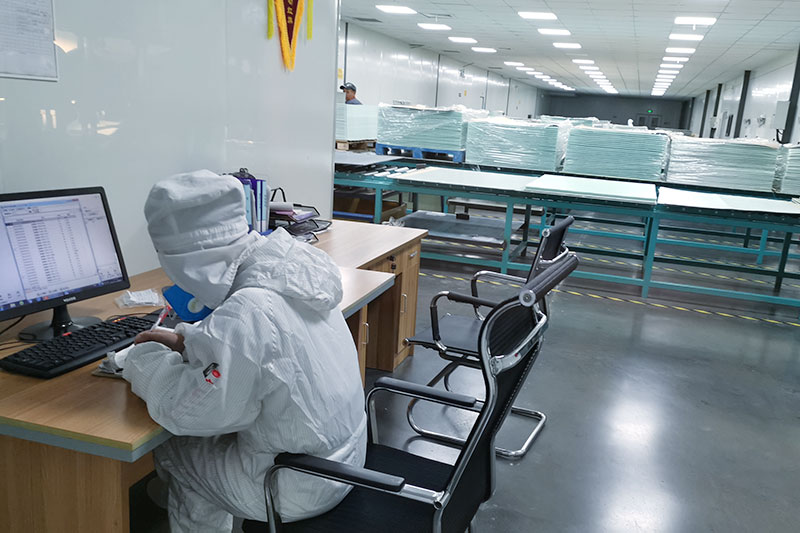

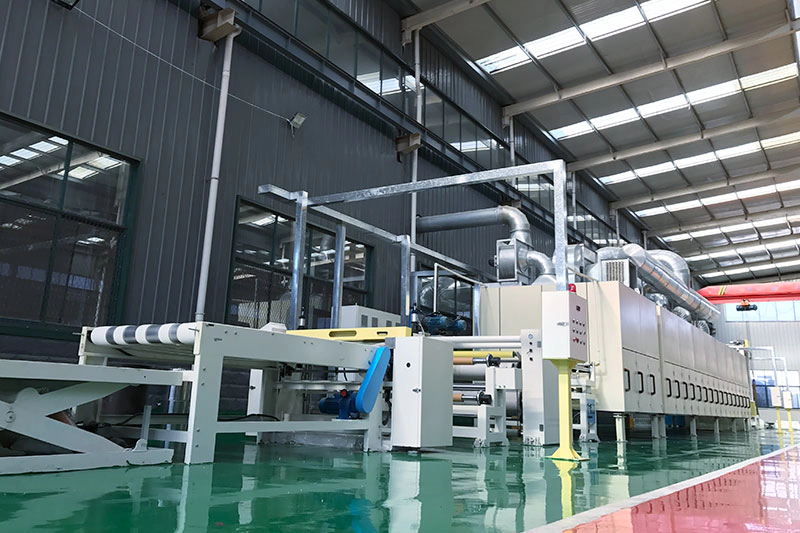

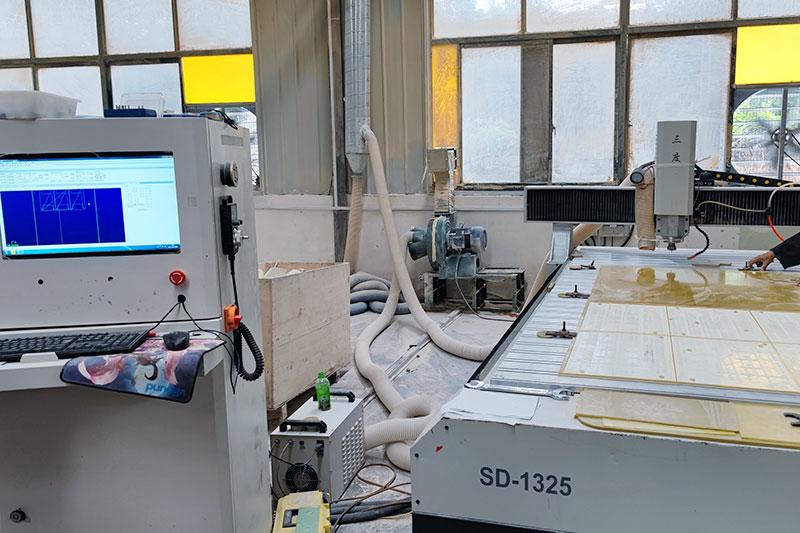

Production Workshop

How To Use

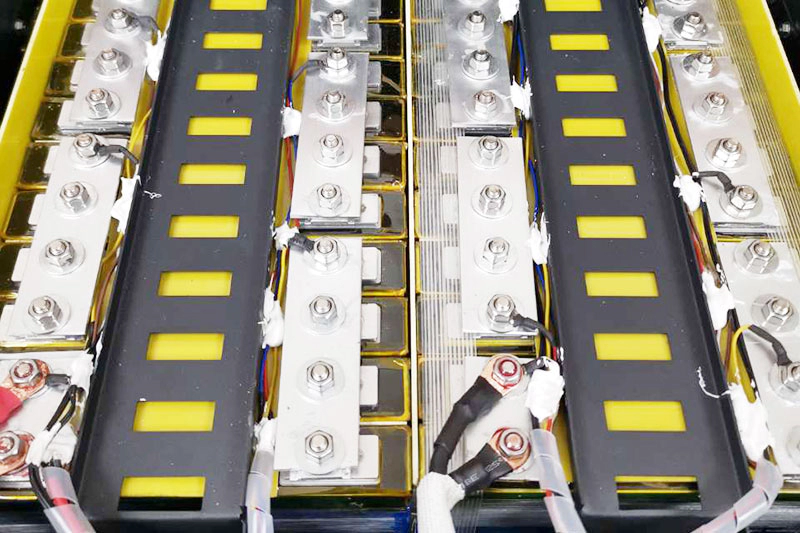

The Assembly Process of Lithium-ion Battery

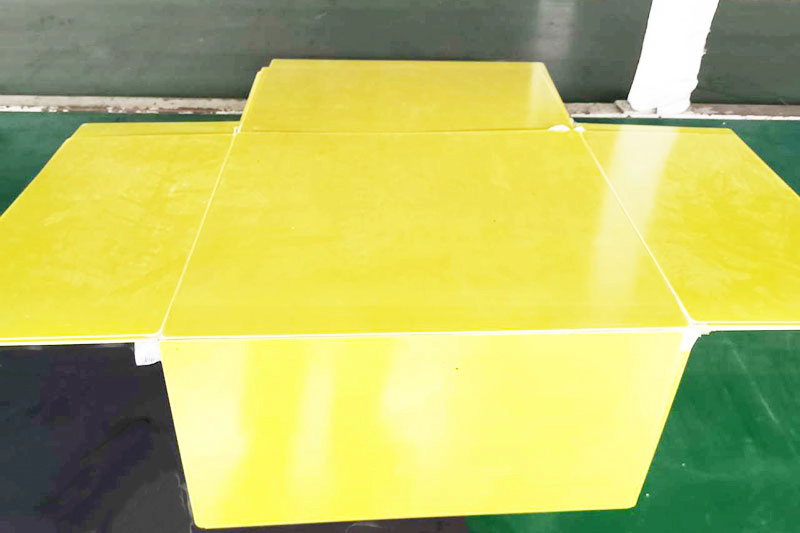

01. Cut the insulating board

According to the size of the hole, calculate the distance and cut the insulating board.

02. Connect and weld the wires

Connecting the voltage collection wire, use the insulating silicone to fix the battery packs again.

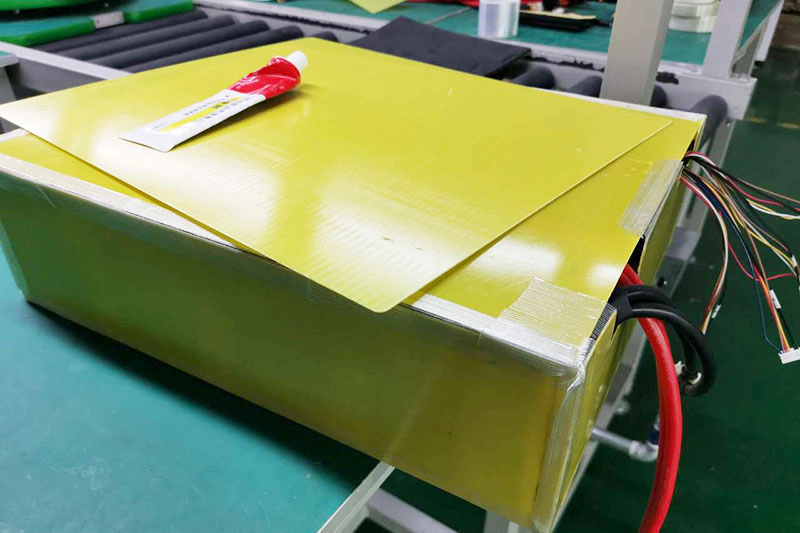

03. Fix the battery packs as a whole

Using the insulating plates as the outer casing instead of steel plates is to guarantee the well combination of the battery bells.

Our Services

Pre-sale service

To provide technical consultation and support of products according to the customers’ need.

In-sale service

To communicate with customers fully and provide customers with cost-effective products and the most suitable technical solutions.

After-sale service

To follow up the installation and use of product promptly to guarantee the product quality.

Happy Customers

“The delivery is so fast; Place the order, receive the goods, the whole process only takes me 7 days. It’s amazing! I have never thought that it will be so fast!”

“The delivery is so fast; Place the order, receive the goods, the whole process only takes me 7 days. It’s amazing! I have never thought that it will be so fast!”

Frequently Ask Questions

How long is your lead time?

Within 5-7 working days after the receipt of down payment.

What are the regular specifics of 3240 epoxy laminated sheets?

Regular thickness: 0.5~80mm; L*W: 1020*2020/1000*2000 We can cut to the size you require.

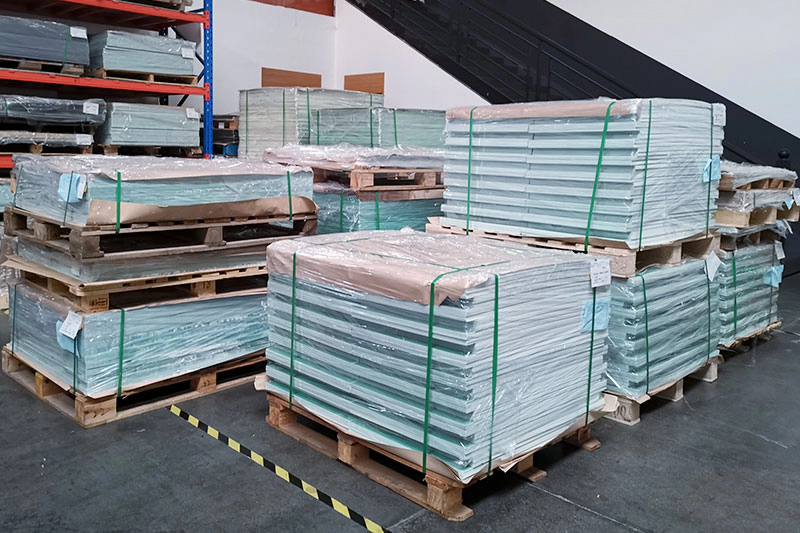

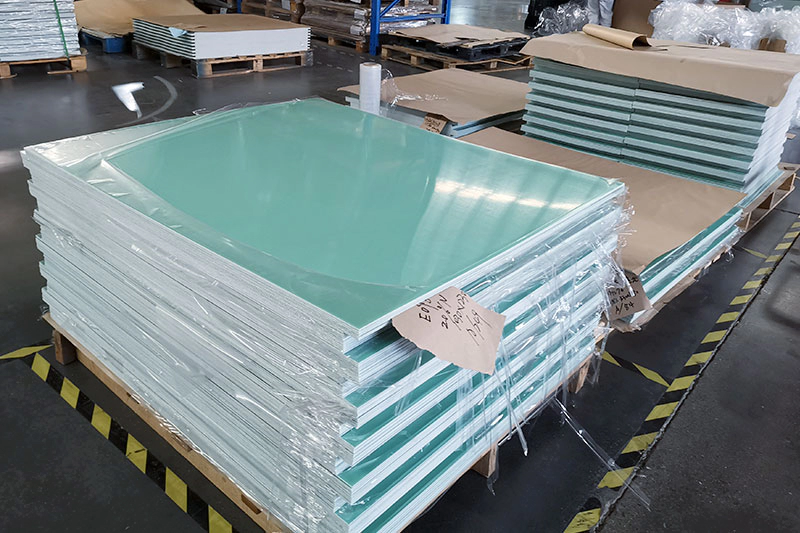

How do you pack your products?

We use the standard export waterproof packaging.

What are the regular specifics of FR4, G10, and G11?

Regular thickness: 0.5~80mm; L*W: 1020*1220/1020*2040/1220*2040/1220*2440, Other size is available at your request.

Cases

INSULATION PAPER FOR MOTOR WINDING MANUFACTURERS IN INDIA

Dec 11, 2020• Cases

The main purpose of Indian customer visit is to understand the strength of ZTelec Group, as well as the product line of insulation paper for motor winding manufacturers and discuss the future cooperation.

G11 EPOXY SHEET SUPPLIER IN MUMBAI, INDIA

Oct 30, 2020• Cases

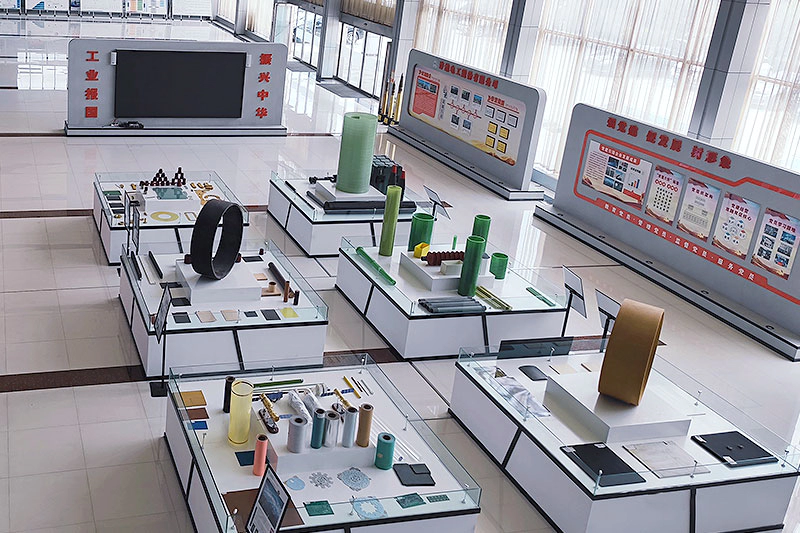

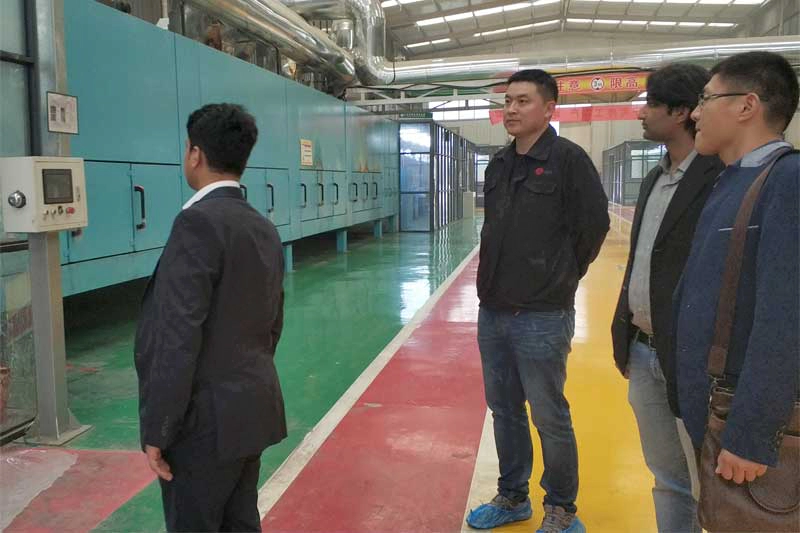

Firstly, Indian customers visited our G11 glass epoxy sheet exhibition hall, production workshop, lamination workshop and testing room, etc.
