In large-scale electrolysis industries such as metallurgy and chlor-alkali chemical production, the stability and quality of power supply directly determine the cost efficiency and product quality. The Metallurgical Electrolysis Dedicated Phase-Shifting Rectifier Dry-Type Transformer, with its advanced design and outstanding performance, has become the preferred power supply solution for modern high-efficiency electrolysis plants. This article explores the features, benefits, and applications of this essential piece of equipment.

What Is a Phase-Shifting Rectifier Dry-Type Transformer?

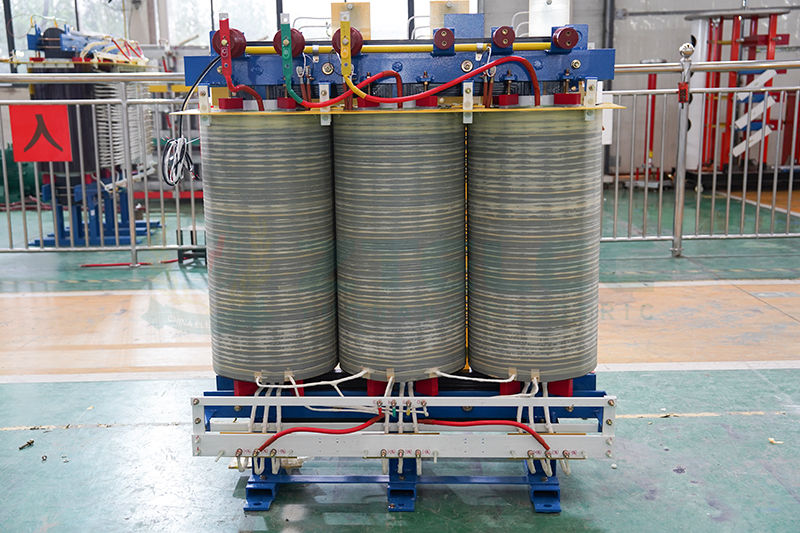

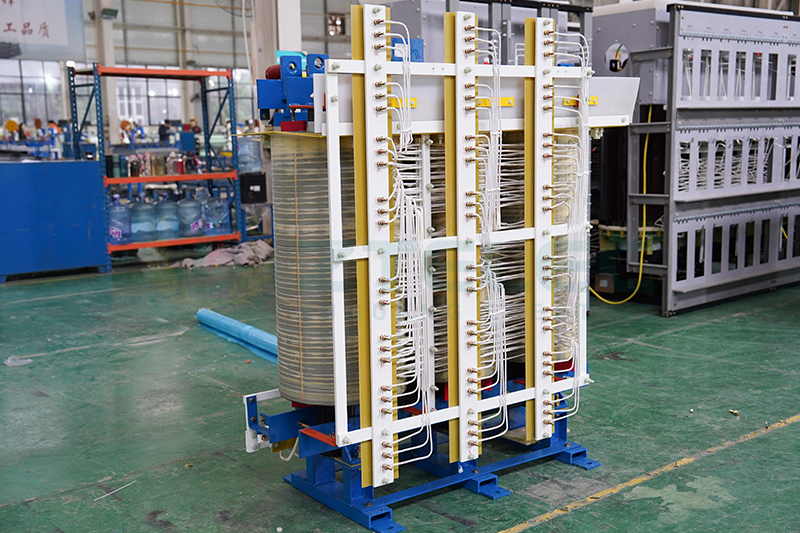

A phase-shifting rectifier dry-type transformer integrates phase-shifting technology with a traditional rectifier transformer. It is a dry-type transformer, meaning its windings and core are cooled by natural or forced air circulation, eliminating the need for oil. This design makes it fireproof, explosion-proof, environmentally friendly, and maintenance-free, perfectly suited for indoor and high-safety applications.

The phase-shifting function is the key technology that allows the transformer to generate multiple AC power supplies with different phases through specialized winding designs. After rectification, these are converted into stable and smooth DC power to feed the electrolytic cells.

Why Electrolysis Requires Phase-Shifting Rectifier Transformers

In processes such as the production of aluminum, zinc, copper, chlorine, and hydrogen, large quantities of high-power direct current (DC) are essential. Direct rectification of AC without phase-shifting creates strong harmonic currents that can:

- Distort grid voltage and affect the operation of other equipment.
- Increase transformer and line losses, raising power consumption.
- Cause relay protection malfunctions, leading to production risks.

The phase-shifting rectifier transformer effectively suppresses these harmonics through a “phase cancellation” effect, reducing characteristic harmonics such as the 5th, 7th, 11th, and 13th. It keeps Total Harmonic Distortion (THD) below 5%, meeting the most stringent power quality standards.

Key Advantages of Metallurgical Electrolysis Phase-Shifting Rectifier Dry-Type Transformers

Excellent Harmonic Suppression: Reduces power grid pollution, helps enterprises avoid electricity penalties, and enhances overall system performance.

High Safety and Reliability: The dry-type design eliminates oil leakage and fire risks, offering flame-retardant and self-extinguishing features suitable for harsh industrial environments.

High Efficiency and Energy Savings: Low inherent losses combined with reduced harmonic losses ensure high overall energy efficiency, lowering operational costs.

Simple, Environmentally Friendly Maintenance: No oil means no regular oil checks or disposal, reducing maintenance time and environmental impact.

Strong Overload Capacity: Engineered to handle the fluctuating load characteristics of the electrolysis process, ensuring reliable and stable operation.

Compact and Flexible Installation: The smaller footprint allows installation close to electrolytic cells, minimizing DC busbar costs and space requirements.

Main Application Fields

Non-Ferrous Metallurgy: Ideal for electrolytic production of aluminum, magnesium, zinc, copper, and manganese.

Chemical Industry: Used in chlor-alkali production (chlorine, caustic soda) and hydrogen energy systems (water electrolysis).

Other Industries: Applicable wherever high-power DC supply is required, ensuring reliable and clean energy conversion.

In today’s competitive metallurgical and chemical industries, optimizing power efficiency and maintaining stable operations are critical. A phase-shifting rectifier dry-type transformer not only ensures safe and high-quality DC power for electrolysis but also contributes to energy conservation and reduced operational costs. Choosing an experienced transformer manufacturer with advanced customization capabilities guarantees stable and efficient power supply for your production process.
