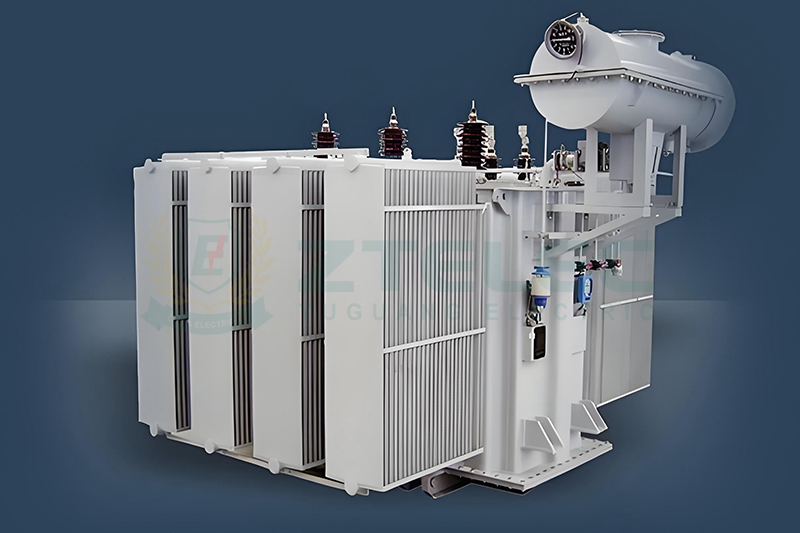

69/66 kV Three-Phase Oil-Immersed Power Transformers: Cost, Configuration, and Installation Guide

In high-voltage power transmission and distribution systems, 69/66 kV three-phase oil-immersed power transformers are essential for stable electricity supply. Widely deployed in regional power grids, industrial facilities, and renewable energy access points, these transformers convert voltage levels and ensure reliable power distribution. This guide provides a detailed cost analysis, configuration selection strategy, and step-by-step installation instructions for engineers, procurement specialists, and project managers.

Cost Analysis of 69/66 kV Oil-Immersed Transformers

Initial Procurement Costs

The primary cost components include silicon steel sheets, copper windings, insulating oil, and the oil tank, which together account for 60-70% of the total price. Transformer capacity directly influences cost, while brand and technology differences can result in European or North American models being 15-30% more expensive than Asian brands, but with higher efficiency and longer warranties.

Additional Functional Costs

Adding an On-Load Tap Changer (OLTC) increases costs by 15-25% and is suitable for grids with large voltage fluctuations. Environmentally friendly insulating oils, such as bio-based or synthetic ester oils, cost 20-40% more than mineral oils but offer superior fire resistance and meet strict environmental regulations. Higher protection ratings, such as IP56 enclosures, are essential for harsh outdoor conditions and add 5-10% to the total cost.

Long-Term Operating Costs

Energy efficiency affects operational costs, with high-efficiency transformers saving $5,000 - $15,000 annually in electricity. Average maintenance expenses are 1-2% of the purchase price, covering oil testing, bushing inspections, and cooling system upkeep. Life cycle cost (LCC) analysis shows that over 20-30 years, initial purchase accounts for 40%, energy consumption 50%, and maintenance 10% of total costs.

Configuration Selection for 69/66 kV Transformers

Rated Parameter Selection

Transformer capacity should be selected based on actual load requirements plus a 20% margin to prevent overload and improve efficiency. The voltage ratio must be clearly defined, for example 69/11.5 kV, and typical impedance voltage ranges between 6-10%, with higher values suitable for high short-circuit current scenarios.

Winding and Insulation Design

Copper windings offer higher efficiency but come at a higher cost, while aluminum windings are lighter and more budget-friendly. The insulation system should meet Class A (105°C) or higher standards, and vacuum impregnation technology is recommended to enhance reliability.

Cooling and Protection Configuration

ONAN (oil natural air natural) cooling is suitable for small to medium transformers, while ONAF (oil natural air forced) increases load capacity by 20-30%. Standard monitoring systems include oil temperature gauges and pressure relief valves, while online DGA (dissolved gas analysis) enables predictive maintenance.

Environmental and Safety Features

Sealed designs slow oil aging, suitable for high-humidity areas, and fire-resistant tanks or drain designs minimize fire risks.

Installation Guide for 69/66 kV Oil-Immersed Transformers

Preliminary Preparation

The foundation must support at least 1.5 times the transformer weight, and a maintenance space of 1.5 meters should be reserved. Avoid corrosive or dusty environments, and for outdoor installations, prevent direct sunlight and water accumulation.

Installation Steps

Use dedicated trailers and lifting tools, maintaining a tilt angle below 15° to avoid structural displacement. Install bushings, coolers, and oil conservators sequentially, ensuring clean sealing surfaces. Perform vacuum drying before oil filling, reducing moisture content below 10 ppm, and allow 24 hours before electrical tests.

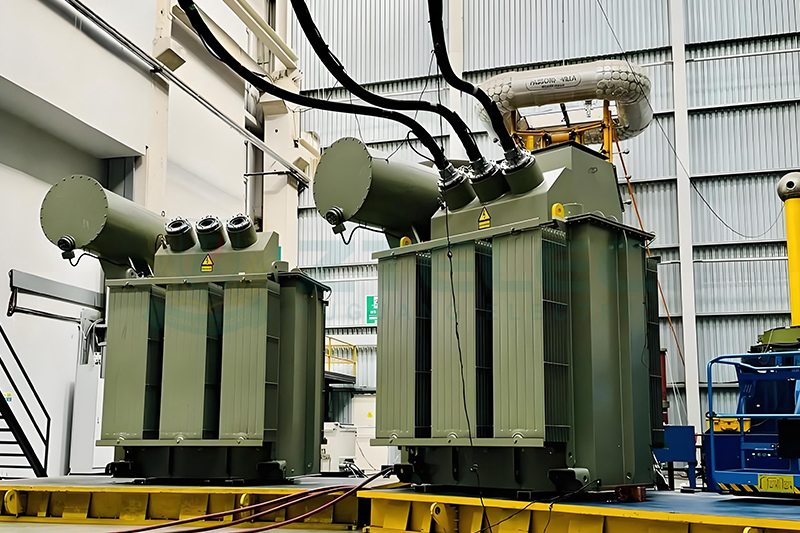

Testing and Commissioning

Routine tests include turns ratio, polarity, winding resistance, insulation resistance, and no-load loss measurements. Withstand voltage testing verifies insulation strength, including power frequency (140 kV/5 minutes) and impulse tests. Pre-commissioning checks confirm relay settings and test the cooling system for at least 2 hours.

Operation and Maintenance Recommendations

Conduct monthly oil chromatography analysis for early fault detection. Perform infrared thermography annually, winding deformation tests every five years, and a major overhaul inspection every ten years.

The selection and installation of a 69/66 kV three-phase oil-immersed power transformer requires a careful balance of cost, performance, and reliability. Proper cost analysis, thoughtful configuration selection, and standardized installation improve grid stability and minimize life cycle costs.
