Product Range:

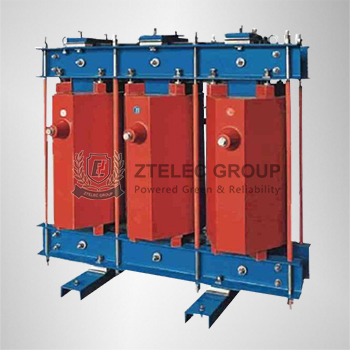

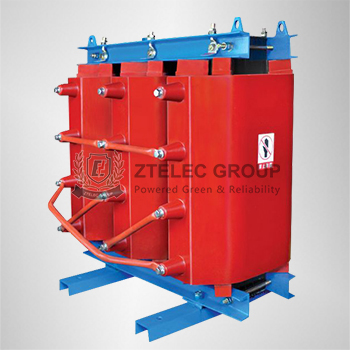

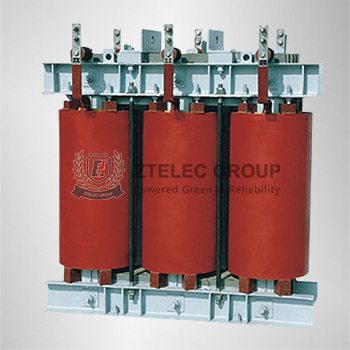

Our company can produce a variety of epoxy resin casting transformers with a voltage rating of 35kV or less and a capacity of 3150kVA or less. The variety includes SC10, SCB10 series and SC11, SCB11 series. The product is widely used in power transmission and transformation systems, such as hotels, restaurants, airports, high-rise buildings, commercial centers, residential quarters and other important places, as well as subway, smelting power plants and other harsh environments.Executive Standard
GB 1094 Electrical TransformerIEC 60076 Electrical Transformer
GB/T10228 Specification and Technical Requirements for Dry-type Power Transformers
JB/T10008 6kV~500kV Power Transformer Sound Level
GB/T7354 Partial Discharge Measurements
Features of Products
This series padding thin-insulation dry-type distributing transformer whose winding is sealed up with epoxy. Therefore the resin insulating dry-type transformer is flame-retardant. explosion-proof, free from maintenance and pollution and it is compacted and can be installed at load center. Besides, with scientific and reasonable design and coating craftwork, it has advantages of low partial discharge capacity, low noise and good heat dispersion. It can run over a long time with 140% rated load in the circumstance of cold wind. It applies intelligent temperature controller to conduct centralized monitoring and control.Dimensions:
| Type | Dimension（mm） | With Shell Size（mm） | |||||||
| a | b | c | d | h | j | A | B | H | |
| SC10-30 | 620 | 400 | 400 | 350 | 600 | 210 | / | / | / |
| SC10-50 | 650 | 400 | 400 | 350 | 740 | 220 | / | / | / |
| SC10-80 | 750 | 500 | 400 | 400 | 770 | 250 | / | / | / |
| SC10-100 | 800 | 500 | 550 | 400 | 830 | 270 | / | / | / |
| SC10-125 | 950 | 880 | 460 | 830 | 1090 | 320 | 1320 | 1120 | 1520 |
| SC10-160 | 950 | 880 | 460 | 830 | 1090 | 320 | 1320 | 1120 | 1520 |
| SC10-200 | 1050 | 900 | 550 | 850 | 1200 | 350 | 1600 | 1120 | 1520 |
| SCB10-250 | 1050 | 900 | 550 | 850 | 1200 | 350 | 1600 | 1120 | 1600 |
| SCB10-315 | 1080 | 900 | 550 | 850 | 1250 | 360 | 1600 | 1120 | 1600 |
| SCB10-400 | 1110 | 950 | 550 | 900 | 1270 | 370 | 1720 | 1200 | 1800 |
| SCB10-500 | 1130 | 950 | 660 | 900 | 1380 | 375 | 1720 | 1200 | 1800 |
| SCB10-630 | 1200 | 950 | 660 | 900 | 1450 | 400 | 1920 | 1320 | 1900 |
| SCB10-630 | 1320 | 950 | 660 | 900 | 1375 | 440 | 1920 | 1320 | 1900 |
| SCB10-800 | 1310 | 1000 | 660 | 950 | 1315 | 435 | 1920 | 1320 | 1900 |
| SCB10-1000 | 1400 | 1070 | 820 | 1020 | 1520 | 465 | 2000 | 1320 | 2200 |
| SCB10-1250 | 1440 | 1150 | 820 | 1100 | 1570 | 480 | 2120 | 1400 | 2200 |
| SCB10-1600 | 1650 | 1200 | 820 | 1070 | 1795 | 565 | 2200 | 1400 | 2300 |
| SCB10-2000 | 1800 | 1260 | 820 | 1070 | 1870 | 615 | 2300 | 1600 | 2400 |
| SCB10-2500 | 1950 | 1260 | 820 | 1070 | 2035 | 660 | 2500 | 1600 | 2400 |
Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.
Rated High Voltage: 10（11、10.5、6.6、6.3、6）kV
Rated Low Voltage: 0.4kV
Insulation Level: LI75AC35/LI0AC3
Join Groups: Dyn11 or Yyn0
Tape Range: ±2×2.5% or±5%
Technical Parameters:
| rated capacity （KVA） |
short-circuit impedance（%） |
SC(B)10 | SC(B)11 | sound level（dB） |
weight （Kg） |
||||
| No-load loss（W） |
Load loss120℃（W） | no-load current（%） |
no-load loss |
load loss | load current |
||||
| （W） | 120℃（W） | （%） | |||||||
| 30 | 4 | 190 | 710 | 2.4 | 170 | 710 | 2.4 | 44 | 220 |
| 50 | 270 | 1000 | 2.4 | 250 | 1000 | 2.4 | 44 | 320 | |
| 80 | 370 | 1380 | 1.8 | 330 | 1380 | 1.8 | 45 | 460 | |
| 100 | 400 | 1570 | 1.8 | 360 | 1570 | 1.8 | 45 | 580 | |
| 125 | 470 | 1850 | 1.6 | 420 | 1850 | 1.5 | 46 | 750 | |
| 160 | 540 | 2130 | 1.6 | 490 | 2130 | 1.4 | 46 | 780 | |
| 200 | 620 | 2530 | 1.4 | 560 | 2530 | 1.3 | 47 | 850 | |
| 250 | 720 | 2760 | 1.4 | 650 | 2760 | 1.2 | 48 | 1030 | |
| 315 | 880 | 3470 | 1.2 | 790 | 3470 | 1.1 | 48 | 1060 | |
| 400 | 980 | 3990 | 1.2 | 880 | 3990 | 1 | 49 | 1400 | |
| 500 | 1160 | 4880 | 1.2 | 1040 | 4880 | 1 | 49 | 1550 | |
| 630 | 1340 | 5880 | 1 | 1210 | 5880 | 0.9 | 49 | 1820 | |
| 630 | 6 | 1300 | 5960 | 1 | 1170 | 5960 | 0.9 | 50 | 1850 |
| 800 | 1520 | 6960 | 1 | 1370 | 6960 | 0.8 | 51 | 2150 | |
| 1000 | 1770 | 8130 | 1 | 1590 | 8130 | 0.7 | 52 | 2550 | |
| 1250 | 2090 | 9690 | 1 | 1880 | 9690 | 0.6 | 53 | 3020 | |
| 1600 | 2450 | 11730 | 1 | 2210 | 11730 | 0.6 | 54 | 4500 | |
| 2000 | 3050 | 14450 | 0.8 | 2750 | 14450 | 0.5 | 55 | 5300 | |
| 2500 | 3600 | 17170 | 0.8 | 3240 | 17170 | 0.4 | 56 | 6200 | |
Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.
