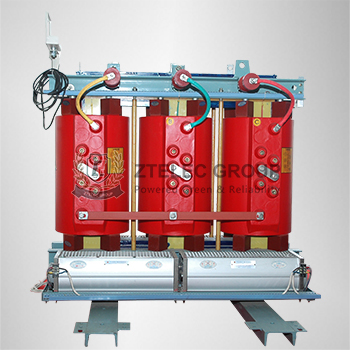

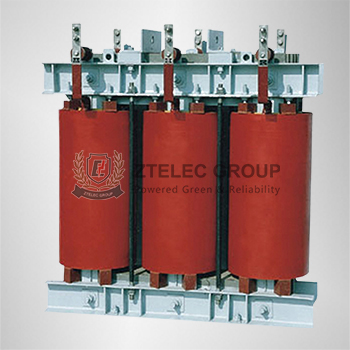

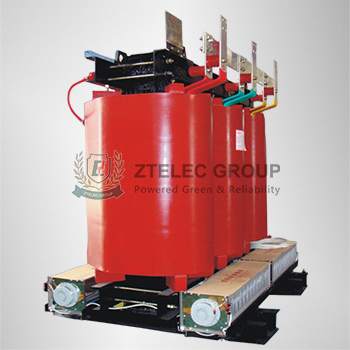

SC(B)10-30~2500/35 Series of Epoxy Resin Cast Dry-Type Distribution Transformer

power transformer, distribution transformer,dry transformer
power transformer, distribution transformer,dry transformer
power transformer, distribution transformer,dry transformer
send email
chat online
leave message

Product Range:

Our company can produce a variety of epoxy resin casting transformers with a voltage rating of 35kV or less and a capacity of 3150kVA or less. The variety includes SC10, SCB10 series and SC11, SCB11 series. The product is widely used in power transmission and transformation systems, such as hotels, restaurants, airports, high-rise buildings, commercial centers, residential quarters and other important places, as well as subway, smelting power plants and other harsh environments.

Executive Standard

GB 1094      Electrical Transformer
IEC 60076     Electrical Transformer
GB/T10228 Specification and Technical Requirements for Dry-type Power Transformers
JB/T10008     6kV~500kV Power Transformer Sound Level
GB/T7354     Partial Discharge Measurements


Features of Products:

The series of dry-type transformers is used to directly reduce 35kV power supply to 400V distribution power supply for users and reduce 10kV transmission and transformation links. It significantly reduces operating costs, reduces multi-level substation engineering construction and have significant social benefits. By optimizing the structure of the high-voltage coil, the product improves the distribution of voltage and capacitance between layers, greatly improves the impact resistance of the product against atmospheric overvoltage and also improves the electric field distribution, which further reduces the volume of product.

Technical Parameters:

rated
capacity
(KVA)
voltage group Low-voltage(KV) joint
 groups
short-circuit
impedance(%)
no-load
loss(W)
load
loss
120℃(W)
load
current
(%)
High-voltage(KV) tape range
30 33

35

38.5
±2×2.5% 0.4 Dyn11
Or
Yyn0
6 380 1210 3.2
50 450 1425 2.8
63 520 1550 2.6
80 580 1800 2.5
100 630 2090 2.4
125 710 2450 2.2
160 792 2812 1.8
200 882 3325 1.8
250 990 3800 1.6
315 1179 4512 1.6
400 1377 5415 1.4
500 1620 6650 1.4
630 1863 7695 1.2
800 2160 9120 1.2
1000 2430 10450 1
1250 2835 12730 0.9
1600 3150 15485 0.9
2000 3825 18240 0.9
2500 4455 21850 0.9

Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.
