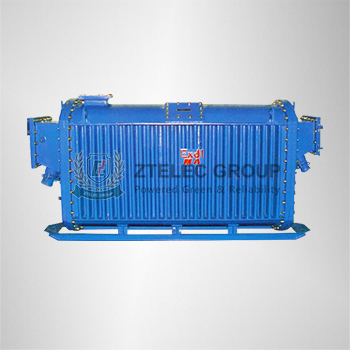

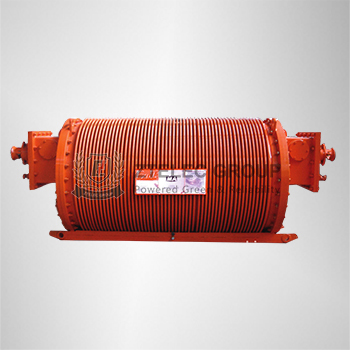

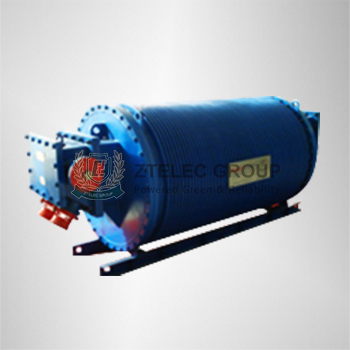

Anti-explosion Transformer KBSGZY-T-100~4000KVA

Anti-explosion,power transformer,dry  transformer,electrical
Anti-explosion,power transformer,dry  transformer,electrical
Anti-explosion,power transformer,dry  transformer,electrical
send email
chat online
leave message

Features:
With the insulation grade of Class H and Class C, KBSG mining flameproof dry type transformer has excellent thermal stability. AN/AN cooling method enables it to be used in environment filled with methane gas mixture and coal dust, as well as explosion hazardous places such as mines and tunnels. It can also be used in gas or steam condition that falls short of causing metal corrosion or insulation damage. Running in ungrounded three-phase electrical system, the rated frequency should be 50Hz, and the primary voltage is 6kV or 10 kV, thus it will provide power to different power equipment and power devices.

Parameters:

10KV Grade level Anti-explosion Transformer KBSGZY-T-100~4000KVA
Rated Capacity
(KVA)
Voltage Combination Connection
 Method
Loss(KW) No Load
 Current (%)
Impendence
 Voltage(%)
Weight
(Kg)
Dimension(mm)
(L×W×H)
HV(KV) LV(KV) No Load Load
(145℃)
100 10±5% 0.693/0.4
1.2/0.693
Yy0
(Yd11)
560 1050 2.5  4.0  1895 2680×1010×1250
200 950 1800 2.0  4.0  2225 2300×1010×1250
315 1300 2500 1.8  4.0  2840 2870×1010×1250
400 1500 3000 1.8  4.0  3050 2940×1070×1320
500 1750 3500 1.5  4.0  3786 3010×1130×1380
630 2000 4100 1.5  4.0  4310 3070×1230×1480
800 1.2/0.693
3.45
Yy0
(Yd11)
Yyn0
2300 5100 1.2  4.0  4546 3070×1230×1480
1000 2600 6100 1.2  4.5  6450 3170×1310×1560
1250 3100 7400 1.0  4.5  5910 3350×1350×1600
1600 3800 8500 1.0  5.0  8430 3620×1340×1750
2000 3.45 Yyn0 4500 9700 0.7  5.0  11030 3620×1340×1750
2500 5200 10800 0.7  5.5  14080 3850×1420×1820
3150 6100 12800 0.7  5.5  18800 4160×1420×1820
4000 7000 15000 0.7  6.0  21600 4210×1420×1820

6KV Grade level Anti-explosion Transformer KBSGZY-T-100~4000KVA
Rated
Capacity
(KVA)
Voltage Combination Connection
 Method
Loss(KW) No Load
 Current (%)
Impendence
 Voltage(%)
Weight
(Kg)
Dimension(mm)
(L×W×H)
HV(KV) LV(KV) No Load Load
(145℃)
100 6±5% 0.693/0.4
1.2/0.693
Yy0
(Yd11)
520 920 2.5  4.0  1480 2840×910×1150
200 820 1550 2.0  4.0  1980 2840×910×1150
315 1100 2150 1.8  4.0  2715 2860×1010×1250
400 1300 2600 1.8  4.0  2950 2888×1070×1320
500 1500 3100 1.5  4.0  3430 2970×1070×1320
630 1800 3680 1.5  4.0  3935 3008×1130×1380
800 1.2/0.693
3.45
Yy0
(Yd11)
Yyn0
2050 4500 1.0  4.0  4225 3040×1230×1480
1000 2350 5400 1.0  4.0  5015 3180×1310×1560
1250 2750 6500 1.0  4.0  5700 3200×1350×1600
1600 3350 8000 0.8  4.0  8480 3590×1340×1750
2000 3.45 Yyn0 3800 9500 0.6  4.5  9180 3590×1340×1750
2500 4500 10600 0.6  5.0  13080 3820×1420×1820
3150 5300 12500 0.6  5.5  16500 4130×1420×1820
4000 6100 14000 0.6  6.0  19060 4210×1420×1820
