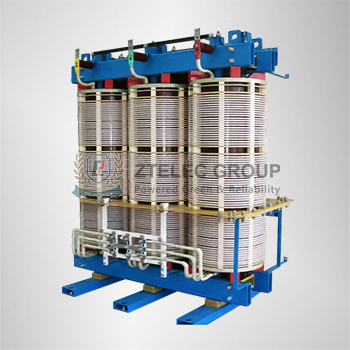

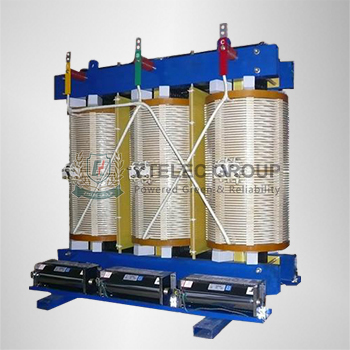

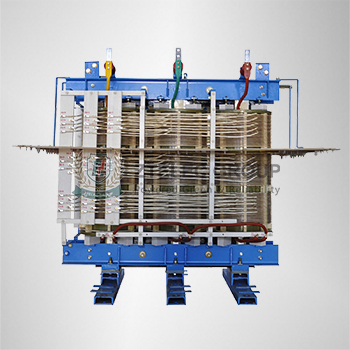

Phase-shifting rectifier transformer

Phase-shifting, dry  transformer, power transformer,electrical
Phase-shifting, dry  transformer, power transformer,electrical
Phase-shifting, dry  transformer, power transformer,electrical
send email
chat online
leave message

Features of Products

  1. The core material is made of high-quality cold-rolled silicon steel sheet carefully laminated in full 45diagonally;
  2. Insulation materials of transformer are H level with the 20-year service life time the same as transformers;
  3. The insulation materials on wires are with H class insulation.And the products have been painted with 3-proofings lacquer and with curing process of high temperature which all can strengthen the anti-short circuit ability;
  4. The case of the transformer is made of quality steel sheet The wiring style is bottom in/ bottom out;
  5. The cable holes are on the base of the transformer with cable-fixation device.

Standers

IEC Standards
IEC 60076-1~5      Electrical Transformer
IEC 61378-1: 1997   Converter Transformer
GB or JB Standards
JB/T 8636-1997     Power Converter Transformer
GB1094.11-2007    Dry-type Power Transformer
GB1094.1-1996     Power Transformer:General
GB1094.2-1996     Temperature rise

Normal Operating Condition

Normal Operating Condition
Max.Temperature:+40℃
Max.Average Daily Temperature:+30℃
Max.Average Annual Temperature:+20℃
Min.Temperature:-30℃
Altitude:≤1000m
Installation:indoor,non-corrosive facturs
Waveform of power voltage is close to sine wave

Application

Apply to electricy,petroleum,chemical industry,metallurgy,municipal water supply, waste water treatment, extile, paper, pharmaceuticals, coal, cement.

Dimensions:

Type Rated Capacity Outline Dimension Total weight
ZT(P)SFG(H)-315/6 315 1300×880×1300 1120
ZT(P)SFG(H)-400/6 400 1300×880×1320 1260
ZT(P)SFG(H)-500/6 500 1300×880×1350 1380
ZT(P)SFG(H)-600/6 600 1320×900×1390 1560
ZT(P)SFG(H)-700/6 700 1330×900×1420 1670
ZT(P)SFG(H)-800/6 800 1350×920×1450 1780
ZT(P)SFG(H)-900/6 900 1370×920×1490 1930
ZT(P)SFG(H)-1000/6 1000 1390×960×1530 2010
ZT(P)SFG(H)-1100/6 1100 1420×960×1560 2250
ZT(P)SFG(H)-1250/6 1250 1440×960×1580 2490
ZT(P)SFG(H)-1400/6 1400 1460×1000×1630 2620
ZT(P)SFG(H)-1600/6 1600 1480×1000×1640 2820
ZT(P)SFG(H)-1750/6 1750 1550×1020×1650 3110
ZT(P)SFG(H)-2000/6 2000 1600×1020×1680 3360
ZT(P)SFG(H)-2250/6 2250 1660×1020×1710 3760
ZT(P)SFG(H)-2500/6 2500 1710×1020×1770 4280
ZT(P)SFG(H)-2700/6 2700 1720×1080×1820 4480
ZT(P)SFG(H)-3000/6 3000 1750×1080×1870 4790
ZT(P)SFG(H)-3150/6 3150 1780×1140×1910 4930
ZT(P)SFG(H)-3500/6 3500 1820×1140×1950 5490
ZT(P)SFG(H)-4000/6 4000 1880×1180×1990 5800
ZT(P)SFG(H)-5000/6 5000 1980×1220×2080 6500

Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.
