Product Range:

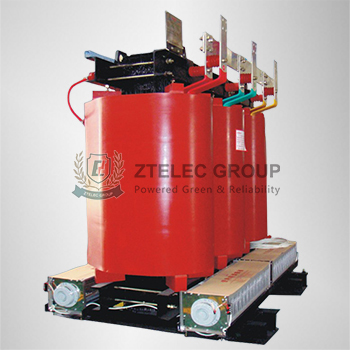

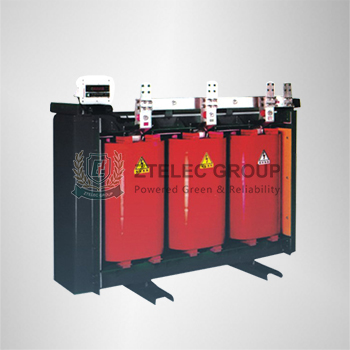

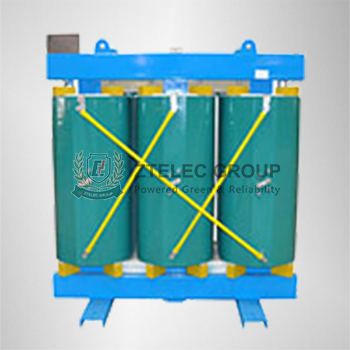

Our company can produce a variety of epoxy resin casting transformers with a voltage rating of 35kV or less and a capacity of 3150kVA or less. The variety includes SC10, SCB10 series and SC11, SCB11 series. The product is widely used in power transmission and transformation systems, such as hotels, restaurants, airports, high-rise buildings, commercial centers, residential quarters and other important places, as well as subway, smelting power plants and other harsh environments.Executive Standard
GB 1094 Electrical TransformerIEC 60076 Electrical Transformer
GB/T10228 Specification and Technical Requirements for Dry-type Power Transformers
JB/T10008 6kV~500kV Power Transformer Sound Level
GB/T7354 Partial Discharge Measurements
Features of Products:
The iron core of amorphous alloy transformers are made of amorphous alloy. Amorphous alloy materials have a disordered amorphous state of the metal atoms and a lower loss than the silicon steel core, achieving the high energy efficiency. The area enclosed by the hysteresis loop of the amorphous alloy is much smaller than that of the cold rolled steel sheet, so the hysteresis loss of the amorphous alloy is much smaller than that of the cold rolled silicon steel sheet and the core loss is very low if compared with the conventional silicon steel sheet iron. The no-load loss of the core transformer is about 70% lower, which is an ideal low-loss energy-saving transformer. Due to low loss, amorphous alloy transformers generate less heat, have lower temperature rise, and have very stable performance.Technical Parameters:
rated capacity (KVA) |
voltage group | connection method |
loss(W) | No-load current (%) |
impedance voltage(%) |
weight (Kg) |
outline dimension (mm) (L×B×H) |
gauge | ||
High-voltage(KV) | Low-voltage(KV) | no-Load | load 120℃ |
vertical/ horizontal(mm) |
||||||
100 | 11 10.5 10 6.3 6 |
0.4 | Dyn11 | 130 | 1570 | 1.2 | 4 | 890 | 950×600×960 | 550×550 |
160 | 170 | 2130 | 1.1 | 1170 | 1220×600×1060 | 550×550 | ||||
200 | 200 | 2530 | 1 | 1400 | 1270×710×1160 | 660×660 | ||||
250 | 230 | 2760 | 1 | 1560 | 1350×760×1240 | 660×660 | ||||
315 | 280 | 3470 | 0.9 | 1770 | 1370×870×1360 | 820×820 | ||||
400 | 310 | 3990 | 0.8 | 2180 | 1460×870×1360 | 820×820 | ||||
500 | 360 | 4880 | 0.8 | 2440 | 1490×870×1430 | 820×820 | ||||
630 | 420 | 5880 | 0.7 | 2850 | 1760×1120×1490 | 1070×1070 | ||||
630 | 410 | 5960 | 0.7 | 6 | 3015 | 1710×970×1450 | 1070×1070 | |||
800 | 480 | 6960 | 0.7 | 3430 | 1850×1120×1600 | 1070×1070 | ||||
1000 | 550 | 8130 | 0.6 | 4050 | 1900×1120×1170 | 1070×1070 | ||||
1250 | 650 | 9690 | 0.6 | 4690 | 2030×1120×1880 | 1070×1070 | ||||
1600 | 760 | 11730 | 0.6 | 5610 | 2120×1120×1970 | 1070×1070 | ||||
2000 | 1000 | 14450 | 0.5 | 5820 | 2120×1120×1990 | 1070×1070 | ||||
2500 | 1200 | 17170 | 0.5 | 6730 | 2190×1120×2110 | 1070×1070 |
Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.
