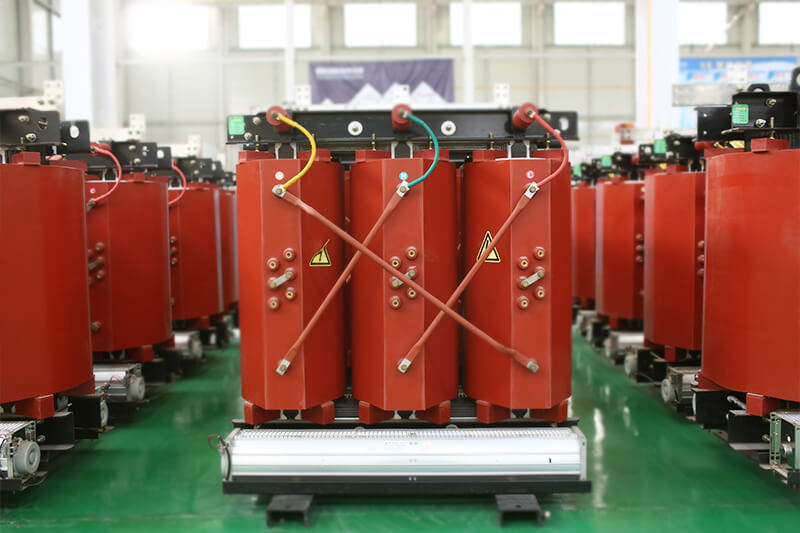

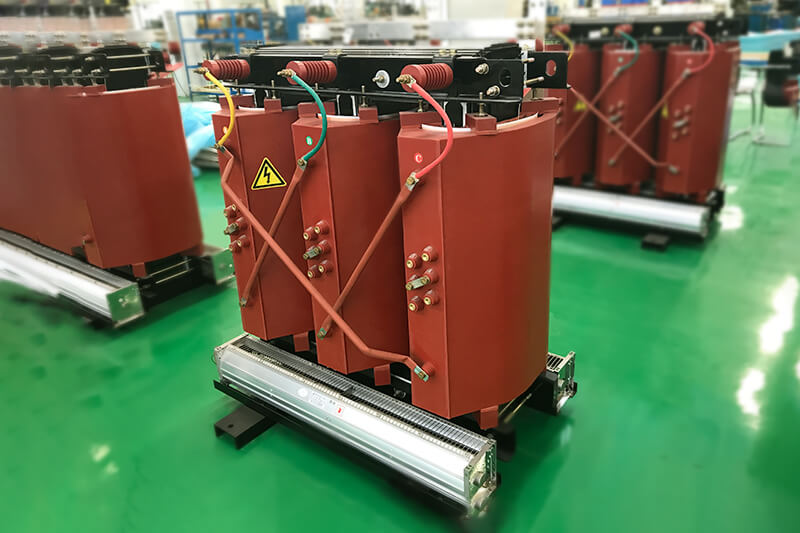

The description of SG-100KVA three phase dry type transformer

SG-100KVA three phase dry type transformer are the main components of various power supplies and electrical equipment. Fanchong three-phase dry-type transformers are composed of cylindrical windings and laminated iron cores. ZTELEC uses advanced manufacturing technology, including imported Spanish winding machines and a full set of vacuum pressure dipping equipment. The windings of SG-100KVA three phase dry type transformer are made from the whole winding method. Vacuum dipping the transformer to make the SG-100KVA three phase dry type transformer insulation class Reach level F or H. The output and input voltage of the transformer can be designed according to customer requirements. There are various specifications such as single input, single output, multiple inputs, multiple outputs.

The main features of SG-100KVA three phase dry type transformer

① iron core

ZTELEC adopts new high-quality high-silicon silicon steel sheets. The main material of SG-100KVA three phase dry type transformer adopt high-quality silicon steel sheets of 0.35 and 0.5 thick H18, H14, H12, and Z11. We choose suitable materials according to the requirements of the guest rooms and the use conditions to make the transformer performance design more good. (Conventional materials are new high-quality silicon steel sheets).

② the wire of SG-100KVA three phase dry type transformer

ZTELEC adopts PEW, UEW, EIW, SEIW, FEAI enameled wire and glass fiber covered wire. The temperature resistance grade is F (155 ° C), H (180 ° C), HC (200 ° C), and C (220 ° C). . (Conventional temperature resistance class is H class 180 ℃).

③ Insulation material of SG-100KVA three phase dry type transformer

ZTELEC uses high temperature resistant insulation paper as the insulation material which has multiple properties such as high temperature insulation, flame resistance and moisture resistance.

④Terminal block of SG-100KVA three phase dry type transformer

Low power uses terminal block, beautiful appearance, excellent pressure resistance, temperature resistance, flame retardant performance. High power uses high-quality copper bars.

⑤Iron feet of SG-100KVA three phase dry type transformer

ZTELEC mainly adopts CNC bending cold-rolled plates, which have environmental protection plating such as multicolored (gold), blue zinc (silver white), white zinc (ivory white), and surface anodized (black). The temperature resistance rating is Class H 180 ° C.

The advantages of SG-100KVA three phase dry type transformer

1. Scientific and reasonable design, control the voltage change rate within 1 ~ 1.5%.

2. SG-100KVA three phase dry type transformer is made of high-quality new silicon steel sheet, which effectively reduces iron loss and improves efficiency.

3.SG-100KVA three phase dry type transformer is made of high-temperature-resistant high-quality wire which reduces its own loss and greatly improves the efficiency.

4. SG-100KVA three phase dry type transformer adopts H-class insulation and high-temperature-resistant insulation materials which improves the high-voltage strength and insulation level and prolongs the service life.

5. High efficiency design, more than 98%.

6. Beautiful and novel appearance design, high power density, small size and high space utilization.

7. SG-100KVA three phase dry type transformer is divided into two types: open type and protective type according to the structure. The protective type is processed into a box shell by using steel plates. The transformer is inside the box shell and there are wire entry and exit holes outside the box shell for the installation of power lines. If necessary, voltmeters, ammeters, temperature control alarm systems, steering wheels that can be added according to user requirements in order to move.
