product description

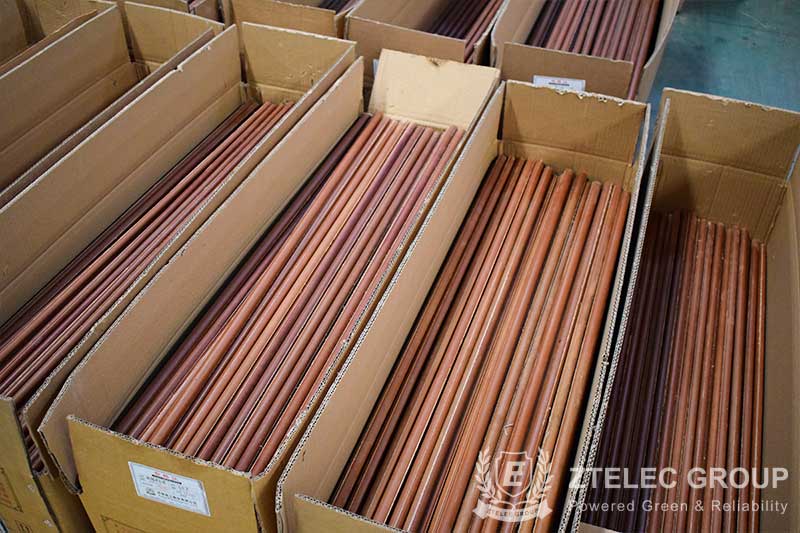

Description of Polyimide Glass Fiber Cloth Laminated Rod
Polyimide glass fiber cloth laminated rod is mainly used as insulating structural components of electrical equipment and machined parts of screw.
Technical Data of Polyimide Glass Fiber Cloth Laminated Rod
| Chinese Name | 3850 | |
| IEC | BMIGC41 | |
| NEMA | - | |
| Basic Material | Glass fiber cloth | |
| Resin | Polyimide imide | |
| Color | Deep brown | |
| Item | Unit | Value |
| Density | g/m³ | 1.7~1.8 |
| Vertical Flexural Strength(normal) | Mpa | ≥220 |
| Axial Compressive Strength | Mpa | ≥175 |
| Parallel Layer Breakdown Voltage (90℃ transformer oil) | Kv | ≥40 |
| Insulation Electrical Resistance after Soaking | MΩ | ≥1000 |
| Dielectric Loss Factor(50Hz) | - | ≤0.03 |
| Water Absorption | Mg/cm² | ≤3 |
| Temperature Degree | - | 180 |
| Standard: GB/T 5132-2009 IEC61212-2006 | ||
