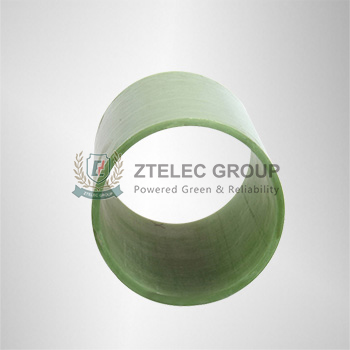

Epoxy Glass Fiber Winding Tube 360 EPCF52
Description:
This product adopts fiber glass yarn that is impregnated with insulation jelly made of epoxy resin and other resins by certain proportion, and then it is rolled in wet method, and dried and finally consolidated by baking. Its heat resistance level is up to Class H, and it also has excellent electrical and mechanical properties, chemical resistance (SF6), low dielectrical loss, no deformation or delamination. It can be used as main insulator on H grade dry-type transformer, load tap changer, electric reactor, lightning arrestor, SF6 inductor, etc.
Technical Data
Description:
This product adopts fiber glass yarn that is impregnated with insulation jelly made of epoxy resin and other resins by certain proportion, and then it is rolled in wet method, and dried and finally consolidated by baking. Its heat resistance level is up to Class H, and it also has excellent electrical and mechanical properties, chemical resistance (SF6), low dielectrical loss, no deformation or delamination. It can be used as main insulator on H grade dry-type transformer, load tap changer, electric reactor, lightning arrestor, SF6 inductor, etc.
Technical Data
| Standard：GB/T 5132.1-2009 IEC61212-1:2006 | |||
| No. | Properties | Unit | Value |
| 360/EPCF52 | |||
| 1 | Density | g/m³ | 1.85-2.00 |
| 2 | Vertical Bending Strength (normal) | MPa | 400 |
| 3 | Axial Compressive Strength | MPa | ≥150 |
| 4 | Parallel Breakdown Voltage (90 ℃ of transformer oil) | Kv | ≥40 |
| 5 | Vertical Electrical Strength (90 ℃ of transformer oil) 1mm | Kv/mm | ≥11.6 |
| 6 | Surface Voltage Resistance after Wetting | kv | ≥12 |
| 7 | Insulating Electrical Resistance after Wetting | Ω | ≥1.0*10^9 |
| 8 | Dielectric Loss Factor (50Hz) | - | ≤0.05 |
| 9 | Water Absorption | ％ | ≤1 |
| 10 | Partial Discharge | PC | ≤5 |
| 11 | Temperature Index | - | 180 |
