C4B Insulation Board Product Data

Madera laminada de alta densidad

Material Details

Grade: C4B. (Type: Wood Based Laminates)

Description: Wood Veneer. Superior Wood Laminate.

Comments: It is formed from fine birch, which is cut into veneers and dried, and then glued and laminated by hot pressing.  It has the advantages of moderate density, high mechanical strength, easy vacuum drying, and easy machining.  Its dielectric constant is close to that of transformer oil, and its insulation is reasonable.

Specifications: IEC 61061-2:2001, DLW301

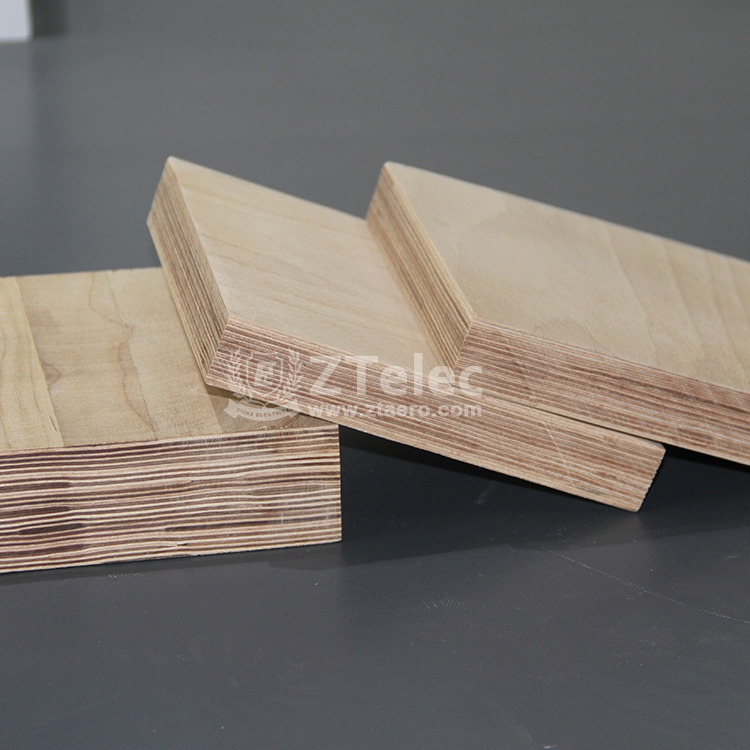

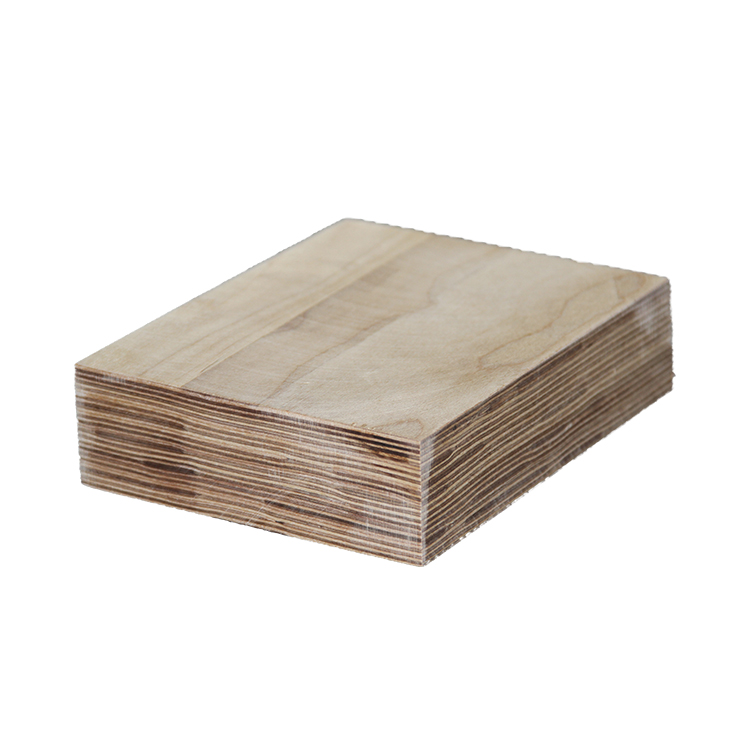

High density laminated wood C4B

Body Colour: Nature

Cover Colour: Nature

Standard Finish:

Size: 1000mm*2000mm/1500mm*3500mm/2000mm*4000mm, Thickness: 8-120mm

Typical Applications

lCoil Plate

lCore Pad

lLead Bracket

General Properties



Property Unit of measure Typical Value

Density g/cm3 1.2-1.3

Water Absorption % ≤6.0

Oil Absorption % ≥5.0

 High density laminated wood C4B-2

Electrical Properties

Property Unit of measure Typical Value

Breakdown Voltage (90℃, In Oil) ⊥ kV/mm ≥45

Breakdown Voltage (90℃, In Oil)∥ kV ≥80

Dissipation Factor (50HZ, 25℃) tanδ 0.01

Transformer Voltage Level - ≥110kV

Mechanical Properties



Property Unit of measure Typical Value

Vertical Layer Bending Strength MPa ≥80

Interlaminar Shear Strength MPa ≥9

Impact Strength kJ/m2 ≥15

Flexural Modulus MPa ≥110

Flexural Strength MPa ≥110

Thermal Properties

High density laminated wood C4B-3

Property Unit of measure Typical Value

Thermal Charactersitices ℃ 120

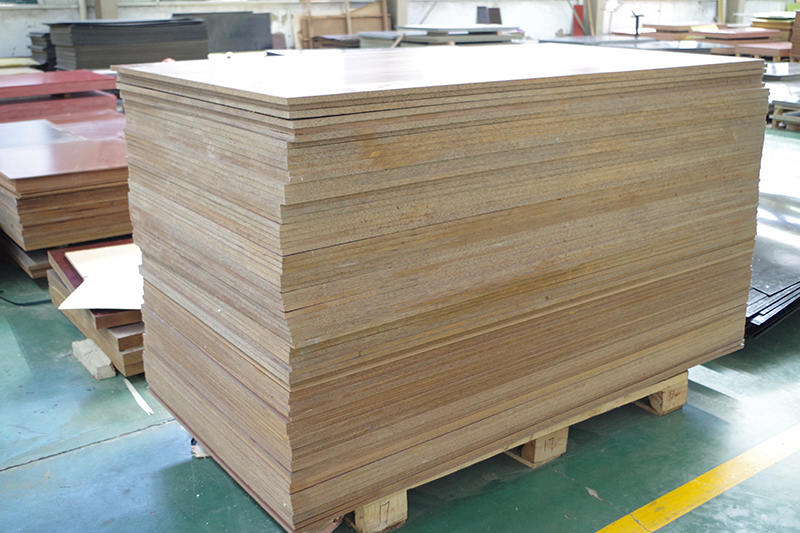

Stroage: Wrapped with packaging film and packed in pallet; horizontally placeed in dry and clean room at room temperature; keep it away from moisture and fire. The storage period is 12 months.
