Product Range：

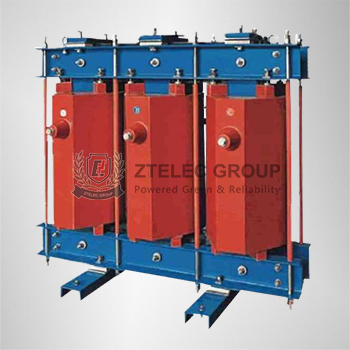

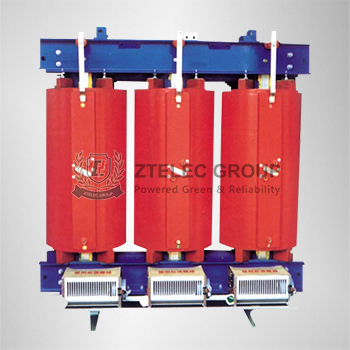

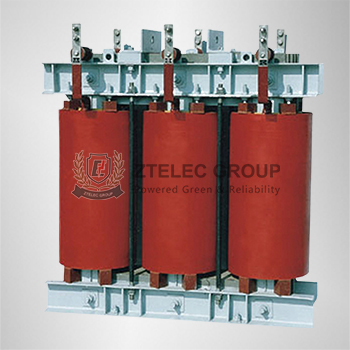

Our company can produce a variety of CKSC series dry-type iron core reactor with a voltage rating of 35kV or less and a capacity of 600kVA or less.Executive Standard:
GB1094 Electrical TransformerIEC60076 Electrical Transformer
GB10229 Reactors
JB5346 Series Reactors
Features of Products:
- The iron core adopts special design compression and special techniques to reduce noise effectively ;
- The coils and iron cores are cast with vacuum epoxy. The products are characterized by high mechanical strength, strong short-circuit resistance and low temperature rise.
- Product design fully takes into account the effects of higher harmonic of the network;
- Low loss, energy-saving effect, maintenance-free;
- Good moisture resistance, suitable for operation in high humidity and other harsh environments.
| rated capacity （KVAR） |
type | rated voltage line（KV） |
terminal voltage（V） |
terminal current（A） |
reactance rate（%） |
loss（W） | capacitor capacity（KVAR） |
weight（Kg） |
| 12 | CKSC-12/10-6 | 11 | 381 | 10.5 | 6 | 720 | 200 | 180 |
| 24 | CKSC-24/10-6 | 11 | 381 | 21 | 6 | 750 | 400 | 290 |
| 36 | CKSC-36/6-6 | 6.6 | 228 | 52.6 | 6 | 1050 | 600 | 350 |
| 36 | CKSC-36/10-6 | 11 | 381 | 31.5 | 6 | 1050 | 600 | 350 |
| 60 | CKSC-60/6-6 | 6.6 | 228 | 87.7 | 6 | 1650 | 1000 | 450 |
| 60 | CKSC-60/10-6 | 11 | 381 | 52.5 | 6 | 1650 | 1000 | 450 |
| 90 | CKSC-90/6-6 | 6.6 | 228 | 131 | 6 | 1800 | 1500 | 650 |
| 90 | CKSC-90/10-6 | 11 | 381 | 78.7 | 6 | 1800 | 1500 | 650 |
| 108 | CKSC-108/6-6 | 6.6 | 228 | 157.5 | 6 | 2350 | 1800 | 700 |
| 108 | CKSC-108/10-6 | 11 | 381 | 94.5 | 6 | 2350 | 1800 | 700 |
| 120 | CKSC-120/6-6 | 6.6 | 228 | 175 | 6 | 2750 | 2000 | 780 |
| 120 | CKSC-120/10-6 | 11 | 381 | 105 | 6 | 2750 | 2000 | 780 |
| 150 | CKSC-150/6-6 | 6.6 | 228 | 219 | 6 | 2860 | 2500 | 1050 |
| 150 | CKSC-150/10-6 | 11 | 381 | 131.2 | 6 | 2860 | 2500 | 1050 |
| 180 | CKSC180/6-6 | 6.6 | 228 | 263 | 6 | 2950 | 3000 | 1250 |
| 180 | CKSC-180/10-6 | 11 | 381 | 157.5 | 6 | 2950 | 3000 | 1250 |
| 240 | CKSC-240/6-6 | 6.6 | 228 | 351 | 6 | 3450 | 4000 | 1450 |
| 240 | CKSC-240/10-6 | 11 | 381 | 210 | 6 | 3450 | 4000 | 1450 |
| 300 | CKSC-300/10-6 | 11 | 381 | 262.5 | 6 | 4260 | 5000 | 1650 |
| 360 | CKSC-360/10-6 | 11 | 381 | 315 | 6 | 4850 | 6000 | 2200 |
| 450 | CKSC-450/10-6 | 11 | 381 | 394 | 6 | 5430 | 7000 | 2400 |
| 600 | CKSC-600/10-6 | 11 | 381 | 525 | 6 | 5840 | 10000 | 3200 |
Note: Due to continuous product improvement, the dimensions provided in this sample are for reference only. If necessary, our company can design and produce according to user requirements. Please contact the company in time.
