Transformer Capacity Calculation Step-by-Step: How to Accurately Calculate

In power distribution system design, accurate transformer capacity calculation is crucial for ensuring stable equipment operation and avoiding resource waste. Undercapacity can easily lead to overload and burnout, while overcapacity increases energy consumption and investment costs. Whether selecting a dry-type transformer or an oil-immersed transformer, accurate sizing ensures long-term stability and cost-effectiveness. The following is a comprehensive breakdown of the scientific calculation process for transformer capacity, covering aspects such as clear goals, data collection, step-by-step calculation, and precautions.

Clear Calculation Objectives

Before calculating transformer capacity, you must first identify the load type and operating mode to ensure accurate results.

Determine Load Type: Power loads such as motors and compressors require consideration of starting current, which is typically 5–7 times the rated current. Lighting loads such as LEDs and fluorescent lamps can be calculated directly by summing total power. For mixed loads, power and lighting should be calculated separately and then added together.

Analyze Load Operating Mode: Continuous operation is calculated based on rated power. Intermittent operation requires the load factor, such as 8/24 ≈ 0.33 for 8-hour daily use.

Collecting Basic Data

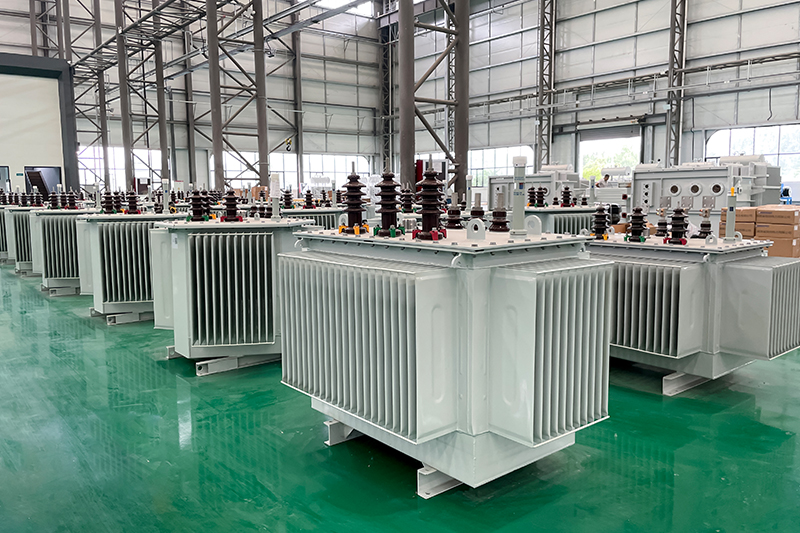

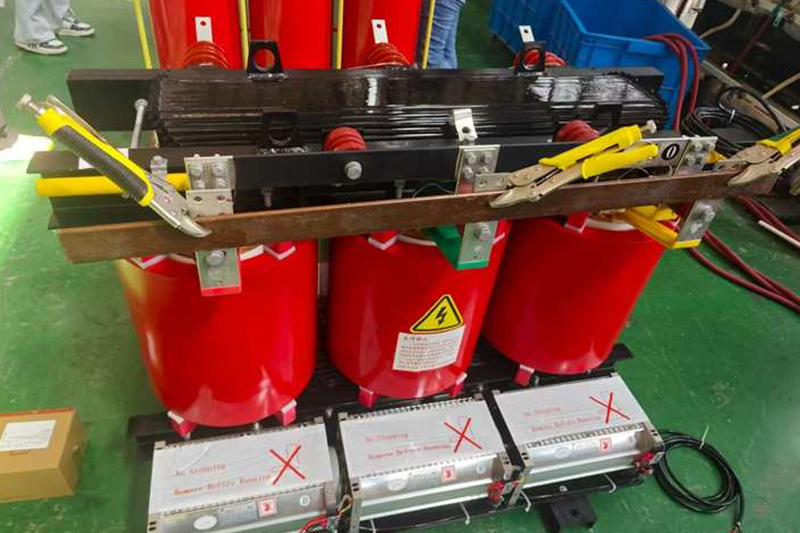

Accurate transformer capacity calculations require comprehensive and precise electricity usage data. When selecting between a dry-type transformer and an oil-immersed transformer, these parameters directly influence the choice.

Equipment Power Parameters: List the rated power (kW or kVA) of all equipment, distinguishing between single-phase (220V) and three-phase (380V).

Power Factor (cosφ): Motors usually have a power factor of 0.8–0.9, while lighting equipment can reach close to 1.0. For mixed loads, use a weighted average.

Simultaneity Factor (Kt): Reflects the probability of all equipment operating at full load simultaneously. Generally 0.7–0.9, depending on the equipment quantity.

Load Factor (Kf): The ratio of actual operation time to theoretical time. For instance, 80% utilization means a load factor of 0.8.

Specific Steps for Calculating Transformer Capacity

1. Determine the load to be calculated: Summarize the rated power, current, and voltage of all connected equipment. Classify continuous loads (lighting, HVAC), intermittent loads (elevators, welders), and inrush loads (motor starting).

2. Calculate total power demand: Single-phase: Total power = Voltage × Current × Power Factor. Three-phase: Total power = √3 × Voltage × Current × Power Factor. If power factors differ, calculate a weighted average.

3. Adjust the calculated results: Apply the demand factor (Kd) and simultaneity factor (Ks) to reflect realistic operating conditions.

4. Select the transformer capacity: Formula: Transformer capacity = Total power demand ÷ Average power factor ÷ Transformer efficiency (≥95%). A reserve margin of 1.15× is recommended to maintain a load factor of 60%–70%. Select the nearest standard transformer model, whether dry-type transformer or oil-immersed transformer, to avoid over- or under-capacity.

Important Notes

The capacity of a single transformer should generally not exceed 1000kVA. For larger loads, use multiple transformers in parallel, ensuring identical connection groups and matched parameters. Environmental conditions such as ambient temperature and altitude must be considered, as they may reduce rated winding current and affect final capacity selection.

Transformer capacity calculation is a critical step in power system design. Accurate sizing ensures supply reliability, operational economy, and equipment longevity. This systematic method provides engineers with a practical approach for choosing between dry-type transformers and oil-immersed transformers based on load characteristics, future expansion, and energy efficiency requirements. Proper capacity selection guarantees long-term stability and efficiency in modern power distribution projects.
