The Role of NMN and AMA Insulation Paper in Electrical Insulation Systems
In modern electrical insulation applications, high-performance composite materials play a crucial role in ensuring equipment reliability, improving operational efficiency, and extending service life. Among these, NMN and AMA stand out as two important composite insulation materials. Thanks to their unique performance advantages, they are widely used in demanding applications such as motors, transformers, and traction systems. This article aims to provide a systematic overview of their structural characteristics, performance benefits, and typical application scenarios, serving as a reference for engineering selection and insulation design.

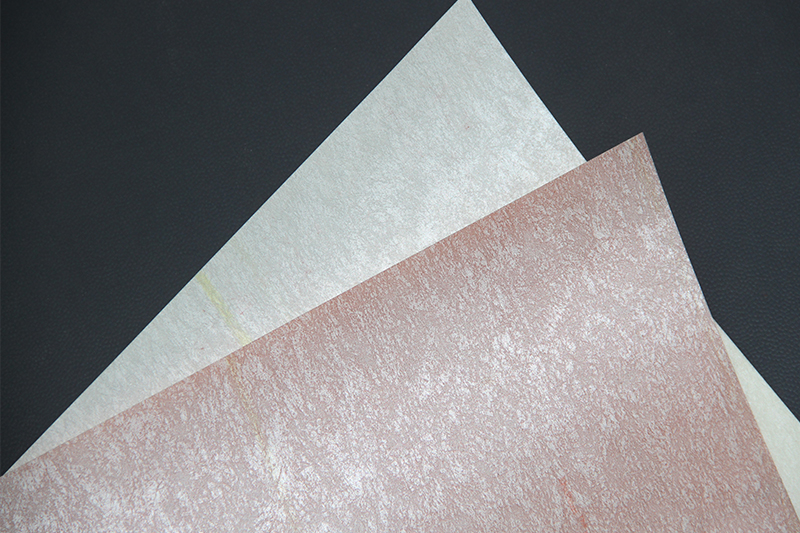

NMN Insulation Paper
NMN insulation paper is a three-layer composite material (M-N-M structure), typically composed of polyester film (Mylar®) and aramid fiber paper (Nomex®). With multiple outstanding properties, NMN is extensively applied in high-demand electrical insulation environments.
Its main characteristics include:
Excellent heat resistance: NMN can operate continuously at 220°C, with even higher short-term temperature resistance. This makes it highly suitable for insulation systems rated H-class (180°C) and above. Common applications include high-efficiency motors, traction motors (such as those used in high-speed trains and subways), explosion-proof motors, and wind turbine generators.
High electrical strength: The mica layer within NMN provides excellent dielectric strength and corona resistance, effectively protecting against damage from high-frequency pulse voltages (such as inverter outputs). For this reason, NMN is an indispensable material in inverter-driven motors.
Good mechanical properties: The Nomex® aramid paper base provides high tear resistance, puncture resistance, and flexibility. This ensures that NMN is not easily damaged during processing steps such as winding and slot insertion, making it easier for manufacturers to handle.
Chemical stability and moisture resistance: NMN shows good resistance to most chemicals and solvents, while its low moisture absorption allows it to maintain stable performance in humid environments.
Its typical application areas include:
● Slot insulation, inter-turn insulation, and liner insulation in inverter-driven motors;
● Main insulation of high-voltage motors;
● Traction motors used in rail transit and electric vehicles;
● H-class and above motors and transformers requiring high reliability and long service life.

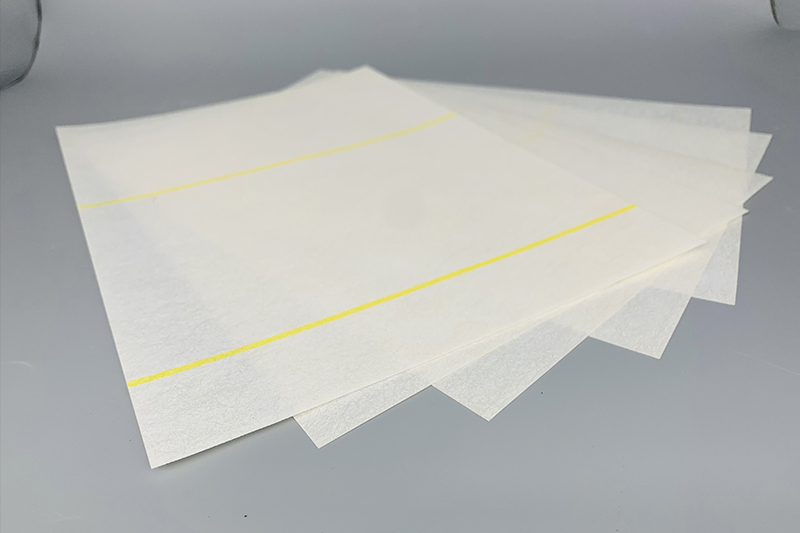

AMA Insulation Paper
AMA insulation paper is a composite material made from polyimide film and para-aramid fiber paper, commonly available in double-layer or three-layer structures (such as A-A-M or A-M-A). Its most notable feature is the use of para-aramid . Compared with the meta-aramid (Nomex®) used in NMN, AMA offers higher mechanical strength, though its long-term heat resistance is slightly lower (around 200°C). It still belongs to the H/C-class insulation materials.
The main characteristics of AMA include:
Extremely high mechanical strength: Para-aramid provides AMA with excellent tensile strength, tear resistance, and abrasion resistance. This makes AMA particularly suitable for high-speed and high mechanical stress environments.
Outstanding electrical insulation properties: The mica layer within AMA ensures strong dielectric strength and corona resistance, maintaining insulation reliability under high voltage and pulse voltage conditions.
Good thermal stability: Although AMA’s temperature resistance rating is slightly lower than that of NMN, its mechanical properties remain stable at elevated temperatures, making it suitable for applications that demand both high strength and heat resistance.
Its typical application areas include:
· Slot wedges in large high-voltage motors, which are used to secure coils and withstand radial electromagnetic forces;
· End insulation liners and binding materials in motors, resisting axial stresses during startup or short-circuit conditions;
· Fastening and support insulation components in transformers;
· Slot insulation in special motors where extremely high mechanical strength is required.
Both NMN and AMA belong to high-performance composite insulation materials, playing a key role in motors, transformers, and other electrical equipment. NMN excels in high-temperature and corona-resistant applications, making it especially suitable for inverter-driven, high-voltage, and high-temperature environments. AMA, on the other hand, stands out with its superior mechanical strength, making it the preferred choice for insulation parts subjected to high mechanical stress. By selecting the appropriate material based on specific operating conditions, engineers can significantly enhance the reliability and service life of insulation systems.
