What is the difference between bakelite board and phenolic board

2022-12-20 14:40  |  By: ZTELEC-www.ztelecgroup.com  |  146click

They are actually a product. Let's take a look at this product below.

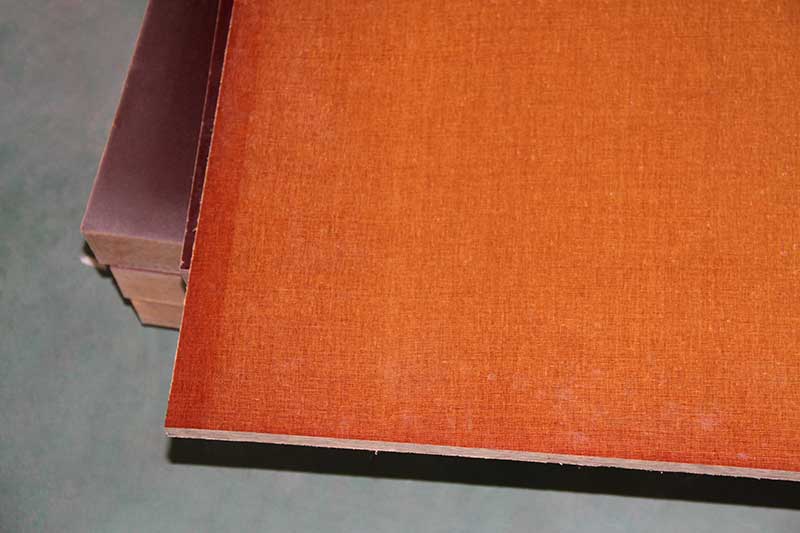

Bakelite board can also be called phenolic board. It is a brittle and hard thermosetting material, often used as insulation materials, furniture parts, daily necessities and handicrafts.

Material composition:

1. Bleached wood pulp paper or cotton cloth 2. Phenolic resin

Forming main process:

soak paper or cotton cloth in phenolic resin for hot pressing

Environmental protection:

poor, thermosetting material, can not be recycled.

Toxicity:

The molded material is non-toxic, but it will be heated during the reproduction process, which will produce toxic substances.

Processing:

It can be processed into various shapes such as tubes and rods, and can also be cut into different sizes and shapes to meet the needs of different electrical products.

Performance advantages:

1. Good mechanical strength, good machining performance, specific gravity 1.45, warpage ≤ 3‰

2. Good electrical performance at room temperature, anti-static, with intermediate electrical insulation.

3. Does not absorb water

4. High temperature resistance

Application:

PCB drilling, silicone rubber mold. Fixtures, switchboards, electrical machinery parts

Economic benefits:

The price of raw materials is nearly 50% of the price of ABS. In certain cases, the economic advantage is obvious, and it is also lower than the price of epoxy glass fiber board.

All in all, Bakelite is a very economical product when it meets mechanical and insulating properties
