10kV Dry-Type Distribution Transformer Comprehensive Guide

In modern power distribution systems, 10kV dry-type distribution transformers play a vital role in electrical energy conversion and safe distribution. With advantages such as high safety, strong reliability, and environmental protection, they have become the preferred choice for commercial buildings, industrial facilities, data centers, hospitals, transportation hubs, and new energy projects. Unlike oil-immersed transformers, they use air or solid insulation materials, eliminating fire and leakage risks completely. This guide provides an in-depth overview—from definition and key features to internal structure and application scenarios.

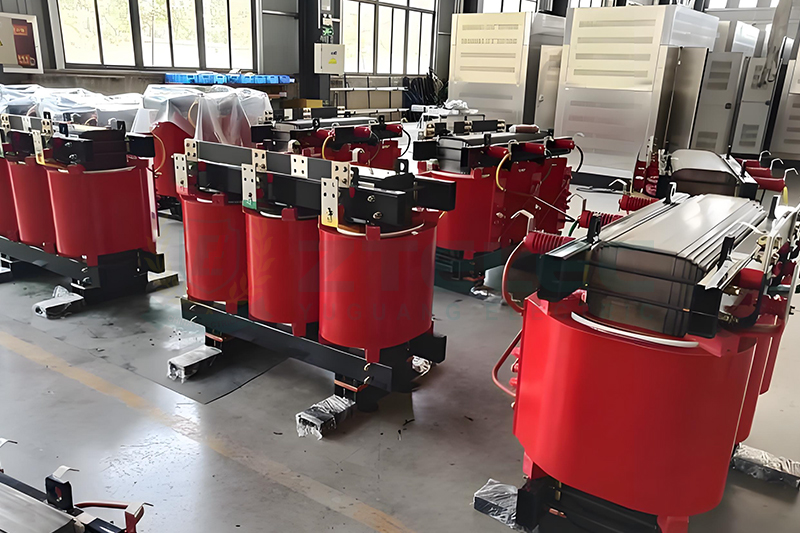

What Is a 10kV Dry-Type Distribution Transformer?

A 10kV dry-type distribution transformer is a static electrical device designed to convert a primary voltage of 10kV into a secondary voltage of 0.4kV. Unlike traditional designs, its core and windings are not immersed in insulating oil. Instead, insulation and heat dissipation rely on epoxy resin and surrounding air. The 10kV rating represents the maximum designed operating voltage level commonly used in terminal ends of medium-voltage distribution networks.

Core Features of 10kV Dry-Type Distribution Transformers

High Safety Performance
Uses epoxy resin cast coils or H-class/N-class insulation systems. Flame-retardant, self-extinguishing, and free from harmful gas emissions. Strong short-circuit resistance with minimal explosion risk.

Low Maintenance Requirements
Oil-free design eliminates oil testing and replacement. The compact structure ensures stable and reliable long-term operation.

Energy-Efficient and Environmentally Friendly
Equipped with low-loss magnetic cores such as high-permeability cold-rolled grain-oriented silicon steel. No-load and load losses meet IEC/IEEE energy efficiency standards. The oil-free structure supports eco-friendly operation.

Strong Moisture Resistance
Epoxy-cast coils provide excellent dust, moisture, and pollution resistance, suitable for harsh or humid environments.

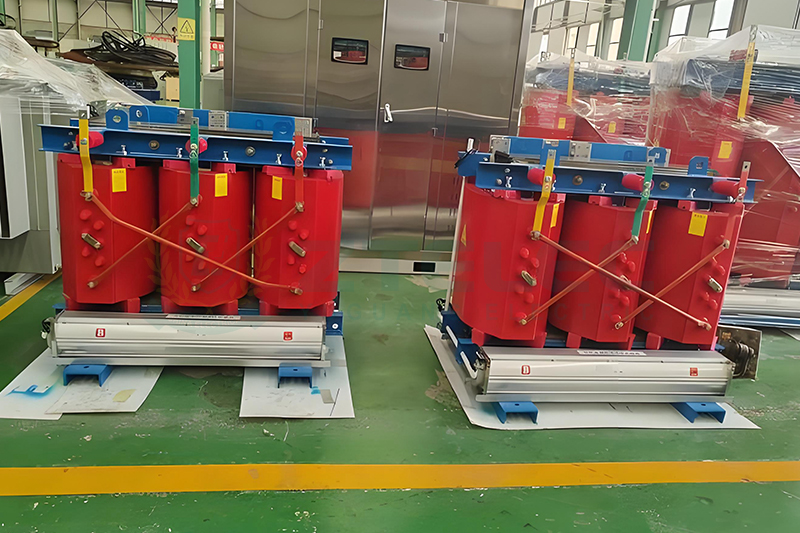

Structural Design of 10kV Dry-Type Transformers

Core
Made from high-quality, low-loss, cold-rolled grain-oriented silicon steel. The step-lap structure reduces magnetic resistance, noise, and no-load current, enhancing transformer efficiency.

Windings
High-voltage winding: Copper foil or wire winding vacuum-cast with epoxy resin, offering strong insulation, effective heat dissipation, and high durability in harsh conditions.
Low-voltage winding: Copper foil winding with DMD insulation to ensure stable interlayer insulation and excellent mechanical strength.

Insulation System
Adopts F-class (155°C) or H-class (180°C) epoxy insulation, ensuring high dielectric strength between windings and between winding and core.

Cooling System
Cooling methods include Air Natural (AN) and Air Forced (AF). Internal ventilation channels allow natural convection or fan-assisted heat dissipation.

Enclosure & Protection
Optional enclosures such as IP20 (touch protection) or IP23 (rain protection). Built-in temperature monitoring provides over-temperature alarms and automatic trip protection.

Application Scenarios of 10kV Dry-Type Distribution Transformers

Commercial Buildings
Suitable for office towers, shopping malls, and commercial complexes. Compact installation in basements or MEP shafts with low noise and high safety.

Industrial Parks and Manufacturing Facilities
Ideal for CNC workshops, metallurgical plants, and heavy-load industries due to strong short-circuit resistance and stable high-temperature performance.

Metro Systems, Tunnels, and Airports
Environments with strict fire-safety requirements, high humidity, and limited ventilation. Dry-type transformers provide flame-retardant performance and excellent moisture resistance.

Hospitals, Schools, and Public Infrastructure
Require low noise, stable operation, and continuous load capability. Dry-type transformers meet reliability demands for critical facilities.

The 10kV dry-type distribution transformer delivers exceptional safety, reliability, and environmental performance, becoming a key component in modern power distribution networks. Its advanced structure, stable insulation system, and flexible application suitability make it ideal for commercial complexes, industrial parks, public facilities, metro stations, and green energy projects. Understanding its features, internal structure, and application scenarios ensures accurate selection and optimized performance for your power system.
