What role does bakelite board play in energy storage systems?

Global energy transformation is accelerating. As a core technology for balancing grid supply and demand and improving energy efficiency, energy storage systems play an increasingly important role. Whether it is power storage for wind power generation or battery management for electric vehicles, energy storage systems are indispensable. In these complex energy storage systems, bakelite board has become a key material to ensure the stable operation of the system with its unique physical and chemical properties. Next, we will explore in depth the specific role and application of bakelite board in energy storage systems.

What role does bakelite board play in energy storage systems?

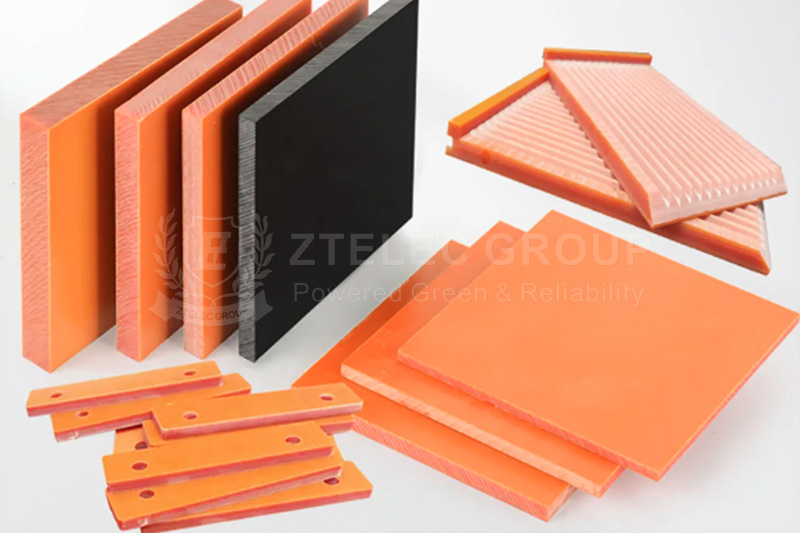

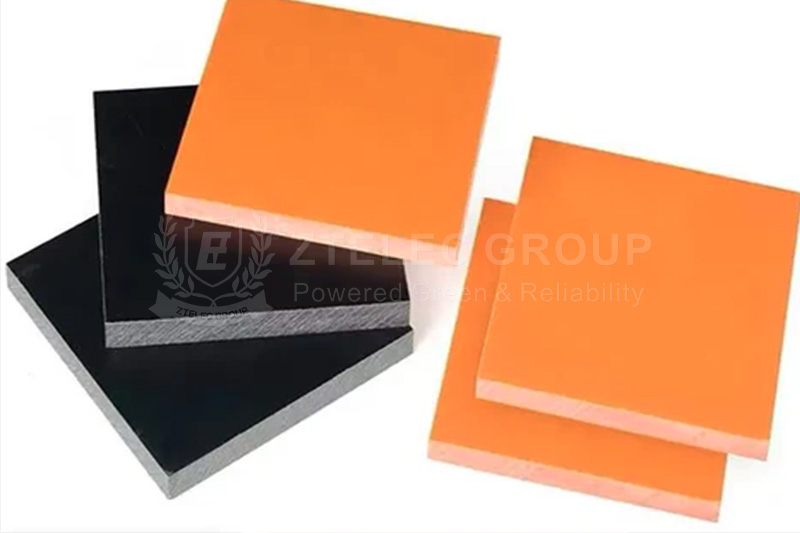

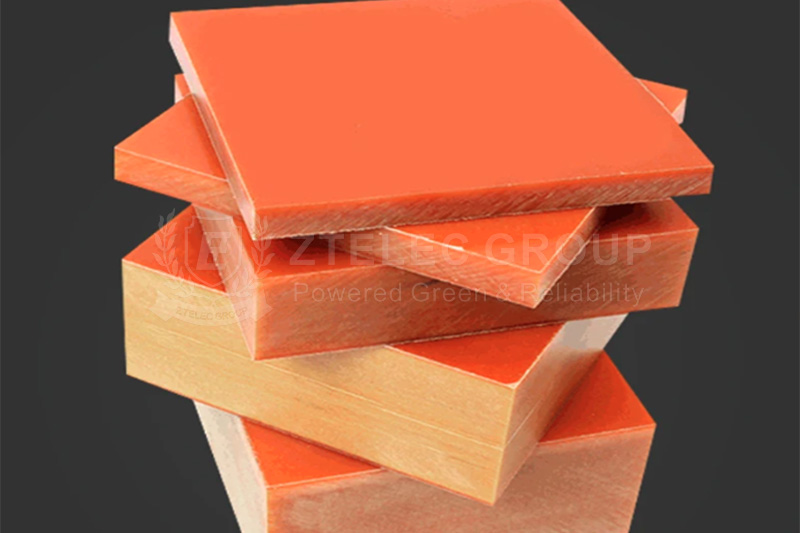

Bakelite board, also known as phenolic laminated paperboard, is a man-made synthetic material made by hot pressing. It has high electrical insulation, mechanical strength, chemical stability and flame retardant properties. These characteristics make it an ideal choice for multiple key links in energy storage systems. Bakelite board can not only effectively isolate and protect electronic components, but also ensure the safe and stable operation of energy storage systems under complex working conditions.

1. Electrical insulation

In energy storage systems, electrical insulation is the key to preventing short circuits and leakage. Bakelite board has high insulation performance and is widely used in battery module isolation. Whether it is a lithium-ion battery or a lead-acid battery system, bakelite board can act as an insulating layer between battery packs or between batteries and metal casings. This effectively blocks the current leakage path. In addition, at the terminals and busbars of battery series and parallel connections, bakelite board can also serve as an insulating gasket or bracket to ensure safe isolation between conductive parts, thereby reducing the risk of electrical failure.

2. Mechanical support and structural fixation

Bakelite has good mechanical strength and is very suitable for making battery brackets and partitions. When the energy storage system is running, the battery module will be subject to vibration and impact. At this time, Bakelite can effectively fix the battery cell or module to prevent performance degradation or failure due to displacement. In addition, the control circuit board of some energy storage systems will use bakelite board as the PCB substrate. Bakelite board can carry monitoring and management circuits and provide structural support for the stable operation of the system.

3. Thermal management and protection

Bakelite board has poor thermal conductivity, but this feature makes it an ideal thermal insulation material. In energy storage systems, bakelite board can be used to isolate heat-sensitive components and reduce the impact of local overheating on system performance. At the same time, bakelite board has flame retardant properties, which can effectively reduce the risk of fire, meet the strict safety standards of energy storage systems, and add protection for the safe operation of the system.

4. Chemical stability

The electrolyte and environmental moisture in the energy storage system require high chemical stability of the material. Bakelite board has good corrosion resistance and can effectively resist the erosion of electrolyte and moisture, avoid performance degradation due to chemical corrosion, and thus extend the service life of the energy storage system.

Typical application scenarios

Bakelite board is widely used in energy storage systems. In lithium-ion and lead-acid battery systems, bakelite board is often used to make insulating partitions and end caps between battery packs. In supercapacitors, bakelite board can be used as an isolation support material between electrodes. In battery management systems (BMS), bakelite board can be used to make insulating shells and circuit board substrates.

Precautions for use

Despite the many advantages of bakelite board, you still need to pay attention to its temperature limit when using it. The long-term operating temperature of bakelite board is generally not more than 120°C. If it is in a high temperature environment, you may need to use epoxy board or ceramic material instead. In addition, under high energy density or extreme conditions, composite materials with better performance, such as FR4 and polyimide, may be a better choice.
