High-Efficiency, All-Copper Dry-Type Three-Phase Power Transformers (IP65)

Driven by the global energy transition and the push for carbon neutrality, the power industry is increasingly adopting energy-efficient, reliable, and environmentally friendly equipment. Traditional, high-energy-consuming transformers are being phased out, and transformer manufacturers are offering advanced solutions. Large-capacity, high-voltage, all-copper dry-type three-phase power transformers with an IP65 protection rating are now a preferred choice due to their low losses, high reliability, and maintenance-free design. These transformers are widely deployed in industrial parks, data centers, hospitals, high-rise buildings, and renewable energy facilities where stable, high-quality power is essential.

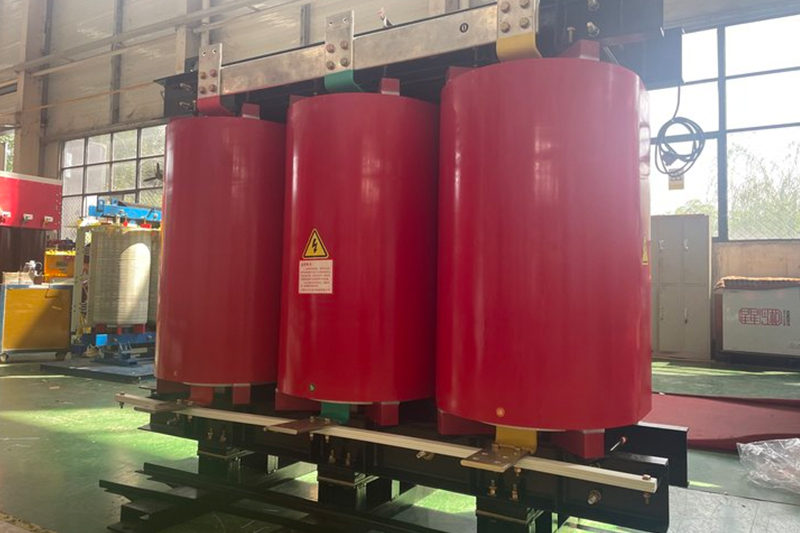

All-Copper Windings for Low-Loss and High Reliability

Traditional transformers often use aluminum or copper-aluminum hybrid windings, which can lead to higher resistive losses, overheating, and insulation degradation. Leading transformer manufacturers now provide all-copper windings, delivering superior performance:

Enhanced Conductivity: Electrolytic copper offers 1.68 times higher conductivity than aluminum, reducing resistive losses by approximately 30%. Coupled with ultra-thin silicon steel sheets and stepped-joint cores, no-load losses are reduced by 15%-20%, fully meeting GB 20052-2020 Level 1 energy efficiency standards.

Superior Thermal Stability: With a melting point of 1083°C, copper ensures minimal temperature rise under full load, preserving insulation and extending transformer lifespan.

High Overload Capacity: These transformers withstand short-term overloads of up to 1.5 times rated current, ensuring stability for renewable energy applications and fluctuating industrial loads.

IP65 Protection for Harsh Environments

All-copper dry-type transformers with an IP65 rating are designed for complex environments such as coastal, industrial, and desert areas:

Sealed Structure: Epoxy resin encapsulation protects windings and cores from moisture, salt, and dust, maintaining insulation integrity.

High-Voltage Terminal Protection: Silicone sealing covers safeguard high-voltage terminals and facilitate easy maintenance.

Intelligent Cooling: Integrated PT100 temperature sensors with microprocessor control adjust fan speed automatically, ensuring safe operation between -40°C and +50°C.

Maintenance-Free Design

Modern transformer manufacturers eliminate the maintenance burdens of oil-filled transformers with innovative dry-type designs:

Oil-Free Operation: Solid insulation completely removes fire and leakage risks, reducing the need for firefighting measures or oil containment facilities.

Self-Cleaning Structure: Hydrophobic coatings and enclosed designs prevent dust accumulation and ensure stable insulation performance.

Intelligent Fault Monitoring: RS485 communication and Modbus integration allow real-time monitoring of load, temperature, and vibration, using AI algorithms to detect potential faults and prevent downtime.

Applications of All-Copper Dry-Type Transformers

Data Centers & Cloud Computing: Provide highly reliable, energy-efficient, and uninterrupted power for critical IT infrastructure.

High-Rise Buildings & Commercial Complexes: Installed in basements or intermediate floors, these transformers offer safe and maintenance-free operation.

Hospitals, Airports & Subway Stations: Meet F1 fire safety standards, ensuring reliability in crowded public spaces.

Industrial Sectors: Petrochemical, mining, and shipbuilding facilities benefit from IP65 protection against humidity, dust, and corrosive gases.

Renewable Energy: Suitable for step-up transformers in photovoltaic plants and wind farms, adapting to load variations and environmental challenges.

All-copper, high-voltage, dry-type three-phase transformers with IP65 protection represent the next generation of safe, efficient, and environmentally friendly power solutions. By partnering with a professional transformer manufacturer, businesses and utilities can benefit from low-loss, maintenance-free transformers that ensure reliable operation, reduce long-term costs, and meet modern energy efficiency and safety standards. From data centers to renewable energy plants, these transformers are an essential component of a high-performance, sustainable power system.
