High-Efficiency, Energy-Saving Dry-Type Distribution Transformers for Industrial and Commercial Power Systems

In modern industrial and commercial sectors, the reliability and efficiency of power systems directly affect operational costs and sustainable development. High-efficiency, energy-saving dry-type distribution transformers play a critical role by reducing energy loss, improving system safety, and ensuring long-term stable power distribution. This article explains their working principles, core advantages, technical features, and key applications to help you make informed procurement decisions.

What Is a High-Efficiency, Energy-Saving Dry-Type Distribution Transformer?

A dry-type transformer uses air as its cooling medium, without any oil-based insulating liquid. Its coils and magnetic core adopt high-temperature-resistant materials such as epoxy resin cast insulation, VPI insulation systems, and aramid (Nomex®) insulation. With no risk of oil leakage or fire, dry-type transformers are ideal for commercial centers, office towers, and indoor computer rooms.

Core Advantages of Dry-Type Distribution Transformers

1. High Efficiency and Energy Saving

Using high-quality silicon steel or amorphous alloy cores, these transformers reduce no-load and load losses significantly. They meet IE4 and IE5 efficiency standards, saving 20%–30% in electricity costs throughout their lifecycle.

2. Safety and Environmental Protection

The oil-free structure eliminates risks of leakage and fire, making the transformer suitable for densely populated commercial and industrial zones. High-temperature insulating materials ensure strong fire resistance, supported by UL and CE certifications.

3. Compact and Space-Saving Design

With a small footprint and lightweight build, dry-type transformers are ideal for indoor installations. They can reach up to IP55 protection level, offering dustproof and waterproof performance for challenging environments.

4. Intelligent Monitoring System

Equipped with real-time temperature monitoring and remote control functions, these transformers support predictive maintenance. Their service life exceeds 30 years, ensuring reliable long-term operation.

Main Technical Specifications

Capacity Range: 50 kVA – 5,000 kVA Voltage Levels: 400 V – 35 kV Cooling Methods: AN / AF (Air Natural / Air Forced) Insulation Class: F or H Protection Level: IP20 / IP23 / IP33 optional Noise Level: Lower than oil-immersed transformers Installation Options: Indoor, machine rooms, cabinets, floor distribution rooms

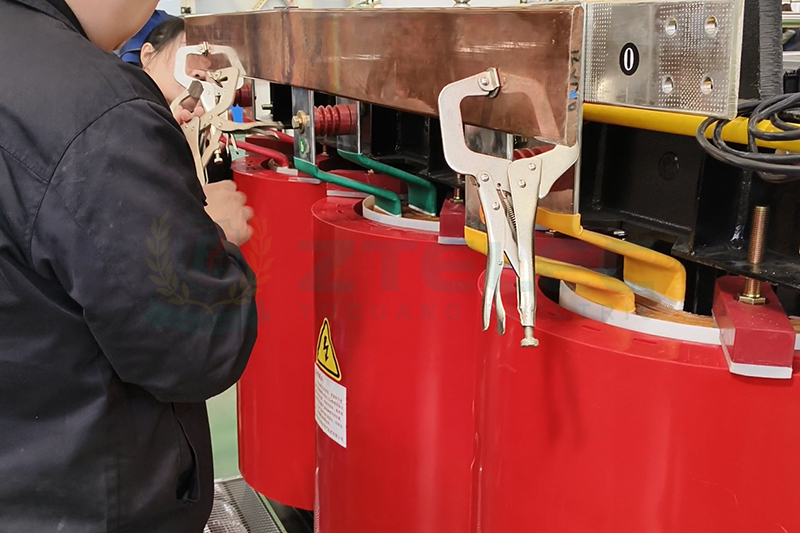

High-performance dry-type transformers include high-grade silicon steel cores, low-loss copper or aluminum windings, epoxy cast or aramid insulation, and robust mechanical frame structures.

Industrial and Commercial Application Scenarios

1. Industrial Applications

Manufacturing Plants: Automotive plants, chemical factories, and other continuous-operation facilities benefit from high reliability and stable performance.

Mining and Heavy Industries: Steel plants, mining operations, and smelting facilities require moisture-, dust-, and corrosion-resistant designs.

Renewable Energy Systems: Ideal for solar and wind power plants due to low maintenance and environmental adaptability.

2. Commercial Building Applications

Commercial Complexes: Malls, office buildings, and hotels value the low noise and zero pollution of dry-type transformers.

Data Centers: Lower cooling burden, improved PUE, high reliability, and 24/7 stable operation make them an excellent choice for mission-critical environments.

Selection Guide for High-Efficiency Dry-Type Transformers

Choose products that meet IE4 or IE5 efficiency classes and evaluate no-load/load loss performance. Select appropriate capacity (100 kVA–5,000 kVA) and voltage levels based on real loads. Opt for brands certified by ISO, IEC, IEEE, and consider smart terminals for energy monitoring and digital management.

Enhance Your Power System with High-Efficiency Dry-Type Transformers

Investing in high-efficiency dry-type transformers not only reduces energy costs but also supports sustainability and enterprise social responsibility. Contact us today for a customized solution and improve the efficiency, safety, and reliability of your industrial or commercial power system!
