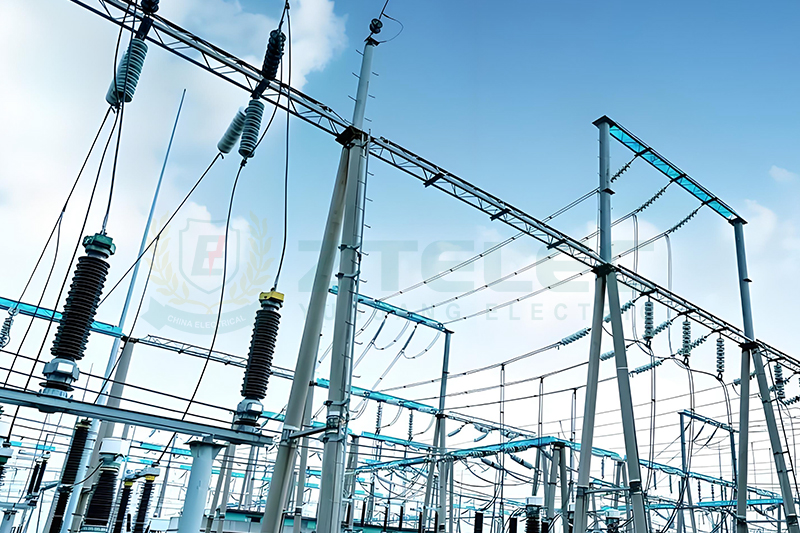

33kV to 66kV Upgrade: Seven Key Steps for Power System Modernization

As electricity demand continues to rise, many existing 33kV distribution networks face challenges in capacity, stability, and efficiency. Upgrading these systems to 66kV—together with deploying high-efficiency oil-immersed transformers—has become a critical strategy for enhancing power supply capability and supporting long-term grid development. This article provides a detailed breakdown of the seven essential steps involved in upgrading from 33kV to 66kV, helping engineers, project managers, and decision-makers ensure a safe, efficient, and successful implementation.

1. Preliminary Assessment and Feasibility Study

The first stage involves a comprehensive evaluation of the existing 33kV system, including load levels, equipment condition, operational history, and projected electricity demand. A feasibility study determines the technical and economic justification for the upgrade and identifies whether new 66kV oil-immersed transformers are required to support increased capacity. Key considerations include equipment compatibility, expected benefits, and integration with other grid systems.

2. System Design and Engineering Planning

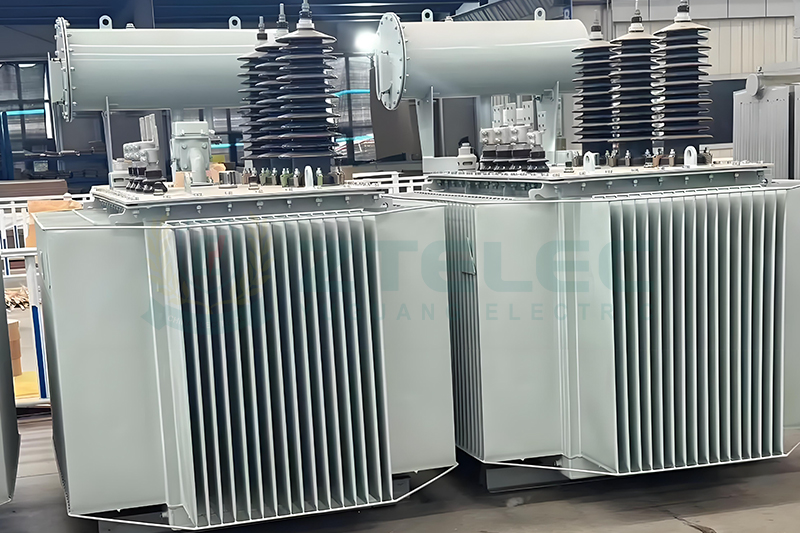

Once feasibility is confirmed, detailed engineering design begins. This includes electrical design for new transformers, breakers, and protection devices. For 66kV systems, oil-immersed transformers are commonly preferred due to their superior insulation strength and cooling performance. The design must comply with relevant 66kV standards and incorporate simulation analyses for load flow, short circuits, and stability.

3. Equipment Selection and Procurement

Choosing the right equipment is essential for high-performance system upgrades. Priority should be given to reliable, energy-efficient, and internationally certified 66kV components. In most cases, a high-quality oil-immersed transformer offers the best combination of lifecycle cost, heat dissipation, and overload capability. Procurement should include lifecycle evaluation, supplier assessment, and strict acceptance testing to ensure compatibility and reliability.

4. Construction and Installation Management

During construction, precise project management is crucial to minimize outages and ensure safety. A phased installation plan enables orderly integration of 66kV transformers, lines, and switchgear. Applying correct oil-filling procedures, ensuring transformer tank sealing, and following standard installation guidelines for oil-immersed transformers are essential steps. Safety protocols and construction quality must meet all engineering and regulatory requirements.

5. Testing and Commissioning

After installation, the upgraded system undergoes comprehensive testing to verify operational reliability. For oil-immersed transformers, this includes oil dielectric strength tests, insulation resistance checks, temperature rise testing, and relay protection validation. Commissioning ensures that all equipment performs correctly under 66kV operating conditions and provides a performance baseline for future maintenance.

6. System Switchover and Final Commissioning

Following successful testing, the system enters the switchover phase. Gradual energization of transformers and lines reduces operational risk. Coordination with grid dispatch centers ensures minimal impact on end users. During switching, real-time monitoring of transformer oil temperature, load current, and voltage stability is essential for maintaining reliable operation.

7. Operation, Maintenance Optimization, and Continuous Improvement

After the upgrade, establishing an optimized operation and maintenance system is vital. For oil-immersed transformers, periodic oil testing, dissolved gas analysis (DGA), infrared temperature monitoring, and preventive maintenance significantly extend device lifespan. Smart sensors and data analytics help detect early-stage insulation or overheating issues. Training O&M personnel to follow 66kV maintenance standards further enhances grid reliability and performance.

Upgrading from 33kV to 66kV is a complex but highly beneficial project. By incorporating high-efficiency oil-immersed transformers and following these seven key steps, utilities can reduce risks, enhance power stability, and future-proof their electrical infrastructure. For tailored engineering solutions, partnering with an experienced power engineering firm is strongly recommended.
