PORTABLE SOLAR PANEL

Portable solar panel(PVC Tarp)

The portable solar charging pack is an outdoor power bank that cleverly combines solar cells (A-grade single chip) and cloth packs. It has no built-in battery, so it is small in size, light in weight, and easy to carry, and there is no need to worry a

contact info

product description

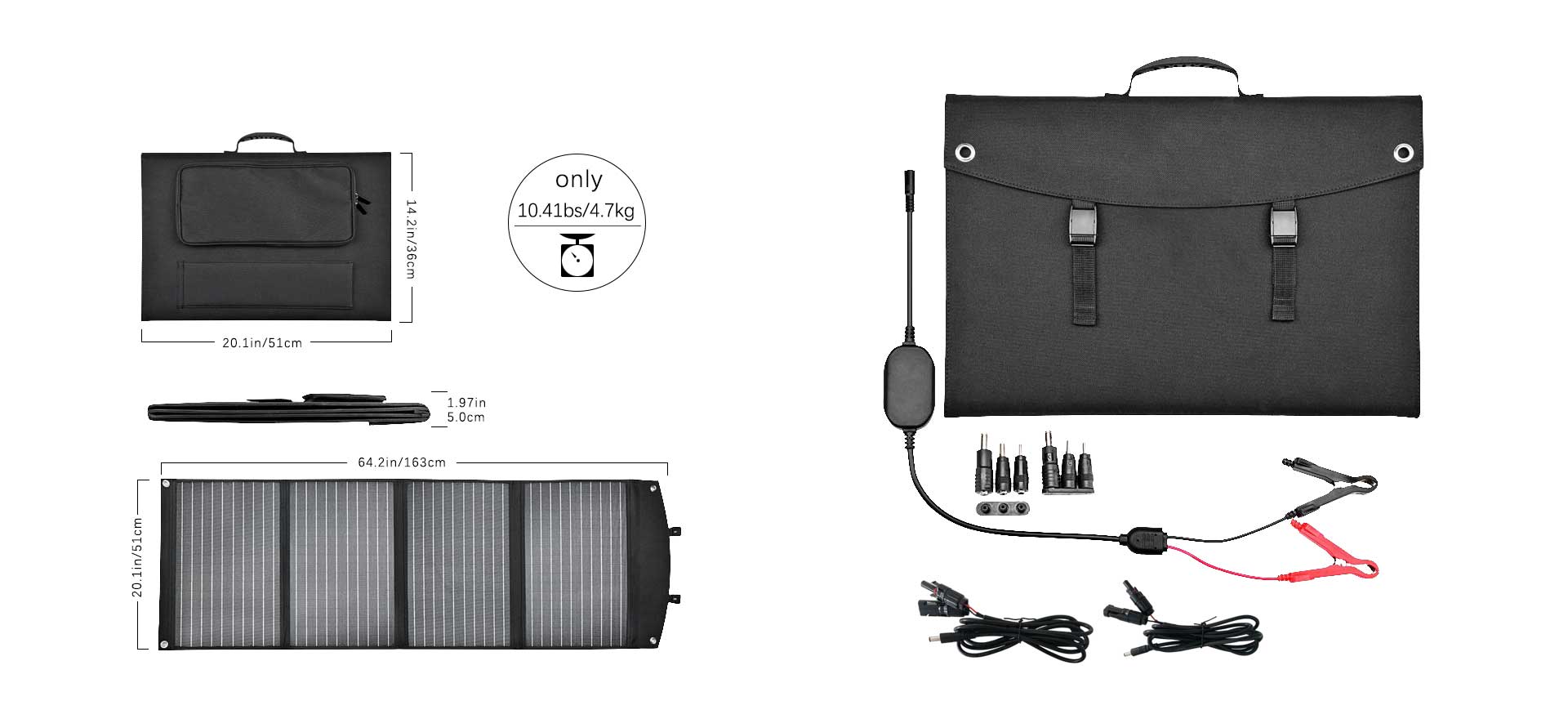

Portable solar panel1.jpg



The main parameters

Number of folds 2*7W 3*7W 4*7W 2*50W 3*50W 4*50W 6*50W
Power  (Pmax) 14W 21W 28W 100W 150W 200W 300W
Working Voltage(Vmp) 5V 5V 5V 18V 18V 18V 36V
Working Current(IMP) 2.1A 3.1A 4.2A 5.55A 8.33A 11.11A 8.33A
Open Circuit Voltage(Voc) 6V 6V 6V 21.6V 21.6V 21.6V 43.2V
Short Circuit Current(Isc) 2.31A 3.41A 4.62A 6.05A 9.16A 12.22A 9.16A
Module Efficiency(%) 23.00% 23.00% 23.00% 19.8% 19.8% 19.8% 19.8%
Tolerance Efficiency(%) ±3% ±3% ±3% ±3% ±3% ±3% ±3%

Different specifications and different power-folding bags can be customized according to requirements, and the optional range(10W-400W)

STC:     Light Intensity:1000W/M       Battery Temperature:25oC        Air quality=1.5



Structural properties

Material SUNPOWER solar cell Mono-crystalline solar cell
Dimension(mm) 489*290*5 652*290*5 875*290*5 1170*540 1870*540 2410*540 2950*540
Weight 330g 500g 660g 3340g 5000g 6600g 8300g
Surface panel frosted PET frosted PET frosted PET transparent PET transparent PET transparent PET transparent PET
Connector Voltage stabilizer box Voltage stabilizer box Voltage stabilizer box MC4 compatible MC4 compatible MC4 compatible MC4 compatible





Features


✔ weight: only 3.34 kg

✔ high output: 100W

✔ foldable

✔ efficient SunPower® solar cell technology

✔ Including USB and USB Type-C (45W) outputs

✔ universal 2 pin GX16 DC-connection

✔ adjustable standard system for optimum sun positioning

✔ durable canvas material

✔ Voltage: 18V

✔ Amperage: 5.55A

✔ connect with other solar panels for higher output

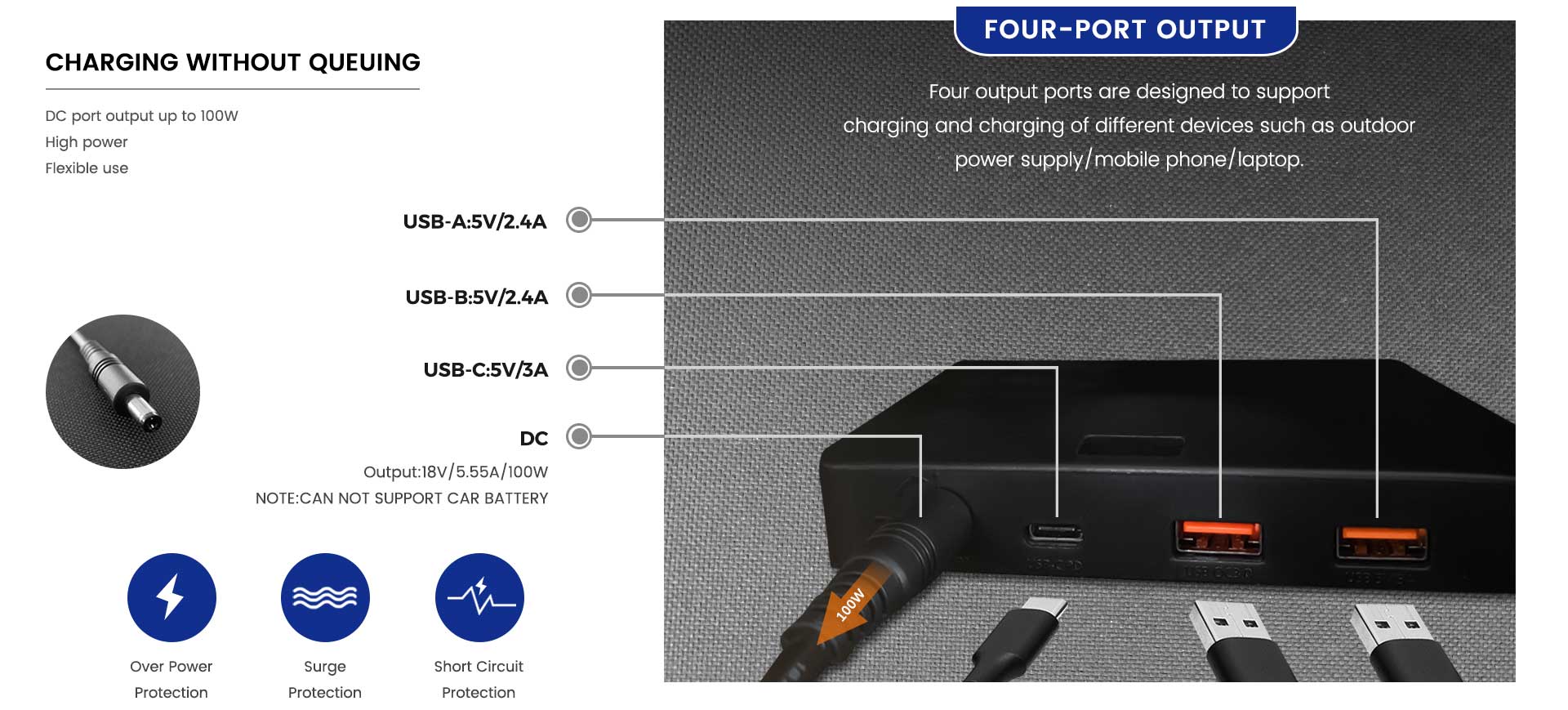

Portable solar panel3.jpg



More details


◆Maximum Power: 100W(can be designed)

◆Tolerance Wattage:(e.g. +/- 3%): +/- 3W

◆Fire Safety Class: Class A

◆Maximum System Voltage: 600V DC (UL)

◆Max Power Current (Imp): 5.55A

◆High performance: light transmittance up to 93%

◆Cell Efficiency: 22.3% (one of the highest)

◆Module Efficiency: 19.8% (one of the highest)

◆Maximum Fuse Rating: 10 A

◆Short-Circuit Current (Isc): 6.05 A

◆Temperature Range: -40⁰F to 185⁰F

◆Charge controller PV Wire: 10 AWG with spade connector easily fits into various charge controllers

◆Max Power Voltage (Vmp): 18 V

◆Open-Circuit Voltage (Voc): 21.6 V

◆Temperature Coefficients ⁰C:

◆ISC(%): +2.6

◆Im(%): +2.2

◆Vm(%): -60.8

◆Convenient size zipper pocket for wires and charge controller storage

◆Voc(%): -50.6

◆Prm(%): -.38

◆Certifications: CE, ETL and RoHS

◆Dimensions: Expanded 64.2X 20.1 X 0.40 inches

(According to power)

◆Weight:3.34kg(According to dimensions)

◆Easy side slide buckles

◆Water resistant

◆Durable rubber handle

Portable solar panel2.jpg

Advantages


High efficiency

The solar panel is based on the latest SunPower solar cell technology, whereby a high efficiency of 23% and a high loading speed can be achieved. The panel contains 2 adjustable standards, so that the solar panel can be placed in the ideal 90° angle to the sun.

Universal use

This Portable solar panel is the solution for anyone who wants to have a lightweight foldable power supply. Thanks to the universal 2 pin GX16 connection, the Portable solar panel can be connected to various professional battery systems. Almost all 14-18V batteries and batteries can be connected to the Portable solar panel via the additionally available adapter plugs. The Portable solar panel can also be directly connected to the battery system and the 500W portable power station via a DC adapter plug.

Lightweight and foldable

The Portable solar panel is lightweight for easy carrying. The panel contains a charging cable of 3 meters long with a universal 2 pin GX16 connection. The charging cable is located in the storage compartment at the back of the panel. The storage compartment can be closed with a zipper and contains enough space to store additional cables or accessories. The manual for the solar panel is printed in the storage compartment. The solar panel contains metal rings at the corner points, making it easy to hang or attach it to other objects. The lightweight solar panel is a mobile energy supply that is very useful for hiking trips, cycling, camping, sailing and expeditions. The solar panel is also ideal for temporary mounting on a motor home, caravan, motor boat or sailing yacht.

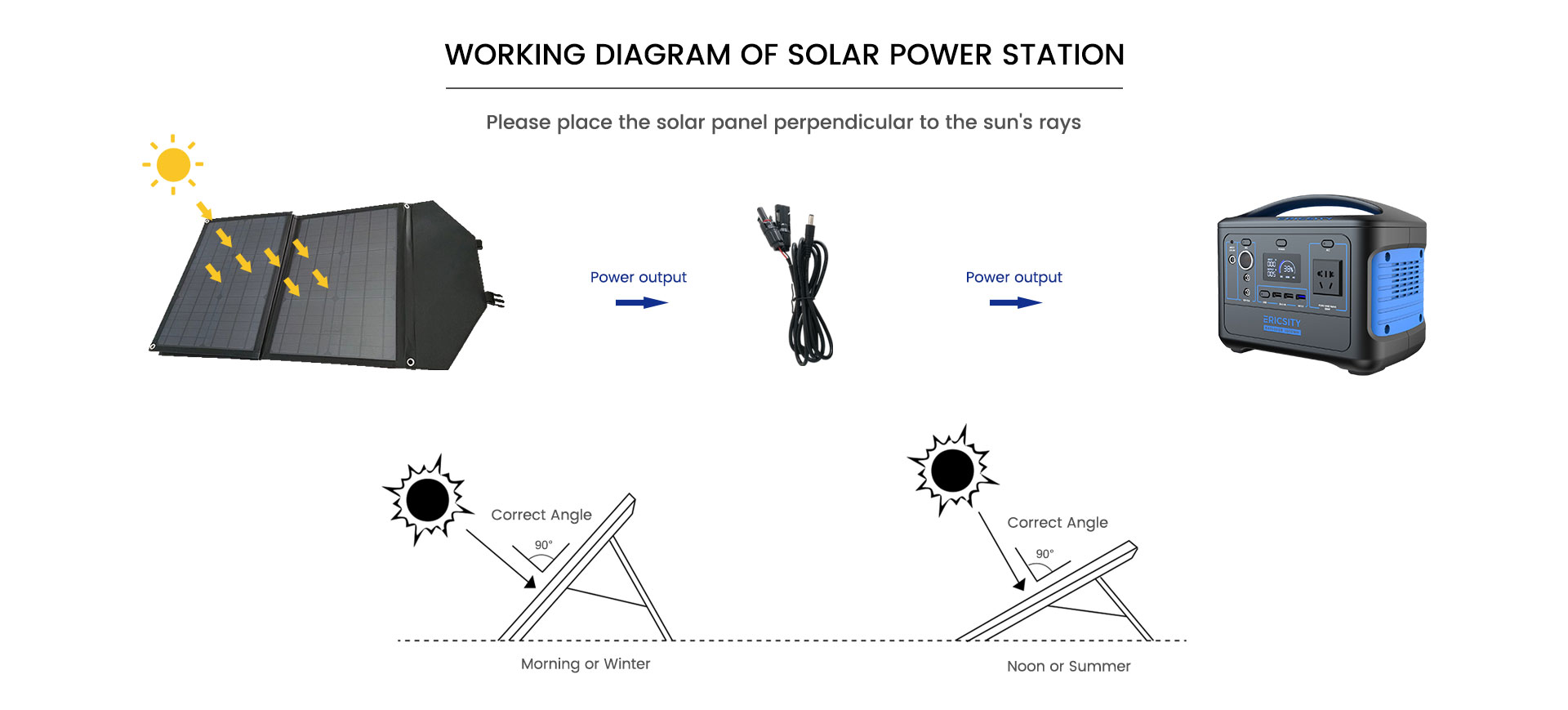

How to use the Portable solar panel


Portable solar panel4.jpg

Application




Portable solar panel5.jpg
