SOLAR GENERATOR

Solar Generator

The solar generator is a green energy product, which is different from the fuel generator. It has no noise and does not need to buy fuel, which saves time and money for buying fuel. It is a new generation of energy products, so it is equipped with a v

contact info

product description

solar genertaor00.jpg

Basic parameters

Capacity

2160Wh

 (43.2V 50Ah)

1534Wh

(25.2V 60.9Ah)

1002Wh

(21.6V, 46.4Ah)

550Wh

(21.6V, 25.5Ah)

290Wh

(14.4V, 20.3Ah)

167Wh

( 11.6Ah, 14.4V)

Cell Chemistry Lithium-ion Battery Li-ion NMC
Lifecycle

1000 cycles to 80%+

 capacity

500 cycles to 80%+ capacity
Management System BMS, Over Voltage Protection, Short Circuit Protection

AC Output

(110VAC, 60Hz)

2200W 1800W 1000W 500W 200W 100W
USB-A Output 5V, 2.4A 5V, 2.4A 5V, 2.4A 5V, 2.4A 5V, 2.4A 5V, 2.4A
USB-C Output 12V,10A 12V,10A 12V,10A 12V,10A 12V,10A 12V,10A
Car output - 24V, 10.5A 12V-30V (163W Max) 5V, 2.4A  12V, 10A 12V, 7A
Weight 43 lbs (19.5 kg) 35.2 lbs (15.5 kg) 22.04 lbs (10 kg) 13.8 lbs (6.3 kg) 7.5 lbs (3.4 kg) 3.97 lbs (1.8 kg)
Dimensions (LxWxD)

15.1 x 10.5 x 12 in

14 x 10.4 x 12.7 in

13.1 x 9.2 x 11.1 in

11.8 x 7.6 x 9.5 in

9.1 x 5.2 x 7.7 in

7.4 x 4.5 x 6.7 in

Operating Usage

Temperature

14-104F (-10-40℃) 14-104F (-10-40℃) 14-104F (-10-40℃) 14-104F (-10-40℃) 14-104F (-10-40℃) 14-104F (-10-40℃)
Certification CEC, DOE, FCC, QC3.0 CEC, DOE, FCC, QC3.0 CEC, DOE, FCC, QC3.0 CEC, DOE, FCC, QC3.0 CEC, DOE, FCC, QC3.0 CEC, DOE, FCC, QC3.0
Warranty 3years 24months 24months 24months 24months 24months

Support battery capacity customization



Features


✔ power up anytime, anywhere

✔ connect up to 8 devices simultaneously

✔ charge via mains or solar panels

✔ compact and portable (only 5.9 kg)

✔ capacity 500Wh (135200 mAh)

✔ Plug-and-go completely take the place of Gasoline Generator

✔ 230V (pure sine wave)

✔ MPPT (Maximum Power Point Tracking) for efficient solar charging

✔ pass-through charging

✔ silent and energy efficient due to intelligent fanless cooling system

✔ advanced lithium-ion battery technology (Li-ion NMC)

✔ can also be charged via DC car plug

✔ charge AC, DC and USB devices simultaneously

✔ intelligent BMS (battery management system)

✔ ideal for outdoor use

✔ 14-way security

✔ suitable for all electrical appliances up to 500W

✔ peak power 600W (15s)

✔ handy LED lamp function

✔ 3 x DC output

✔ 4 x USB output (incl. 60W USB Type-C)

✔ 1 x AC output

✔ output 500W continuously





More details




solar generator02.jpg

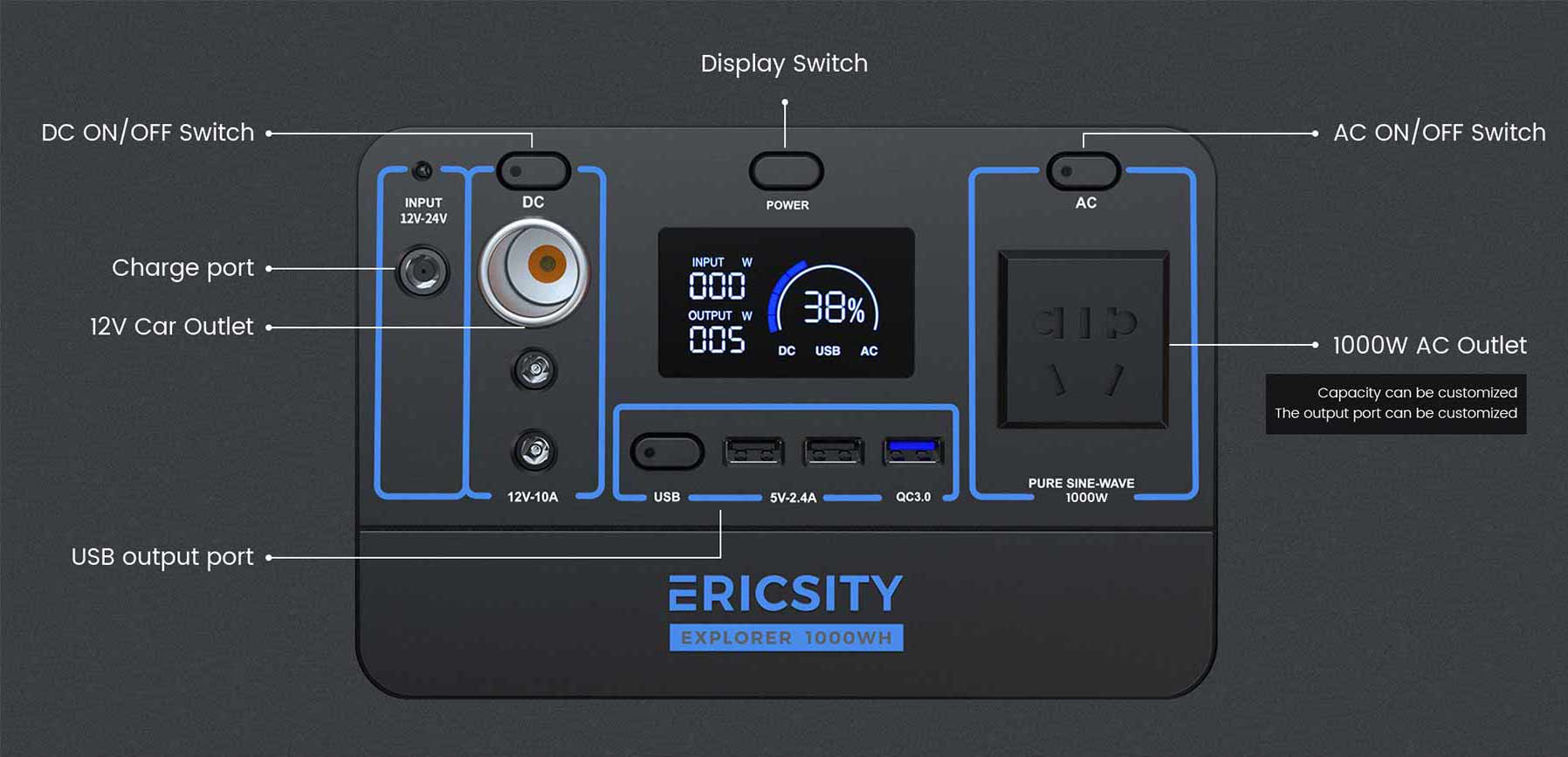

◆◆Ports◆◆

◆Input: AC Charging/PV

◆Input Port: 7.9*0.9mm DC 42V/160W

◆Outputs: 2*AC110V Ports, 1*12V9A DC Port

◆OCV 16V~68V /MAX.10A PV

◆Max Input Power MAX.500W./10A

◆4*5V3A USB-A Ports

◆1* 45W PD USB-C Port

==============================

◆◆Model: MP-X1500◆◆

◆Size: 13.6 x 7.5 x 12.4 in

◆Net Weight: 36.7 lbs

◆Operating Temperature: 0-40°C/10%-90%

==============================

◆◆Battery◆◆

◆LG Lithium Ion Battery Cell

◆Pack Capacity: 1500Wh/1000W

◆Lifecycles: 2500+ Cycles

◆Shelf-Life: Charge Every 3-6 Months

◆Management System: MPPT Charge Controller, Low Battery Protection

==============================

◆◆Safety By Design◆◆

◆Battery Management System (BMS) Enables Short Circuit Protection, Voltage Control, Temperature Control And More Advanced Safety Operations.

◆LCD Screen With Charge/Discharge And Battery Life Status Switch With Indicator Light For On/Off Output Port Charging

==============================

◆◆Package Includes◆◆

◆1*Portable Power Storage (X1500)

◆1*160W AC Wall Charger1*PV Solar Charging Cable (DC7909 To Solar Connectors)

◆1*User Manual

◆1*Certificate Of Qualification




Three ways to charge




FROM THE SUN】Recharge from the sun by connecting a compatible solar panel. Charge times are dependent on the size of the solar panel.

FROM THE WALL】Plug it into the wall. Fully recharges in 12 hours using the included 600W Power Supply AC Wall Charger.

FROM THE CAR】The solar generator can be charged by plugging into your 12V adapter using the  12V Car Charging Cable.



Application

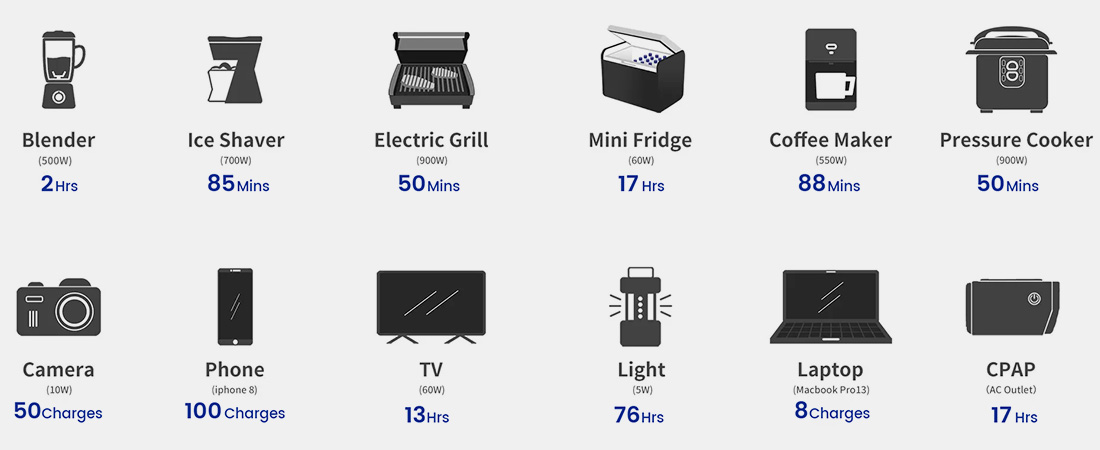

Application at home



solar generator005.jpg

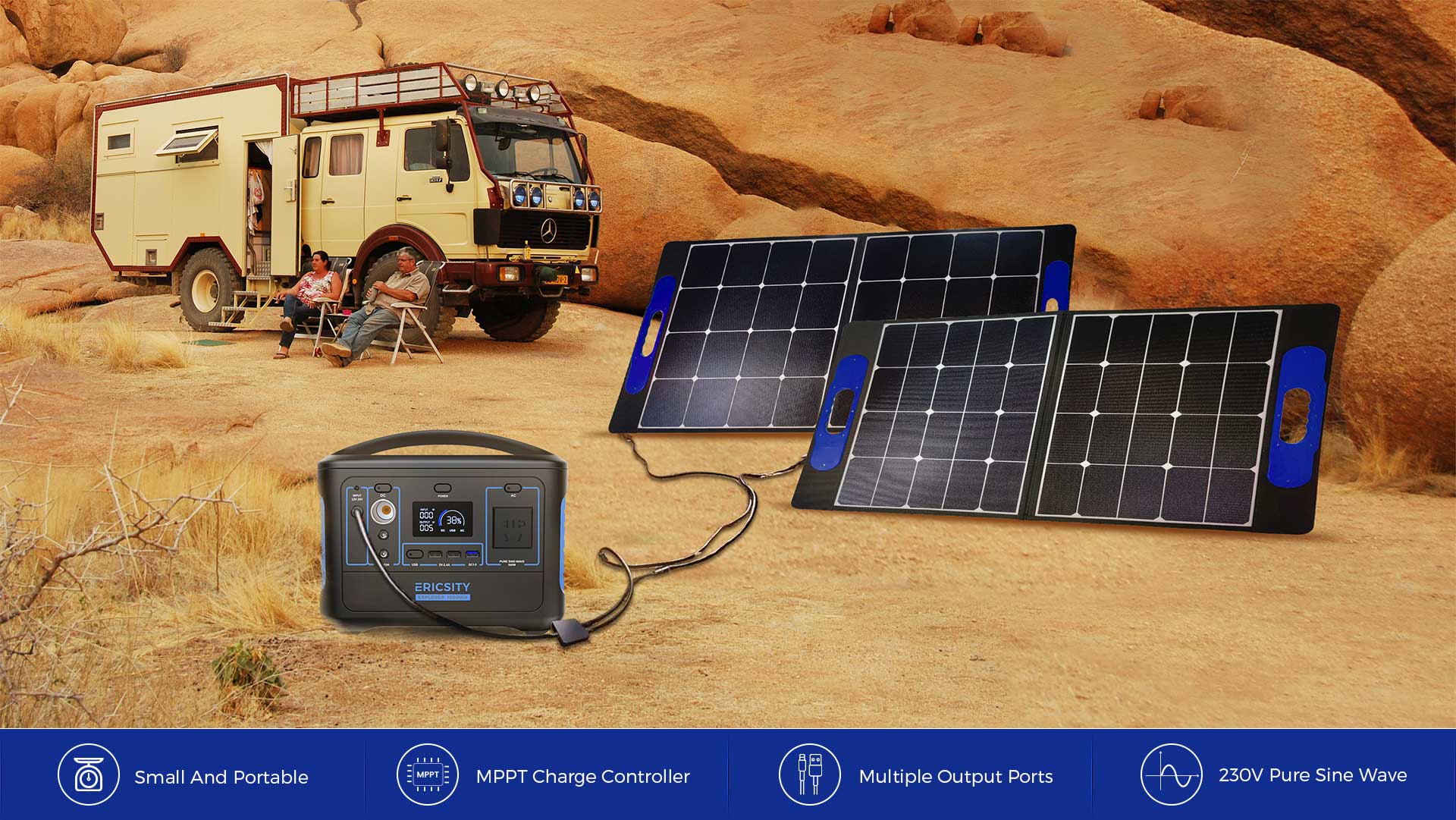

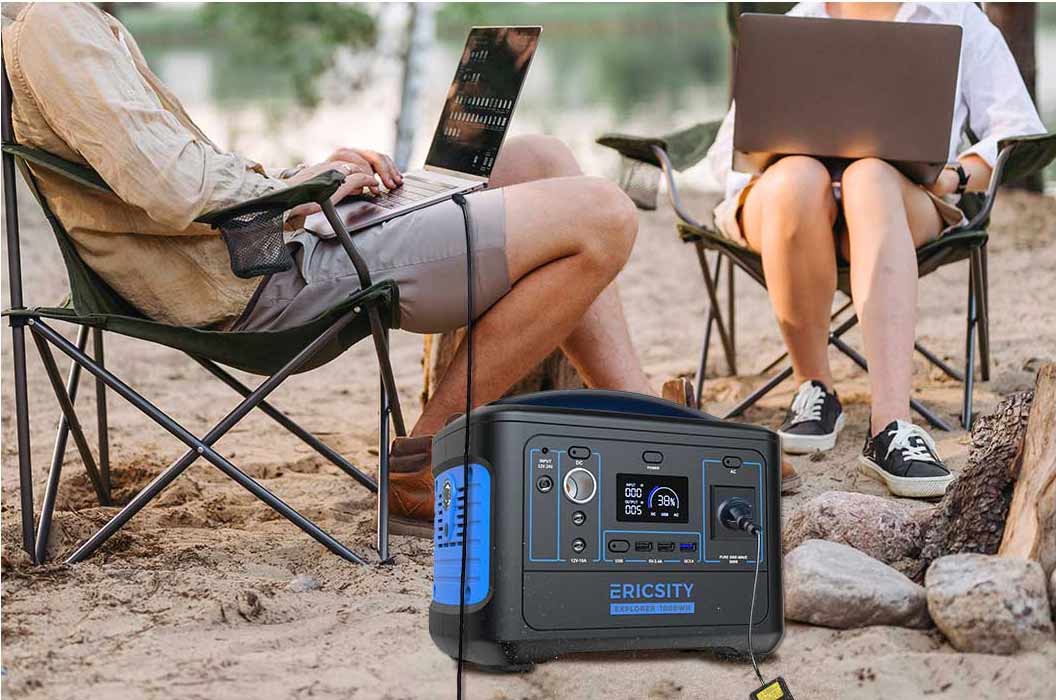

Application outdoor



solar generator01.jpg



Difference


Solar Generator VS Fuel Generator



Solar generator

Green】Captures energy directly from the sun instead of fossil fuel; No carbon dioxide is emitted.

No fuel Cost】No extra cost on fuel and maintenance.

Easy to Use】One click  to start the solar generator.

Quiet】No deafening rumblings, the world is so quiet.

Fuel generator

Noisy】Strong vibrations and thumping noises are disturbing

Air Pollution】Using gasoline to generate electricity will increase carbon dioxide emissions and make the greenhouse effect more serious

High Cost and  Maintenance】Need to spend $$$ for gasoline, changing spark plugs and maintenance

Hard to Start Up, Time Consuming】Multi-step operation is required, and attention should also be paid to the safety of the use process
