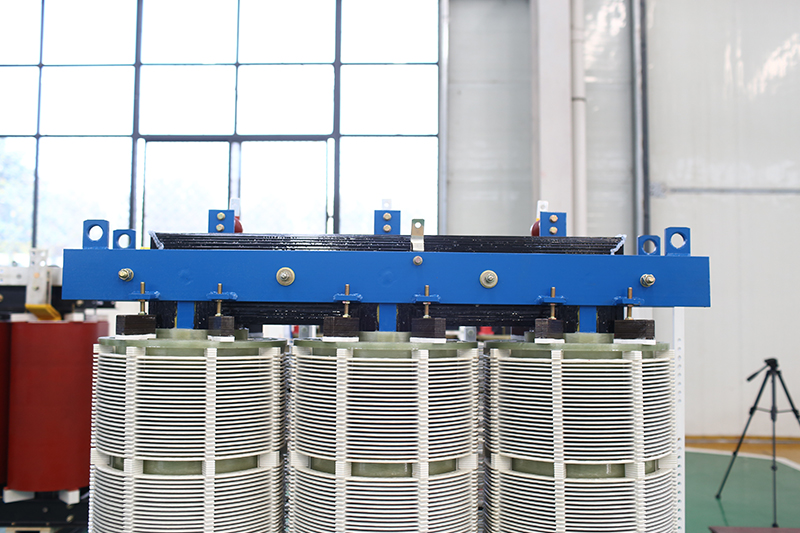

High-Efficiency and Eco-Friendly 3300kVA 35kV Dry-Type Rectifier Transformer
As the global power industry accelerates its transition toward green and energy-efficient technologies, the 3300kVA 35kV dry-type rectifier transformer has emerged as a core component across various sectors, including renewable energy, rail transit, and industrial electrolysis. With its oil-free insulation, advanced cooling systems, and smart monitoring capabilities, it delivers exceptional performance and sustainability.
Eco-Friendly Transformer Design
Oil-Free Insulation System: Utilizing epoxy resin or high-temperature resistant materials such as H-class NOMEX® paper (up to 220°C), this transformer eliminates the risks of oil leaks and fires, making it suitable for high-safety environments like data centers and hospitals.
Low Noise Operation: Acoustic optimization with multi-stage vibration damping and soundproof casing keeps operating noise below 55dB, significantly lower than traditional oil-immersed transformers. This feature is especially valuable in urban commercial zones and residential areas.

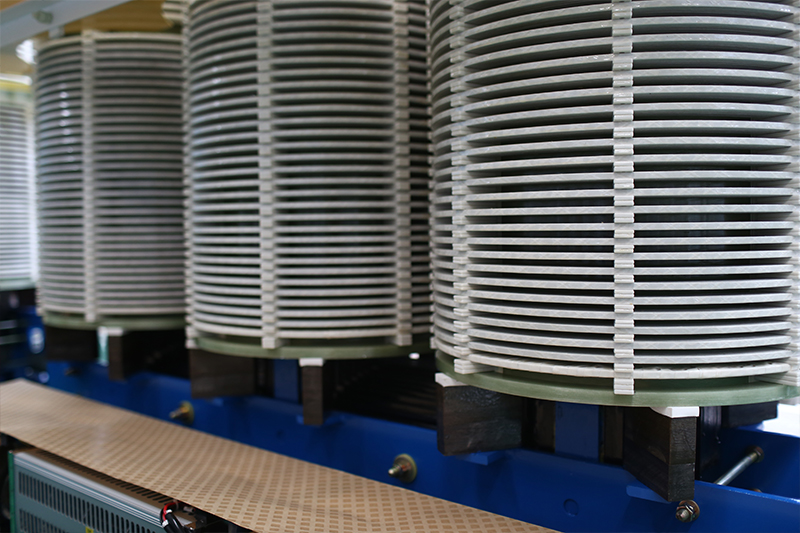

Low-Loss Core and Windings: By integrating high-permeability silicon steel cores with multilayer lamination and oxygen-free copper windings, the transformer reduces no-load losses by over 30% and load losses by up to 20%.
Recyclable Modular Structure: Components such as the core, windings, and enclosures are designed for disassembly and recycling, with material reuse rates exceeding 95%. Stainless steel housings enhance durability and lifecycle sustainability.
Performance and Efficiency Optimization
Compliance with International Standards: The transformer meets IEC 60076 and GB 20052 standards, ensuring minimal load and no-load losses and improved overall energy efficiency.
Enhanced Overload and Short-Circuit Resistance: Rigid winding structures and optimized magnetic design improve short-circuit withstand capability by over 50%, ensuring stability in demanding applications.
Smart Temperature Control: Equipped with precision sensors for real-time monitoring, the transformer can automatically trigger forced cooling or shutdown protection. Optional remote communication interfaces enable EMS integration for predictive maintenance.
Industrial Applications and Benefits
Wide Industrial Adaptability: Ideal for sectors like metallurgy, chemicals, mining, and transport, the transformer handles high power demands in harsh environments with custom voltage configurations.
Long-Term Economic Value: While the upfront investment is higher, reduced energy and maintenance costs lead to a higher ROI over the product lifecycle. Additionally, compliance with energy standards may qualify users for green incentives and tax benefits.
Smart Grid Integration: The built-in support for IoT monitoring and remote diagnostics helps industries optimize energy management and accelerate the transition to smart factory ecosystems.
The 3300kVA 35kV dry-type rectifier transformer is not just a high-performance electrical device—it’s a strategic investment in sustainability and industrial efficiency. Its advanced insulation, low-loss design, recyclability, and intelligent control make it a key enabler of green energy transformation. For businesses aiming to reduce carbon emissions and operational costs, this transformer is the optimal choice.
