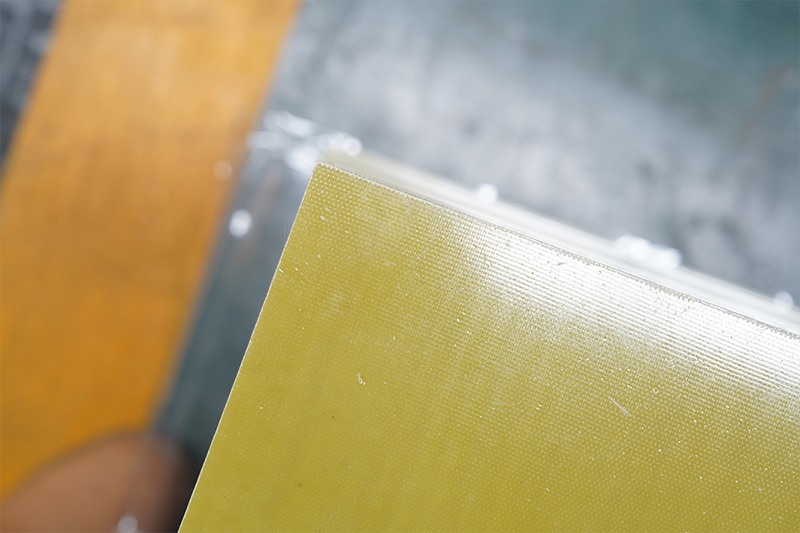

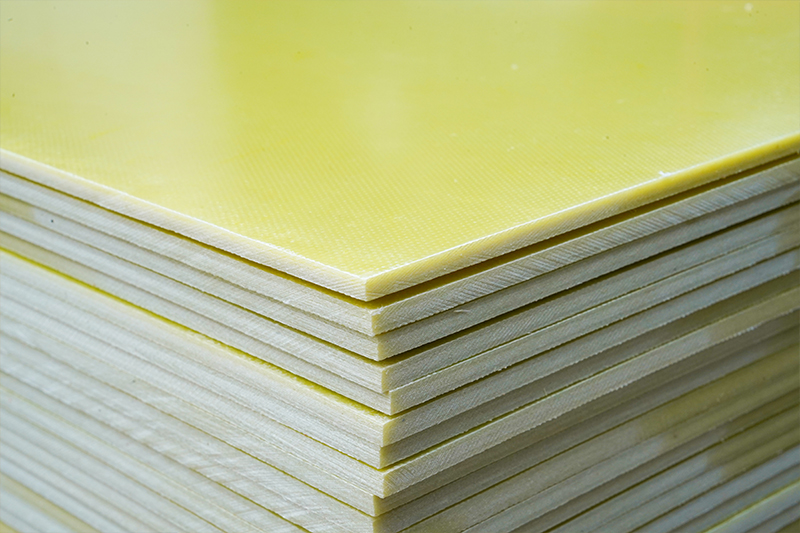

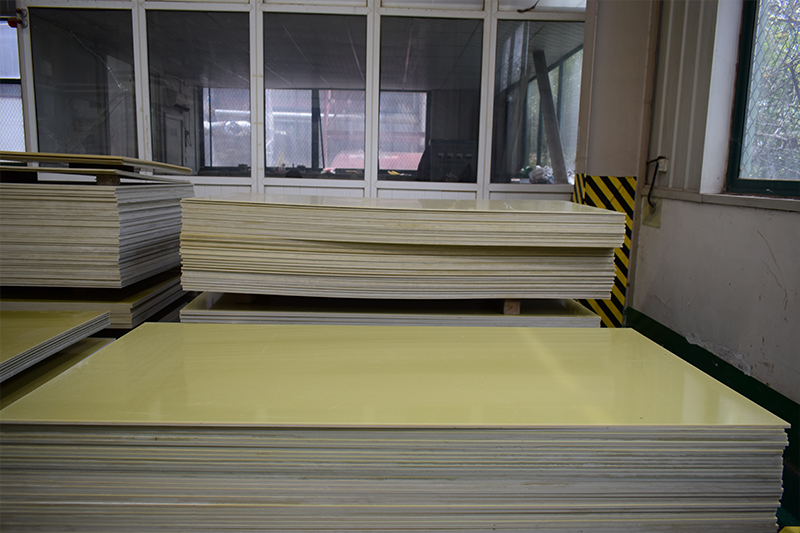

Why are most 3240 epoxy boards yellow?

In the field of electrical insulation materials, 3240 epoxy board is a commonly used material. It is mainly used in motors, transformers, power distribution equipment, welding fixtures, and electronic structural components. Many people wonder: why is most 3240 epoxy boards on the market yellow or yellowish-brown? This article will analyze this from the aspects of material composition, curing process, and resin chemical properties.

Why are 3240 Epoxy Boards Generally Yellow?

1. The Natural Color of the Raw Material Resin

The main substrate of 3240 epoxy board is epoxy resin and fiberglass cloth.

Before curing, epoxy resin is light yellow and transparent. After curing, the color of epoxy resin is usually:

Yellow

Yellowish-brown

Light brown

This color is determined by the resin molecular structure and is formed naturally during the curing process. Manufacturers do not add colorants to the epoxy resin.

Therefore, no matter how manufacturers adjust the process, the finished product mostly appears yellow or a similar shade.

2. Impact of Manufacturing Process

The manufacturing process of 3240 epoxy boards includes impregnation, lamination, and high-temperature curing.

The high-temperature curing stage typically takes place at 160-180℃. At this temperature, the epoxy resin and the curing agent undergo a chemical reaction.

This reaction produces slight browning. This browning further deepens the yellow hue of the 3240 epoxy board.

3. Industry Standards and Identification Requirements

The electrical industry promotes color standardization. Color standardization helps relevant personnel quickly identify material types.

Yellow or tan has become the industry standard for 3240 epoxy boards. Engineers and technicians can make a preliminary judgment on the material category by color. This identification method improves work efficiency and safety.

This color characteristic has been incorporated into several international and industry standards.

4. Performance and Stability

Research shows that some colorants and additives can affect the electrical properties and long-term stability of epoxy boards. Therefore, manufacturers tend to retain the natural color of the material and do not add large amounts of dye.

Naturally yellow 3240 epoxy boards exhibit a balanced and excellent level in heat resistance, electrical insulation, and mechanical properties.

Does the Color Change of 3240 Epoxy Board Affect Its Quality?

Normal color difference does not affect product performance, but the following situations may indicate quality problems:

Excessively dark color: This may result from over-curing or substandard resin quality.

Obvious blackening: This may be caused by high temperature burn during production.

Uneven color: This may be caused by unstable gel content during production.

Purchasing personnel should choose reputable manufacturers and pay attention to whether the product color is uniform.

FAQs

Q1: Can the color of 3240 epoxy board be customized?

A1: Yes, it can be customized. However, customization requires adjusting the formula, which may affect material performance and increase production costs. Most manufacturers only offer standard yellow products.

Q2: Does color depth indicate quality difference?

A2: Color depth does not directly equate to quality difference. Color differences may be affected by production batch, curing degree, and raw material source. Color cannot be used as a sole basis for quality judgment, and product quality must be evaluated based on technical parameters.

Q3: Will yellow epoxy board change color over time?

A3: All epoxy materials will undergo slight discoloration over time. This phenomenon is normal aging. If there is significant discoloration, it may be caused by excessive exposure to ultraviolet light or high temperature.

Q4: Are there completely colorless 3240 epoxy boards?

A4: Completely colorless and transparent epoxy boards require different resin systems and manufacturing processes. Such products are not considered standard 3240 epoxy boards.

The yellow color of 3240 epoxy boards is a result of the combined effects of raw material properties, manufacturing processes, industry standards, and cost-effectiveness. Yellow 3240 epoxy boards provide reliable electrical insulation and mechanical support, and their distinctive appearance has become a distinguishing feature in the industry.
