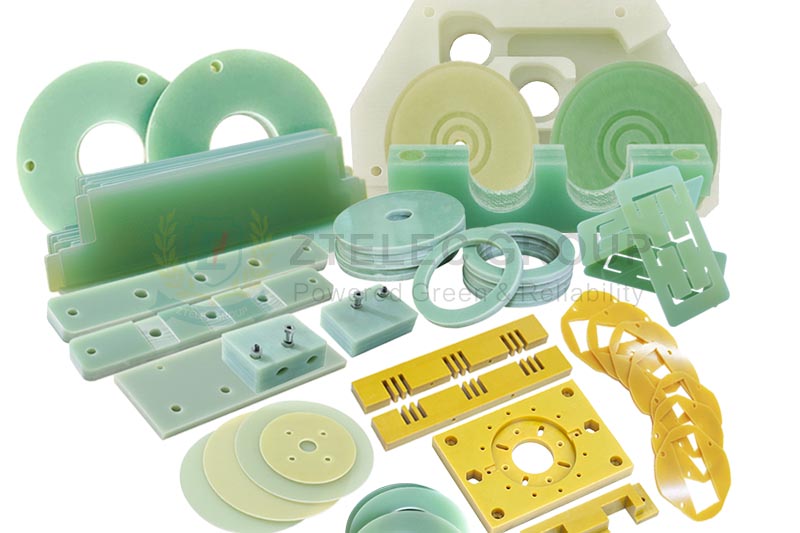

How to Choose a CNC Machining Supplier for FR4 Machined Parts? A Comprehensive Analysis of Precision and Efficiency

In the manufacturing of electronic components, insulating parts, and high-strength structural parts, FR4 (epoxy fiberglass cloth laminate) has become one of the most widely used composite materials due to its excellent mechanical properties, electrical insulation, and heat resistance. However, FR4 material has characteristics such as high hardness, easy dust generation during processing, and high tool wear, thus placing high demands on its CNC machining process.

Choosing a suitable CNC machining supplier for FR4 machined parts not only affects the final machining accuracy of the product but also impacts the production cycle and cost. This article introduces how to evaluate and select a machining service provider from the perspectives of precision control and machining efficiency.

Requirements for CNC Machining Suppliers for FR4

FR4 is a material made of epoxy resin and fiberglass cloth composite pressing. Its machining process has the following characteristics:

♦ Rapid tool wear: Fiberglass has a strong abrasive effect on tools, resulting in a short service life for ordinary high-speed steel tools.

♦ Prone to burrs and delamination: If cutting parameters are not set properly or the tool is not sharp enough, burrs or delamination may occur at the material edges.

♦ Dust generation during processing: Dust is generated during processing. If not cleaned promptly, it may affect machining accuracy and equipment lifespan.

♦ Dimensions may be affected by heat: Cutting heat may cause slight deformation of FR4, thus affecting product dimensional accuracy.

Therefore, CNC manufacturers processing FR4 need to possess appropriate equipment, process experience, and dust management measures.

Machining Accuracy and Consistency Capability

1. Dimensional Control Capability

FR4 CNC manufacturers with sufficient machining capabilities can typically achieve the following accuracy standards:

Dimensional tolerances can be controlled within ±0.05mm or higher.

Good dimensional consistency of batch-processed products.

Machining accuracy of holes, slots, steps, and other structures meets drawing requirements.

2. Inspection Methods

When selecting a manufacturer, pay attention to whether they are equipped with the following inspection equipment and processes:

Common measuring tools such as digital calipers and micrometers

Inspection equipment such as height gauges and projectors

Full inspection or sampling inspection processes before batch shipment to ensure product quality

Processing plants lacking inspection procedures have a relatively higher probability of product problems.

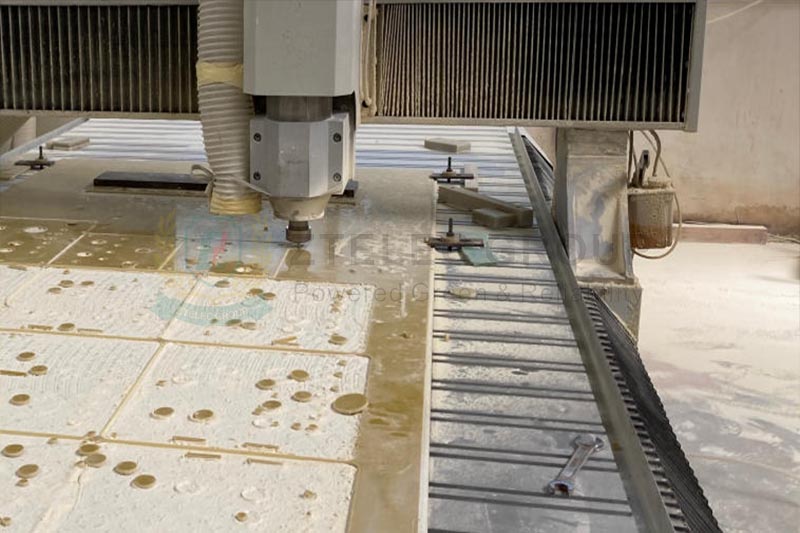

CNC Equipment and Process Compatibility

FR4 machining is not simply a replacement for metalworking; the compatibility of equipment and processes directly impacts machining quality. Manufacturers with sufficient machining capabilities typically possess the following characteristics:

Equipped with multi-axis CNC machining centers (e.g., 3-axis, 4-axis) to meet the machining needs of different structures

Adjusted parameters such as spindle speed and feed rate according to the properties of FR4 material

Uses carbide or coated tools to reduce tool wear and improve machining results

Equipped with dry cutting or dust removal systems to reduce the impact of dust on the machining process and equipment

Machining Efficiency and Delivery Capability

For foreign trade clients, power projects, and equipment suppliers, the stability of delivery time and the manufacturer's responsiveness are equally important. When choosing an FR4 CNC machining manufacturer, consider the following:

Whether they possess automated machining equipment to improve machining efficiency

Whether they can support flexible scheduling of batch, small batch, and sample orders

Whether they can quickly assess the process based on customer drawings and provide a reasonable quote

Whether they have the ability to handle urgent orders or project-based deliveries

Manufacturers with mature production processes can usually shorten delivery cycles while ensuring machining accuracy.

Integrated Materials and Processing Capabilities

Choosing a manufacturer that integrates materials and processing offers the following advantages:

Controllable raw material sourcing helps ensure product quality.

The manufacturer can recommend suitable FR4 material grades based on the customer's application scenario.

Reduced intermediate steps may lower overall processing costs.

Greater ease of long-term bulk cooperation.

For applications such as transformers, switchgear, and electronic equipment, integrated manufacturers have a better understanding of the product's structure, insulation performance, and assembly requirements, thus providing processing solutions that better suit practical applications.

Engineering Support and Customization Capabilities

FR4 CNC machining manufacturers with sufficient technical capabilities typically offer more than just machining according to drawings; they also provide the following engineering support:

Optimization suggestions for product structure to improve machining feasibility and product performance

Analysis of parameters such as hole positions, chamfers, and thickness tolerances to reduce machining risks

Material selection advice based on different application scenarios

Experience in overseas projects, enabling them to support export clients.

Manufacturers with these comprehensive service capabilities are better suited for establishing long-term partnerships, especially for export-oriented clients.

High-precision machining results depend on the proper matching of equipment conditions, tool selection, and process parameters. Efficient delivery is related to production processes, workshop management, and accumulated machining experience. When selecting a manufacturer, it is recommended to verify their actual machining capabilities through sample production and pay attention to their handling of details such as dust and burrs to ensure that the performance, appearance, and delivery cycle of FR4 parts meet expectations.
