11kV Compact Substations for Commercial Buildings: Selection Guide, Technical Specifications & Compliance Procurement Checklist

With the continuous growth of commercial complexes, shopping malls, high-rise office buildings, hotels and data center projects, 11kV Compact Substations have become one of the most mainstream medium-voltage power distribution solutions for commercial buildings. Compared with traditional civil-engineered substations, prefabricated container substations feature shorter construction cycles, smaller land occupation, convenient installation and high maintenance efficiency.

For project owners, EPC general contractors, design institutes and procurement managers, proper selection of substation capacity, structural type, switchgear and certification standards not only relates to project investment costs, but also directly affects power supply reliability and operation & maintenance expenses for over 20 years in the future. This article systematically introduces the selection methods, key technical parameters, international standard requirements, FOB export price references and core procurement verification points of 11kV compact substations.

What is an 11kV Compact Substation?

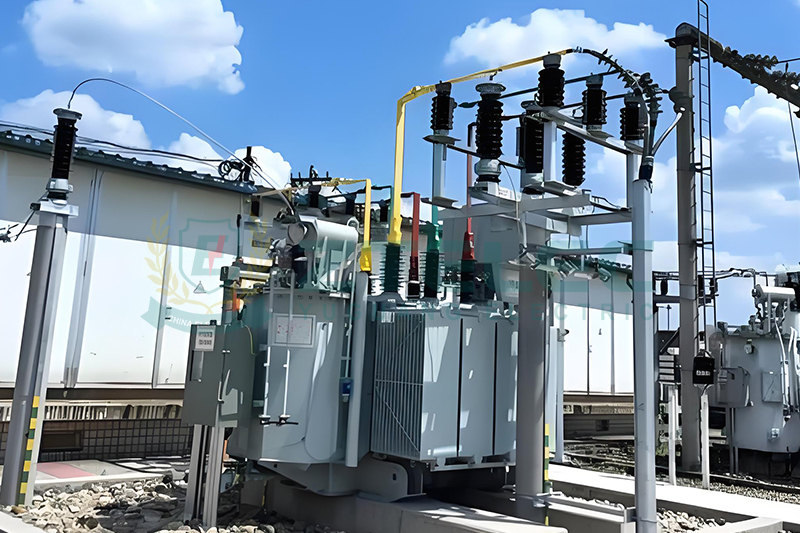

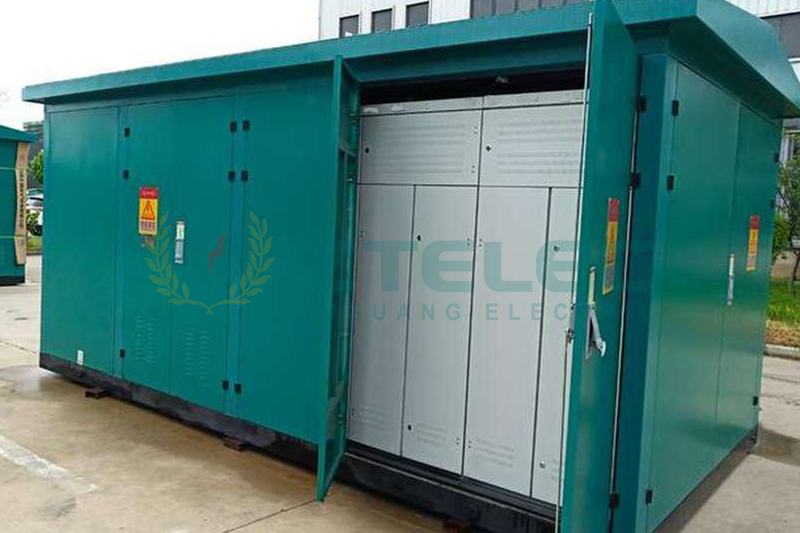

11kV Compact Substation, also known as prefabricated substation, container substation or Compact Transformer Substation, is a complete power supply equipment integrating high-voltage switchgear, distribution transformer and low-voltage distribution system inside a single enclosure. It is fully designed, assembled, wired and tested in factory before being transported as a whole to the project site for installation.

This modular structure greatly reduces on-site construction workload, especially applicable for commercial real estate, industrial parks, new energy projects and urban power grid construction.

Core Advantages of 11kV Prefabricated Substations

Shorter Construction Period
Pre-installation and functional tests are completed before factory delivery. Only foundation construction, cable connection and commissioning are required on-site to put equipment into operation, cutting the overall construction cycle by 50% to 70%.

Land Space Saving
A typical 630kVA European type substation covers an area of approximately 3.5m×2.2m, saving a large amount of building space versus traditional power distribution rooms, ideal for urban commercial projects.

Convenient Operation & Maintenance
Independent compartments for high-voltage, transformer and low-voltage sections avoid mutual interference during maintenance, improving operational safety and servicing efficiency.

Compliant with Global Market Standards
Customizable designs complying with IEC, IEEE, ANSI, GB and local grid standards, widely exported to Europe, the Middle East, Africa, Southeast Asia and Latin America.

Capacity Selection Method for 11kV Substations in Commercial Buildings

Transformer capacity selection is the core link of power distribution design for commercial buildings. Undersized capacity leads to long-term equipment overload, while oversized capacity raises initial investment and no-load loss costs.

Step 1: Calculate Total Building Load

First sum the installed capacity of lighting, air conditioning, elevators, fire protection facilities, data rooms, catering equipment and other power loads, then confirm the demand factor in accordance with local design codes.

The comprehensive demand factor for commercial buildings generally ranges from 0.65 to 0.80.

Step 2: Calculate Apparent Power

Formula for apparent power (kVA):

Apparent Power = Maximum Demand Active Power (kW) ÷ Power Factor (cosφ)

Commercial projects usually adopt a power factor of 0.85 to 0.90 for calculation; the figure can be lifted above 0.92 after installing reactive power compensation systems.

Step 3: Reserve Expansion Margin

A capacity margin of over 20% is recommended to accommodate future business expansion and load growth.

Final Calculated Capacity = Apparent Power × 1.2

Select the next higher standard capacity grade afterwards.

Step 4: Matching Standard Capacity Levels

Comparative Analysis: European Type vs American Type Prefabricated Substation

11kV compact substations in the global market fall into two main structural categories: European type and American type.

For commercial projects such as shopping malls, hotels and office buildings, European type substations are generally the optimal solution. Their advantages in post-operation maintenance and capacity expansion effectively reduce full-lifecycle costs.

Core Technical Specifications of 11kV Compact Substations

High-Voltage Switchgear System

Ring Main Units (RMU) or load break switch-fuse combinations are widely adopted for commercial buildings.

RMU configuration is suggested for dual-power supply or high-reliability projects to realize ring network power supply and rapid fault isolation.

Typical technical parameters:

Rated voltage 12kV; rated current 630A; short-time withstand current 20kA/1s; peak withstand current 50kA.

Distribution Transformer Configuration

Oil-immersed distribution transformers complying with IEC 60076 series standards are commonly equipped inside prefabricated substations.

For export projects, close attention should be paid to energy efficiency class, insulating medium and temperature rise indicators.

Energy-saving transformers meeting IEC 60076-20 AAA efficiency grade are prioritized to cut long-term operating expenses.

Natural ester insulating oil can replace traditional mineral oil in crowded public areas or underground spaces to enhance fire resistance and environmental safety.

Cooling Method Selection

ONAN oil natural air natural cooling fits most commercial building projects.

ONAF forced air cooling is adopted for high-load operation or poorly ventilated environments to improve overload capacity and heat dissipation performance.

Low-Voltage Power Distribution System

The standard LV side voltage is 400V three-phase four-wire system, normally fitted with ACB air circuit breakers or MCCB molded case circuit breakers.

Modern commercial buildings universally require integrated reactive power compensation systems, with reserved interfaces for APF active power filters or SVG static var generators to meet power quality control requirements.

Major International Standards for 11kV Compact Substations

For EU-based projects, manufacturers shall provide CE Declaration of Conformity (DoC) and relevant test reports, ensuring full compliance with the latest energy efficiency regulations.

2026 FOB Export Price Reference for 11kV Compact Substations

Below are reference FOB price ranges for mainstream European type prefabricated substations manufactured in China:

Extra costs will be incurred for natural ester insulating oil, intelligent monitoring systems, SCADA remote communication modules, KEMA type test reports and special enclosure protection class requirements.

Procurement Verification Checklist for 11kV Prefabricated Substations of Commercial Buildings

Technical Specification Verification

Verify matching between system rated voltage and equipment rated voltage; complete load calculation and reserve a minimum 20% capacity margin; clarify HV side switchgear configuration scheme; check rated current of main LV circuit breaker; confirm cooling method matches installation environment; define insulating oil type; finish design of reactive power compensation and harmonic suppression; supply protection setting parameters to the manufacturer.

Certification & Standard Compliance Verification

Confirm equipment complies with IEC 62271-202; verify transformers conform to IEC 60076 series; check RMUs meet IEC 62271-200 requirements; audit validity of CE, SASO, SONCAP and other certificates; confirm ISO 9001 quality management system certification; request complete routine test reports and type test reports.

Commercial Terms Verification

Check itemized breakdown of equipment price; confirm production lead time and delivery schedule in writing; review export packaging and transportation plan; clarify scope of on-site commissioning service; confirm spare parts supply plan; define warranty period; specify FAT Factory Acceptance Test requirements within the contract.

How to Evaluate 11kV Compact Substation Suppliers

When selecting suppliers, quotation level should not be the sole judging factor; technical capability and quality control system shall be prioritized.

Manufacturers holding official third-party type test reports issued by authoritative labs including CESI, KEMA, CPRI are preferred.

Inspect in-house manufacturing capacity of core components such as transformer core, windings and switchgear. Higher self-production ratio usually guarantees more consistent product quality.

For large-value international projects, third-party factory audit or production supervision is recommended to mitigate project risks.

11kV compact substations have become an indispensable component of power distribution systems for modern commercial buildings. Proper capacity sizing, reasonable equipment configuration and IEC-compliant design solutions can not only guarantee power supply safety, but also significantly reduce full-lifecycle operation costs of the project.

For commercial projects including shopping malls, office towers, hotels and data centers, European type prefabricated substations are recommended. Select manufacturers with complete IEC certification packages and mature export experience to ensure smooth project delivery and stable long-term equipment operation.
