500 kVA Compact Substation: Design, Configuration and Cost Guide for Industrial Projects

2026-06-11 16:51 | By: ZTELEC-www.ztelecgroup.com | 90click

The 500 kVA compact substation has become one of the most widely used power distribution solutions for industrial facilities, renewable energy projects, logistics centers, and municipal infrastructure developments. Its integrated design combines high-voltage switchgear, a distribution transformer, and low-voltage switchboards into a factory-assembled enclosure, significantly reducing installation time and civil construction costs.

Rated Transformer Capacity	Typical Voltage Level	Standard Lead Time	Design Service Life	Compliance Standard
500 kVA	10/0.4 kV	≤20 Weeks	30 Years	GB/T 17467

What Is a 500 kVA Compact Substation?

A compact substation, also known as a prefabricated substation, package substation, or box-type substation, is a complete power distribution unit manufactured and tested in the factory before delivery. It integrates medium-voltage equipment, transformers, and low-voltage distribution systems into a single enclosure.

Compared with traditional masonry substations, a 500 kVA compact substation can reduce occupied space by more than 60%, shorten on-site installation from several months to just a few days, and allow easy relocation when project requirements change.

International projects generally follow IEC 62271-202 requirements, while Chinese domestic projects comply with GB/T 17467, GB 3906, and related standards.

Typical Applications:

Industrial factories and production plants, photovoltaic and energy storage stations, municipal street power supply systems, logistics parks, ports and terminals, mining operations, temporary construction power, and emergency backup systems.

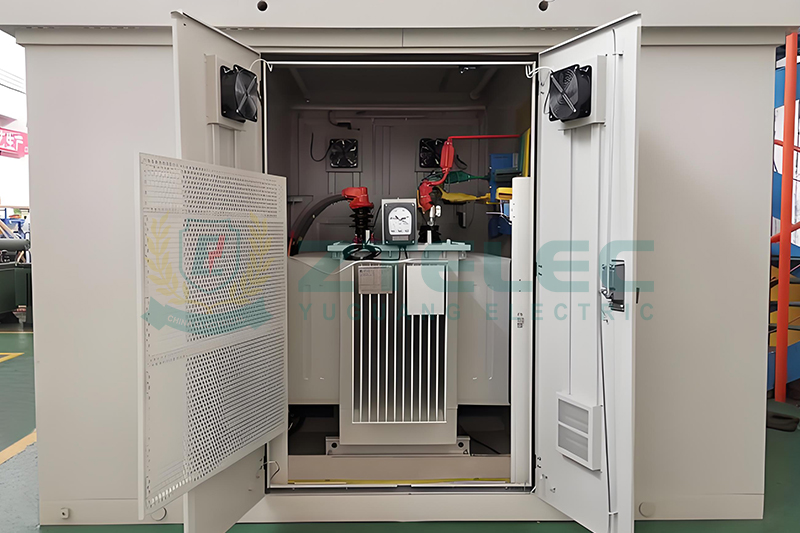

500 kVA compact substation

Standard Configuration of a 500 kVA Compact Substation

A typical 500 kVA package substation consists of three functional compartments: High-voltage compartment (HV), transformer compartment, and low-voltage compartment (LV).

Section	Main Equipment	Typical Parameters	Applicable Standards
HV Compartment	RMU or KYN Switchgear	12–24 kV, 630 A, 16 kA/3 s	IEC 62271-200
Transformer Compartment	Oil-immersed or Dry-type Transformer	500 kVA, 10±2×2.5%/0.4 kV, Dyn11	IEC 60076 / GB 1094
LV Compartment	Fixed or Withdrawable MCC	400 V, 2500 A Busbar, 50 kA	IEC 61439-1/2
Enclosure	Galvanized Steel, Aluminum, FRP	IP34D, Corrosion Class C4/C5	IEC 60529
Auxiliary System	Ventilation, Lighting, Heaters	Automatic Temperature Control	GB/T 17467

Oil-Immersed vs Dry-Type Transformer Selection

The transformer is the core component of the compact substation. Selecting the correct transformer technology affects energy efficiency, maintenance costs, and installation flexibility.

Comparison Item	Oil-Immersed Transformer	Dry-Type Transformer
No-load Loss	≤680 W	≤750 W
Load Loss	≤5,000 W	≤5,300 W
Fire Protection	Requires Oil Containment	No Oil Required
Maintenance	Periodic Oil Testing	Minimal Maintenance
Price Level	Reference Cost	15–25% Higher
Typical Applications	Outdoor Industrial Sites	Buildings and Humid Areas

Electrical Design and Engineering Calculations

Accurate load calculations are essential during the design stage of a 500 kVA compact substation.

Low-Voltage Rated Current Calculation

I = S ÷ (√3 × U)

I = 500,000 ÷ (1.732 × 400)

I ≈ 721.7 A

Therefore, the main low-voltage incoming breaker should generally be rated at 800 A or higher, considering diversity and future expansion factors.

Assuming a transformer impedance of 4%, the low-voltage three-phase short-circuit current is approximately 18 kA. The LV switchboard busbar should therefore provide a short-circuit withstand capability of at least 50 kA.

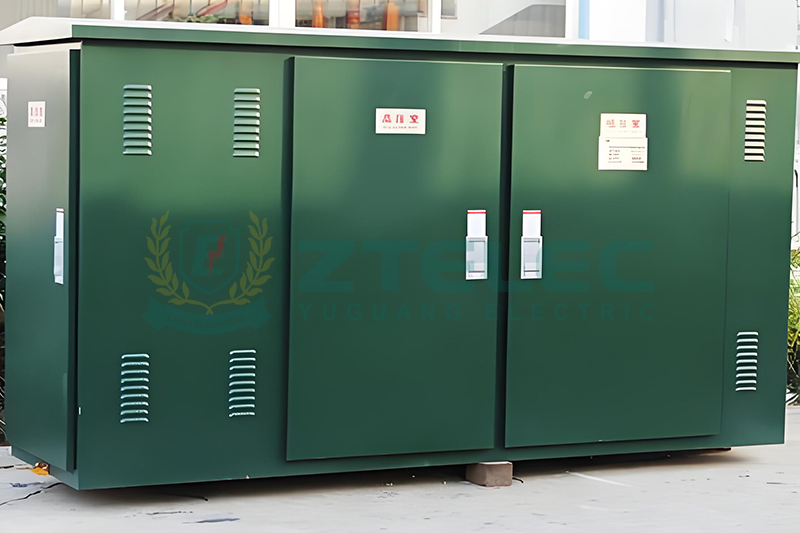

500 kVA prefabricated substation

Key Engineering Considerations

Transformer impedance voltage is typically 4% and directly influences fault current calculations.

Total harmonic distortion should remain below 5%, with harmonic filters installed if necessary.

Power factor should be maintained above 0.90. Capacitor banks ranging from 50 kvar to 100 kvar are commonly used for correction.

TN-S or TN-C-S grounding systems are generally recommended, with grounding resistance below 4 Ω and Type I surge protection devices installed.

Outdoor applications should use a minimum enclosure protection rating of IP34D, while coastal environments may require IP44 or higher.

Installation and Civil Foundation Requirements

One of the major advantages of compact substations is the reduced civil construction workload.

Item	Technical Requirement	Remarks
Foundation Size	Approximately 3500 × 2200 mm	Depends on Manufacturer Design
Foundation Capacity	≥3500 kg	C25 Concrete Minimum
Elevation	≥300 mm Above Ground	Flood Prevention
Cable Entry	Bottom Cable Trench	HV Cable ≥150 mm²
Operating Clearance	≥1200 mm	Front Access Side
Lifting Requirement	2500–3500 kg Total Weight	5-ton Crane Recommended

Important: Verify underground utility routes before installation. In seismic regions with intensity levels above Grade 8, seismic calculation reports should be provided according to applicable standards.

500 kVA Compact Substation Price Analysis

The following FOB price ranges are based on mainstream Chinese manufacturers and exclude local taxes, grid connection fees, and destination installation costs.
