11kV Dry Type Transformer: Technical Guide, Standards and China Manufacturer Selection

An 11kV dry type transformer is a medium-voltage transformer that uses air or epoxy resin insulation instead of transformer oil. It provides excellent fire safety, low maintenance costs, environmental protection, and reliable performance. As a result, it is widely used in commercial buildings, industrial plants, renewable energy projects, hospitals, airports, data centers, and urban substations.

The global demand for safe and energy-efficient power distribution equipment continues to grow. Therefore, the 11kV dry type transformer has become one of the most popular transformer solutions in IEC-standard markets. Compared with traditional oil-filled transformers, dry-type designs eliminate oil leakage risks and significantly reduce fire hazards.

Today, countries across Southeast Asia, the Middle East, Africa, Europe, and Oceania increasingly specify 11kV cast resin transformers for new infrastructure projects. Understanding transformer specifications, efficiency classes, certifications, and manufacturer capabilities helps buyers make informed purchasing decisions.

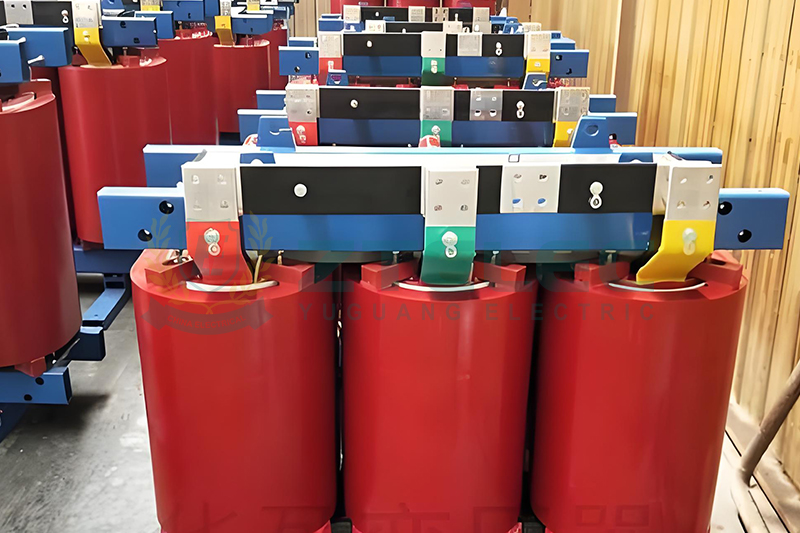

What Is an 11kV Dry Type Transformer?

An 11kV dry type transformer is designed with a primary voltage of 11kV and a secondary voltage typically rated at 400V, 415V, or 0.4kV. Unlike oil-immersed transformers, it uses air circulation or epoxy resin insulation to provide electrical insulation and cooling.

Because there is no insulating oil inside the transformer, environmental contamination risks are minimized. Furthermore, dry type transformers are easier to install indoors and require less maintenance throughout their service life.

Main advantages include:

✔ High fire safety performance

✔ Oil-free and environmentally friendly design

✔ Reduced maintenance requirements

✔ Excellent moisture resistance

✔ Suitable for indoor installations

✔ Long operational life

Common Applications of 11kV Dry Type Transformers

The 11kV dry type transformer is suitable for a wide range of applications. In addition, its compact structure and high reliability make it ideal for projects where safety and space efficiency are important.

11kV vs 10kV Transformer: Key Differences

Many international buyers often compare 10kV and 11kV transformers. Although the voltage difference appears small, the equipment is designed for different power systems and standards.

Therefore, export projects should clearly specify 11kV primary voltage requirements and tap changer settings to ensure compatibility with local utility networks.

Key Technical Specifications of an 11kV Dry Type Transformer

Capacity Range

Standard capacities range from 50kVA to 3150kVA. However, certain manufacturers can provide customized ratings for special projects.

Insulation Class

Most 11kV dry type transformers are manufactured with Class F (155°C) or Class H (180°C) insulation systems. For tropical climates and heavy-duty applications, Class H insulation is generally preferred.

Impedance Voltage

Typical impedance values range from 4% to 6%. Consequently, the impedance level directly affects fault current performance and parallel operation capability.

Protection Rating

Protection levels commonly include IP00, IP21, IP23, IP31, and IP54. Outdoor installations usually require at least an IP23 enclosure.

Cooling Methods and Overload Capability

Most 11kV dry type transformers use AN (Air Natural) cooling. However, larger units are often equipped with AF (Air Forced) cooling systems.

When cooling fans are installed, transformer capacity can typically increase by 20% to 30%. As a result, operators can handle temporary load growth without replacing the transformer.

Cast Resin vs VPI Dry Type Transformers

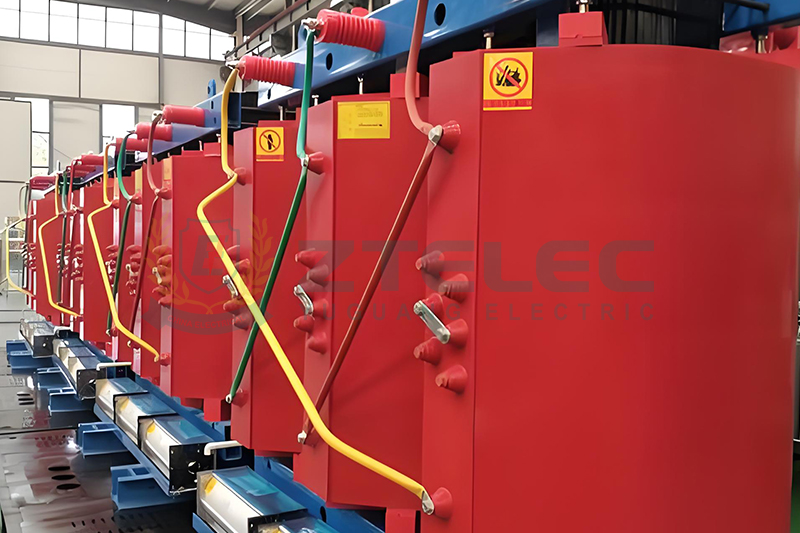

Cast Resin Transformer

Cast resin transformers encapsulate windings completely within epoxy resin. Therefore, they offer superior protection against moisture, dust, chemicals, and environmental pollution.

These transformers are particularly suitable for coastal regions, tropical climates, mining facilities, and industrial environments.

VPI Transformer

VPI transformers use vacuum pressure impregnation technology to coat windings with insulating varnish. Although they are generally less expensive, their environmental resistance is lower than cast resin designs.

International Standards and Certifications

Compliance with international standards is critical for project approval and long-term reliability. Therefore, buyers should carefully review all certification documents before placing an order.

Documents Buyers Should Request

✔ Type test reports

✔ Routine test reports

✔ Temperature rise test reports

✔ Partial discharge test reports

✔ Energy efficiency certificates

✔ Factory inspection records

For mission-critical facilities such as data centers, a partial discharge level below 10pC is generally considered an indicator of high manufacturing quality.

SCB10 vs SCB13 vs SCB18 Transformer Comparison

Currently, SCB13 transformers represent the most popular option for international projects. Meanwhile, SCB18 and SCBH models are increasingly selected for sustainability-focused developments.

Leading Chinese 11kV Dry Type Transformer Manufacturers

ABB China

ABB's RESIBLOC® technology is recognized worldwide for its excellent insulation performance, mechanical strength, and reliability.

Zhiguang Electric

Zhiguang Electric supplies a broad range of SCB13 and SCB18 transformers and has extensive experience serving export markets.

Huapeng Transformer

Huapeng focuses on export-oriented transformer production and offers flexible customization options for EPC contractors and distributors.

TBEA

TBEA provides integrated transformer and substation solutions for utility, industrial, and renewable energy projects worldwide.

CHINT Electric

CHINT offers competitive pricing, strong production capacity, and a wide range of medium-voltage transformer products.

Key Procurement Tips

Before purchasing an 11kV dry type transformer, buyers should verify voltage requirements, capacity ratings, cooling methods, insulation classes, protection levels, and vector group configurations.

Furthermore, suppliers should provide complete IEC compliance documentation, factory test reports, and long-term after-sales support commitments.

For humid or coastal environments, cast resin transformers are usually the preferred solution. On the other hand, VPI transformers may be suitable for cost-sensitive indoor applications.

Frequently Asked Questions

Can a 10kV transformer operate on an 11kV network?

No. Transformers must be designed specifically for their intended voltage system. Using a 10kV transformer on an 11kV network may create insulation and safety risks.

Which transformer is best for humid environments?

Cast resin transformers are generally recommended because of their excellent resistance to moisture and contamination.

Which efficiency level is best for export projects?

SCB13 transformers provide a strong balance between efficiency and cost. However, SCB18 and SCBH transformers are recommended when energy savings are a priority.

How long does an 11kV dry type transformer last?

With proper installation and maintenance, a high-quality 11kV dry type transformer can operate reliably for more than 25 years.

What certifications are required for international projects?

Most projects require IEC 60076-11 compliance, type test reports, and factory quality certifications. Additional local certifications may also be necessary depending on the country.

The 11kV dry type transformer remains one of the most reliable and widely specified medium-voltage transformers in modern power distribution systems. Its high safety level, low maintenance requirements, and environmental advantages make it ideal for commercial, industrial, infrastructure, and renewable energy applications.

By selecting a certified manufacturer, verifying IEC 60076-11 compliance, and choosing the appropriate efficiency class, buyers can maximize equipment reliability and reduce lifecycle operating costs. As global infrastructure investment continues to expand, the 11kV dry type transformer will remain a critical component of modern electrical networks.
