1250 kVA Dry Type Transformer for Renewable Energy Projects: Why Global Buyers Choose Chinese Manufacturers

As the global transition toward clean energy accelerates, the demand for reliable, energy-efficient, and environmentally friendly electrical equipment continues to grow. Solar photovoltaic (PV) plants, wind farms, battery energy storage systems (BESS), and microgrids all require dependable power distribution equipment capable of operating safely under demanding conditions. Among these critical components, the 1250 kVA dry type transformer has become one of the most popular choices for medium- to large-scale renewable energy projects.

Its superior fire safety, minimal maintenance requirements, and environmentally friendly design make it particularly suitable for modern renewable energy applications. At the same time, Chinese manufacturers have emerged as leading global suppliers by combining advanced manufacturing technologies, competitive pricing, and internationally certified product quality.

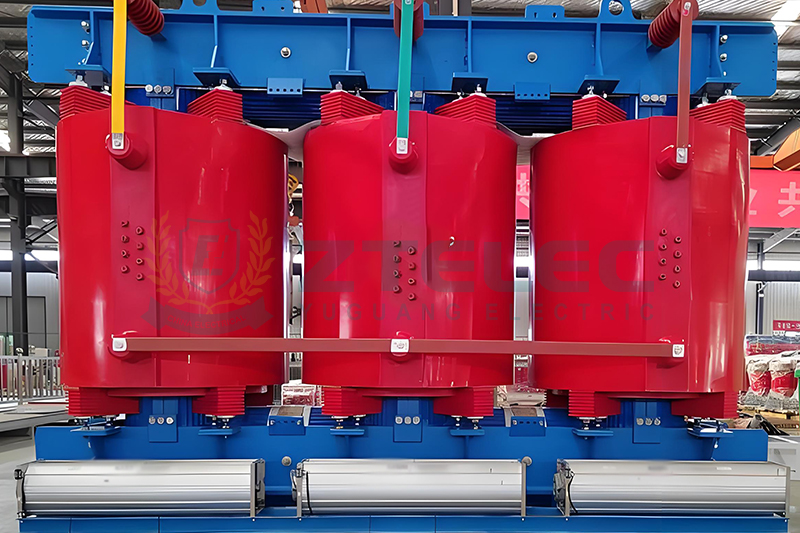

What Is a 1250 kVA Dry Type Transformer?

A 1250 kVA dry type transformer is a medium-capacity distribution transformer commonly used in 10kV, 11kV, 20kV, and 33kV medium-voltage power systems. Unlike oil immersed transformers, its magnetic core and windings are not submerged in insulating oil. Instead, cooling is achieved through natural air circulation (AN) or forced air cooling (AF).

For renewable energy applications, cast resin dry type transformers are the most widely used configuration. The high-voltage windings are vacuum-cast with epoxy resin, providing exceptional resistance to moisture, dust, pollution, and harsh environmental conditions while ensuring long-term operational reliability.

Compared with conventional oil-filled transformers, dry type transformers eliminate oil leakage risks, significantly improve fire safety, and require far less maintenance, making them ideal for sustainable energy infrastructure.

Key Technical Advantages of 1250 kVA Dry Type Transformers

Safety is one of the primary reasons renewable energy developers choose dry type transformers. Without combustible insulating oil, the transformer eliminates the risk of oil leakage, fire, or explosion, making it particularly suitable for battery energy storage systems, commercial buildings, data centers, and densely populated facilities.

Modern 1250 kVA dry type transformers are typically equipped with intelligent temperature monitoring systems and digital controllers that continuously monitor winding temperatures and operating conditions. When load demand increases, cooling fans automatically activate to improve short-term overload capability.

Advanced low-loss magnetic cores and optimized winding designs significantly reduce both no-load losses and load losses. For renewable energy projects operating continuously for decades, these efficiency improvements translate directly into lower operating costs and higher project profitability.

Additionally, dry type transformers can be customized for high-altitude installations, coastal environments with salt spray, tropical climates with high humidity, and other demanding operating conditions, ensuring reliable performance worldwide.

Main Applications in Renewable Energy Projects

Solar Photovoltaic Power Plants

In both utility-scale and commercial rooftop PV systems, electricity generated by inverters must be stepped up before being connected to the utility grid. A 1250 kVA dry type transformer provides an excellent capacity match for medium-sized inverter systems, making it one of the most commonly specified transformer ratings for solar applications.

Its compact footprint allows installation inside compact substations, prefabricated electrical rooms, or inverter-transformer integrated stations, helping minimize cable losses while improving overall system efficiency.

Wind Farms

Wind farms are often located in remote mountains, coastal regions, or offshore environments where electrical equipment must withstand moisture, corrosion, dust, and temperature extremes.

Cast resin dry type transformers offer excellent resistance to environmental contaminants and are widely used in turbine converter systems, collector networks, and auxiliary power distribution within wind farms.

Battery Energy Storage Systems (BESS)

As global investment in energy storage continues to grow, transformers have become a critical component of modern BESS facilities. A 1250 kVA dry type transformer is commonly installed between the Power Conversion System (PCS) and the utility grid, providing voltage transformation, electrical isolation, and improved power quality.

Because energy storage facilities require the highest fire safety standards, oil-free dry type transformers have become the preferred solution for many utility-scale storage projects.

Microgrids and Integrated Energy Systems

Industrial microgrids, islanded power systems, and integrated energy stations increasingly rely on 1250 kVA dry type transformers to distribute electricity safely and efficiently. Their compact design and low maintenance requirements help reduce operating costs while improving long-term system reliability.

Why Chinese Manufacturers Lead the Global Market

China has become one of the world's largest transformer manufacturing centers. Supported by the rapid growth of renewable energy industries, Chinese manufacturers continue investing in advanced production technologies, automation, and international quality standards.

One major advantage is China's fully integrated supply chain. Grain-oriented electrical steel, copper conductors, insulation materials, automatic resin casting equipment, and testing systems are all available domestically, enabling shorter production lead times and more stable supply.

Leading Chinese transformer manufacturers design and manufacture products according to IEC 60076, IEC 60076-11, IEEE C57, and other internationally recognized standards. Their products are exported extensively to Europe, Southeast Asia, the Middle East, Africa, Latin America, and many other global markets.

Chinese manufacturers also offer highly customized transformer solutions, including various voltage ratings, insulation classes, enclosure protection ratings (IP23, IP44, IP54, and higher), and specialized designs for renewable energy installations operating under extreme environmental conditions.

With advanced automated production and large-scale manufacturing capacity, Chinese suppliers are able to maintain excellent product quality while offering highly competitive pricing, helping renewable energy developers achieve lower project costs and higher return on investment.

Key Considerations When Purchasing a 1250 kVA Dry Type Transformer

When selecting a transformer for a renewable energy project, purchase price should not be the only evaluation criterion. EPC contractors, project developers, and utilities should consider the overall lifecycle performance of the equipment.

Electrical specifications such as rated voltage, frequency, vector group, and impedance should match the project requirements. Common configurations include 11kV/0.4kV, 33kV/0.69kV, and 35kV/0.4kV.

Energy efficiency should also be carefully evaluated. Although premium low-loss transformers may require a slightly higher initial investment, they can generate substantial electricity savings over a service life exceeding 20 years.

For outdoor renewable energy installations, enclosure protection, corrosion resistance, UV resistance, altitude correction, and salt spray protection should all be verified before procurement.

Supplier qualifications are equally important. Buyers should prioritize manufacturers with extensive renewable energy project experience, internationally recognized certifications, comprehensive quality management systems, and proven export capabilities.

Finally, reliable after-sales support should be considered, including remote technical assistance, spare parts availability, commissioning services, and local service capabilities, particularly for overseas renewable energy projects.

Future Market Trends

Driven by global carbon neutrality goals, renewable energy installations are expected to continue expanding rapidly over the coming decades. Meanwhile, digital substations, smart grids, and intelligent operation and maintenance technologies will accelerate the development of more efficient and intelligent dry type transformers.

Future 1250 kVA dry type transformers will feature even lower energy losses, higher reliability, integrated online monitoring, predictive maintenance capabilities, and digital asset management functions, creating greater value for renewable energy investors.

The 1250 kVA dry type transformer has become an essential component in solar power plants, wind farms, battery energy storage systems, and modern microgrids. Its outstanding fire safety, environmental sustainability, low maintenance requirements, and long-term reliability perfectly align with the needs of today's renewable energy industry.

Supported by advanced manufacturing capabilities, internationally certified quality systems, and highly competitive production costs, Chinese transformer manufacturers are becoming preferred partners for renewable energy projects worldwide. For project developers, EPC contractors, and system integrators, selecting an experienced manufacturer with comprehensive certifications, customization capabilities, and dependable after-sales service is the key to ensuring long-term operational success and maximizing investment returns.
