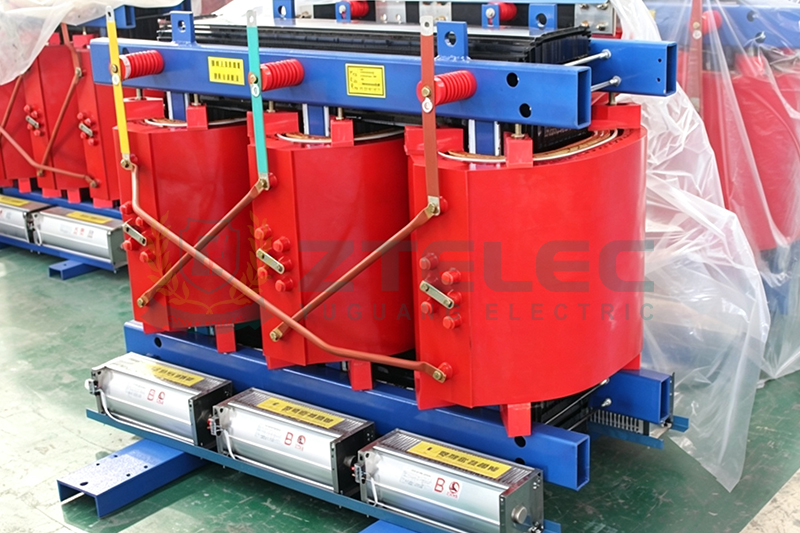

315 kVA Cast Resin Dry-Type Transformer: The Ideal Power Distribution Solution for Hospitals and Schools

Hospitals and educational facilities require one of the highest levels of electrical safety and power reliability. Any interruption or electrical fault can affect patient care, classroom activities, laboratory equipment, and building operations. Choosing the right transformer is therefore a critical decision for engineers, contractors, and facility managers.

The 315 kVA cast resin dry-type transformer has become one of the most widely specified distribution transformers for hospitals, schools, universities, office buildings, laboratories, and other public facilities. With excellent fire resistance, moisture protection, low maintenance requirements, high efficiency, and environmentally friendly operation, it provides a reliable solution for modern building electrical systems.

What Is a Cast Resin Dry-Type Transformer?

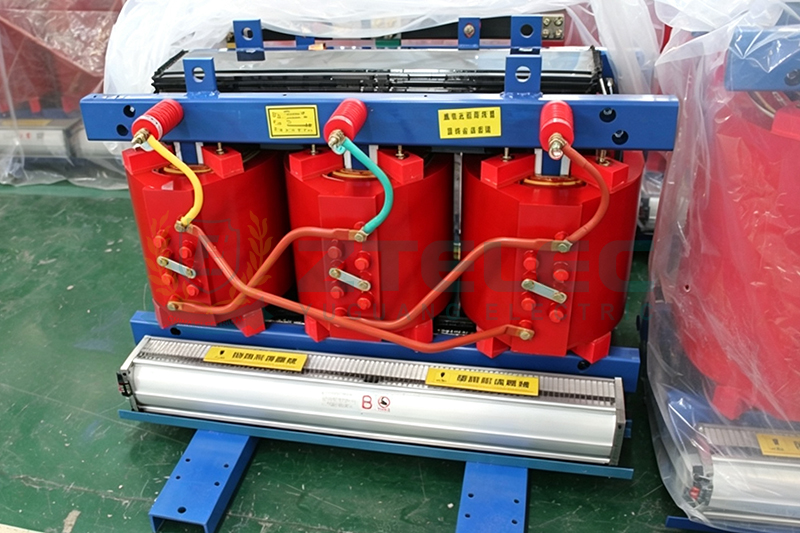

A cast resin dry-type transformer is manufactured by vacuum casting epoxy resin around the high-voltage and low-voltage windings. Unlike conventional oil-immersed transformers, it uses air as the cooling medium instead of insulating oil.

The resin encapsulation provides excellent insulation strength while protecting the windings from dust, humidity, chemicals, and mechanical stress. Cooling is achieved through natural air circulation (AN) or forced air cooling (AF), eliminating the need for combustible insulating liquids.

Because there is no mineral oil inside the transformer, there is no risk of oil leakage, environmental contamination, or oil fire, making cast resin transformers especially suitable for installation inside occupied buildings.

Why Is a 315 kVA Transformer Ideal for Hospitals and Schools?

The 315 kVA capacity perfectly matches the electrical demand of many medium-sized public buildings. It provides sufficient capacity for lighting systems, HVAC equipment, elevators, security systems, information technology infrastructure, laboratory equipment, and other essential electrical loads without unnecessary oversizing.

For hospitals, a 315 kVA transformer can reliably support outpatient clinics, administrative buildings, medical laboratories, imaging departments, emergency facilities, and specialized treatment areas while maintaining excellent operational efficiency.

For schools, universities, libraries, and laboratory buildings, this capacity can efficiently supply classrooms, multimedia teaching equipment, computer rooms, research laboratories, ventilation systems, and campus service facilities.

Selecting the appropriate transformer capacity also helps minimize initial investment, improve system efficiency, and reduce long-term operating costs.

Fire Safety Advantages for Healthcare Facilities

Fire safety is one of the most important considerations in hospital electrical design. Operating rooms, intensive care units (ICUs), diagnostic centers, and emergency departments depend on continuous and safe electrical power.

The 315 kVA cast resin dry-type transformer offers significant advantages over traditional oil-filled transformers because it contains no flammable insulating oil. Epoxy resin insulation features excellent flame-retardant and self-extinguishing characteristics, greatly reducing fire hazards.

Most high-quality cast resin transformers use Class F or Class H insulation systems with excellent thermal endurance and comply with international standards such as IEC 60076-11. These characteristics make them particularly suitable for healthcare facilities where electrical safety standards are extremely stringent.

Outstanding Moisture Resistance

Hospital environments often include sterilization rooms, underground electrical rooms, utility areas, and other locations with relatively high humidity. Moisture can accelerate insulation aging in conventional transformers.

Vacuum-cast epoxy resin completely seals the transformer windings, providing excellent resistance against humidity, condensation, dust, and chemical contaminants. This greatly improves insulation reliability while extending service life even under challenging environmental conditions.

Low Noise Operation for Sensitive Buildings

Noise control is essential in hospitals, schools, libraries, and educational institutions where quiet environments improve comfort and productivity.

Modern 315 kVA cast resin transformers utilize precision-cut silicon steel cores, optimized magnetic circuits, vibration isolation systems, and advanced manufacturing processes to minimize operating noise. Typical sound levels remain below 55 dB under normal operating conditions, making them suitable for installation near occupied areas.

Why Schools Prefer Cast Resin Transformers

Educational buildings typically have high occupant density throughout the day. Transformers are frequently installed inside buildings or in basement electrical rooms where fire safety regulations are particularly strict.

Since cast resin transformers contain no combustible oil, they fully satisfy modern building fire protection requirements while significantly reducing environmental risks associated with oil leakage.

Schools also benefit from the transformer's simple structure and minimal maintenance requirements. Routine inspections mainly involve cleaning ventilation passages, checking electrical connections, and monitoring operating temperatures, allowing facility management teams to maintain reliable operation without extensive maintenance resources.

In addition, their high efficiency contributes to lower electricity losses throughout their operating life, helping educational institutions reduce energy expenses while supporting sustainability initiatives.

Key Technical Features

The 315 kVA cast resin transformer incorporates premium grain-oriented silicon steel cores that reduce no-load and load losses while improving overall operating efficiency.

Standard enclosure protection ratings range from IP20 to IP31, with optional IP23, IP33, IP44, or customized higher protection levels available for more demanding installation environments.

The transformer demonstrates excellent short-circuit strength and overload capability, allowing it to handle temporary load fluctuations commonly experienced during school opening hours or hospital peak operation periods.

Integrated thermal monitoring systems equipped with PT100 or PTC temperature sensors provide continuous winding temperature supervision. Intelligent temperature controllers can activate cooling fans, generate alarm signals, and initiate protective shutdown when abnormal temperatures occur.

Because the transformer contains no insulating oil, it eliminates the need for oil testing, oil replacement, and hazardous waste disposal, supporting environmentally responsible building operation.

Installation Recommendations

Proper transformer selection begins with accurately evaluating building load requirements, future expansion plans, local climate conditions, and installation location.

For humid regions, selecting higher insulation classes and enhanced moisture-resistant designs helps maximize long-term reliability.

If the transformer is installed in outdoor substations or damp electrical rooms, an enclosure with at least IP23 protection is generally recommended to improve resistance against dust and water ingress.

Hospitals and educational facilities located close to classrooms, patient rooms, or office areas should prioritize low-noise transformer designs together with vibration isolation foundations to further reduce sound transmission.

Choosing an experienced transformer manufacturer that provides engineering support, factory testing, commissioning assistance, spare parts availability, and long-term technical service is equally important for maximizing equipment reliability.

Routine Maintenance Best Practices

Although cast resin dry-type transformers require significantly less maintenance than oil-filled transformers, periodic inspections remain essential for ensuring reliable long-term operation.

Facility maintenance teams should regularly inspect ventilation paths, remove accumulated dust from cooling surfaces, verify electrical connections, and confirm proper operation of temperature monitoring systems.

Insulation resistance testing and grounding resistance measurements should be performed periodically according to applicable maintenance schedules and electrical standards.

Annual infrared thermal imaging inspections and partial discharge testing can help identify potential problems before they affect system reliability.

The transformer room should remain clean, dry, well ventilated, and free of combustible materials. Emergency access routes and fire protection equipment should always remain unobstructed.

Applications Beyond Hospitals and Schools

Besides healthcare and educational facilities, 315 kVA cast resin dry-type transformers are widely used in commercial office buildings, hotels, shopping centers, airports, metro stations, government buildings, industrial plants, renewable energy projects, and data centers where fire safety, environmental protection, and operational reliability are critical design considerations.

The 315 kVA cast resin dry-type transformer combines outstanding fire safety, moisture resistance, low noise operation, energy efficiency, environmental sustainability, and minimal maintenance requirements. These advantages make it one of the most reliable distribution transformers for hospitals, schools, and other public buildings.

When selecting a transformer, engineers should carefully evaluate electrical load characteristics, installation environment, enclosure protection level, insulation class, applicable IEC standards, and manufacturer support capabilities. Partnering with an experienced transformer manufacturer ensures long service life, dependable operation, and maximum return on investment throughout the equipment lifecycle.
