Air-Cooled Dry Type Transformer Manufacturer | High-Efficiency AN/AF Cooling Power Distribution Solution

As power distribution systems continue to evolve toward higher efficiency, enhanced safety, and lower environmental impact, air-cooled dry type transformers have become the preferred choice for modern electrical infrastructure. Compared with conventional oil-immersed transformers, air-cooled dry type transformers eliminate insulating oil, reduce fire hazards, minimize maintenance requirements, and provide outstanding reliability for indoor installations.

Widely deployed in data centers, hospitals, industrial plants, commercial buildings, airports, metro systems, and renewable energy facilities, AN/AF dry type transformers deliver safe, efficient, and environmentally friendly power distribution while complying with international standards such as IEC 60076-11 and IEEE C57.12.01.

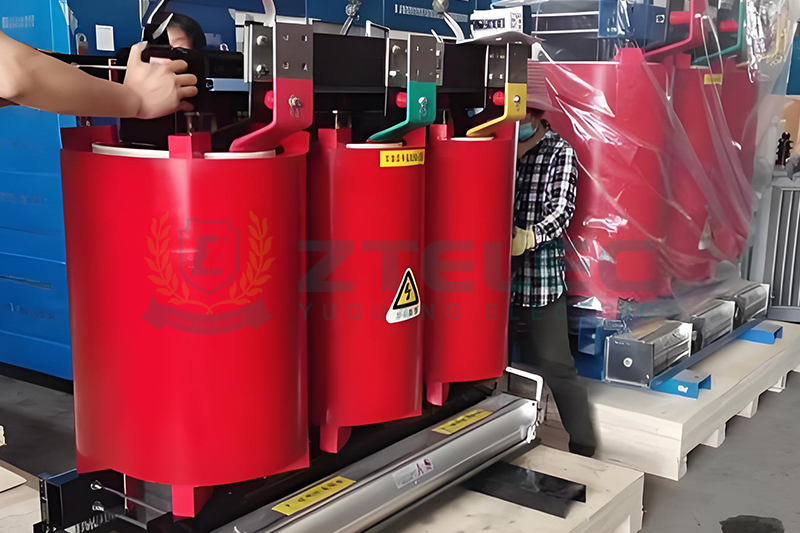

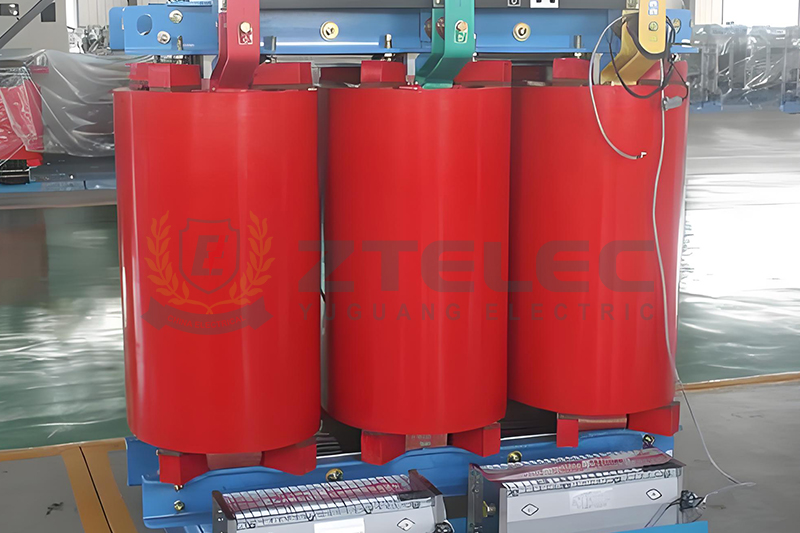

What Is an Air-Cooled Dry Type Transformer?

An air-cooled dry type transformer is a transformer whose windings and core are not immersed in insulating oil. Instead, heat generated during operation is dissipated directly through natural or forced air circulation. This design significantly reduces environmental risks and eliminates the possibility of oil leakage.

Modern dry type transformers typically utilize cast resin insulation technology, where high-voltage windings are encapsulated in epoxy resin under vacuum conditions. This process provides excellent moisture resistance, mechanical strength, and long-term reliability.

AN and AF Cooling Modes Explained

Air-cooled dry type transformers are generally available with two cooling methods:

AN (Air Natural Cooling) relies on natural air circulation around the transformer windings and core. This mode offers quiet operation and excellent efficiency under normal loading conditions.

AF (Air Forced Cooling) utilizes cooling fans to increase airflow through the transformer winding channels. The enhanced cooling effect allows the transformer to operate at higher loads without exceeding temperature limits.

Most modern transformers adopt an AN/AF dual-mode configuration. During normal operation, the transformer runs under AN cooling. When load levels increase beyond a preset threshold, the intelligent temperature controller automatically activates cooling fans and switches to AF operation.

Main Components of an Air-Cooled Dry Type Transformer

Cast Resin Windings

High-voltage windings are vacuum-cast with epoxy resin to achieve excellent dielectric strength, moisture resistance, and short-circuit withstand capability.

Low-Loss Silicon Steel Core

Premium grain-oriented silicon steel or amorphous alloy cores significantly reduce no-load losses and improve overall transformer efficiency.

Temperature Monitoring System

PT100 sensors continuously monitor winding temperatures and communicate with digital controllers to manage fan operation, alarms, and protective shutdown functions.

Cooling Fan Assembly

Axial cooling fans are installed beneath or alongside the transformer to improve airflow during high-load operation, enhancing cooling performance and overload capability.

Technical Specifications

Advantages of Air-Cooled Dry Type Transformers

Superior Fire Safety

Without flammable insulating oil, dry type transformers significantly reduce fire risks. This makes them ideal for installation inside buildings where stringent fire protection regulations apply.

Low Maintenance Requirements

Unlike oil-filled transformers, dry type units do not require oil sampling, filtration, replacement, or leak monitoring. Maintenance is generally limited to periodic inspection and cleaning.

Environmental Protection

The absence of insulating oil eliminates the risk of soil contamination and groundwater pollution caused by oil leakage.

Enhanced Overload Capacity

When operating in AF cooling mode, transformer capacity can typically increase by 20% to 40%, enabling temporary overload operation during peak demand periods.

Energy Efficiency

Modern low-loss core materials and optimized winding designs contribute to reduced energy consumption and lower operating costs throughout the transformer lifecycle.

Air-Cooled Dry Type Transformer vs Oil-Immersed Transformer

Applications of Air-Cooled Dry Type Transformers

Air-cooled dry type transformers are widely used in:

Data Centers: Supporting high-efficiency power distribution while meeting strict fire protection requirements.

Hospitals: Providing reliable and safe electrical power for critical medical equipment and emergency systems.

Commercial Buildings: Shopping malls, office towers, hotels, and convention centers benefit from safe indoor transformer installations.

Industrial Manufacturing Plants: Supplying power to motors, automation systems, and production equipment.

Renewable Energy Projects: Solar photovoltaic plants and wind farms increasingly adopt dry type transformers for improved environmental performance.

Transportation Infrastructure: Airports, railway stations, and metro systems require reliable and fire-safe transformer solutions.

How to Select the Right Air-Cooled Dry Type Transformer

When selecting a dry type transformer, consider the following factors:

Capacity requirements and future expansion plans.

Primary and secondary voltage ratings.

Installation environment, including ambient temperature and altitude.

Required insulation class and protection degree.

Noise restrictions and ventilation conditions.

Compliance with local and international standards.

Total lifecycle cost rather than initial purchase price alone.

Why Choose Our Air-Cooled Dry Type Transformers?

As a professional dry type transformer manufacturer, we provide customized transformer solutions ranging from 30 kVA to 2500 kVA. Our products are manufactured using advanced vacuum casting technology and premium electrical materials to ensure exceptional performance and reliability.

All transformers undergo comprehensive factory testing and comply with IEC, IEEE, and GB standards. We offer customized voltage ratings, impedance values, enclosure protection levels, and cooling configurations to meet the requirements of diverse projects worldwide.

Our transformers have been successfully exported to Southeast Asia, the Middle East, Africa, Europe, and South America, supporting industrial, commercial, and utility-scale power distribution projects.

Frequently Asked Questions

Can air-cooled dry type transformers be installed indoors?

Yes. Their oil-free design makes them particularly suitable for indoor installations such as commercial buildings, hospitals, and data centers.

How much additional capacity can AF cooling provide?

Depending on the design, AF cooling can increase transformer capacity by approximately 20% to 40%.

What is the expected service life?

With proper installation and maintenance, air-cooled dry type transformers typically achieve a service life exceeding 25 to 30 years.

Do dry type transformers require maintenance?

Routine maintenance is minimal and generally includes visual inspection, cleaning, and cooling fan checks.

Are dry type transformers more energy-efficient?

Modern low-loss dry type transformers can achieve excellent efficiency levels and significantly reduce lifecycle energy costs.

Air-cooled dry type transformers represent the future of safe, efficient, and environmentally responsible power distribution. Their combination of fire safety, low maintenance, energy efficiency, and adaptability makes them an ideal solution for modern industrial, commercial, and infrastructure projects.

Whether for a data center, hospital, manufacturing facility, renewable energy plant, or commercial building, investing in a high-quality AN/AF dry type transformer delivers long-term reliability, lower operating costs, and enhanced electrical safety.
