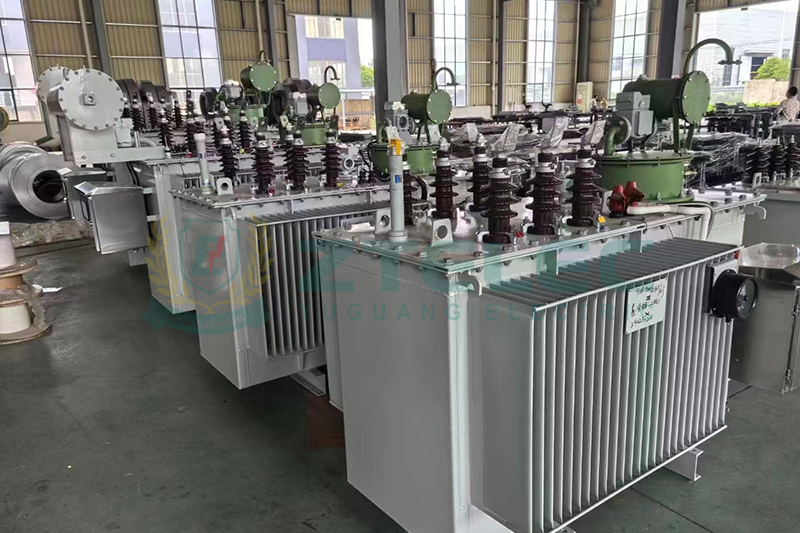

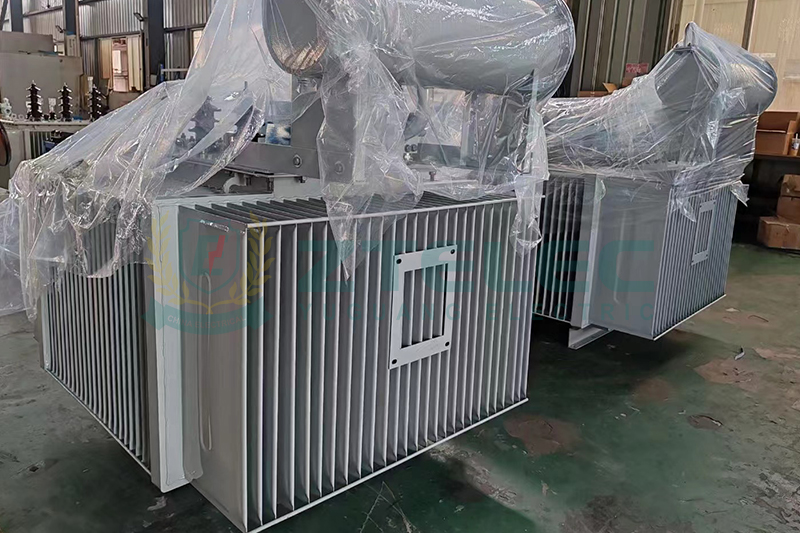

1000 KVA Oil Filled Transformer for Industrial & Commercial Power Distribution

A 1000 KVA oil filled transformer is one of the most widely used medium-capacity distribution transformers in industrial, commercial, and utility power systems. Combining excellent thermal performance, high efficiency, and long service life, it provides reliable voltage transformation for factories, commercial buildings, hospitals, renewable energy projects, and municipal substations.

Compared with lower-capacity transformers, a 1000 kVA unit delivers greater load capability while maintaining an economical installation footprint. For organizations seeking stable power supply and low operating costs, it represents one of the best-balanced solutions available.

This guide explains how a 1000 KVA oil immersed transformer works, its advantages, technical specifications, common applications, maintenance requirements, and the key factors to consider when selecting a reliable transformer manufacturer.

What Is a 1000 KVA Oil Filled Transformer?

A 1000 KVA oil filled transformer, also known as an oil immersed transformer, is a power distribution transformer whose magnetic core and windings are completely immersed in insulating oil inside a sealed steel tank.

The insulating oil performs two essential functions. First, it provides excellent dielectric insulation between energized components, minimizing the risk of electrical discharge. Second, it efficiently transfers heat generated by the windings to the tank walls and radiators, ensuring safe operating temperatures even during continuous full-load operation.

The transformer's apparent power rating of 1000 kVA makes it ideal for medium-sized electrical distribution systems that require dependable and continuous power delivery.

Typical voltage configurations can be customized according to project requirements, including:

High Voltage: 6 kV, 10 kV, 11 kV, 13.8 kV, 15 kV, 20 kV, 22 kV, 33 kV or higher.

Low Voltage: 400 V, 415 V, 433 V, 480 V, 690 V or other custom voltages.

How Does a 1000 KVA Oil Filled Transformer Work?

The transformer operates according to the principle of electromagnetic induction. Alternating current flowing through the primary winding creates a changing magnetic field inside the laminated silicon steel core. This magnetic field induces voltage in the secondary winding, enabling efficient voltage transformation while maintaining the same frequency.

Inside a high-quality 1000 KVA transformer, the major components include:

A low-loss CRGO silicon steel core designed to reduce no-load losses and improve energy efficiency.

Copper or aluminum windings engineered to carry high operating currents with excellent thermal stability.

A sealed oil tank filled with mineral oil, natural ester oil, or synthetic insulating oil.

Radiators or cooling fins that dissipate heat through natural or forced oil circulation.

High-voltage and low-voltage bushings for safe electrical connections.

Tap changers that regulate output voltage under varying grid conditions.

Protective devices including Buchholz relay, pressure relief valve, oil level indicator, winding temperature indicator, and oil temperature gauge.

The insulating oil continuously circulates through natural convection or forced cooling systems, transferring heat away from the windings and maintaining reliable operation under demanding load conditions.

Main Advantages of a 1000 KVA Oil Filled Transformer

Excellent Cooling Performance

Oil provides significantly better heat transfer than air, allowing the transformer to operate at lower internal temperatures. This improves efficiency, supports higher continuous loads, and extends insulation life.

Higher Load Capacity

Compared with dry-type transformers of similar capacity, oil immersed transformers generally provide better overload capability and thermal performance, making them suitable for facilities with fluctuating electrical demand.

Outstanding Electrical Insulation

Transformer oil has excellent dielectric strength, protecting windings from partial discharge, electrical arcing, and insulation breakdown while improving long-term reliability.

Long Service Life

With proper inspection and oil maintenance, a 1000 KVA oil filled transformer typically delivers 25 to 40 years of dependable service, reducing lifecycle costs for industrial users.

Lower Total Cost of Ownership

Oil immersed transformers generally offer lower manufacturing costs than dry-type transformers at equivalent capacities while maintaining excellent operating efficiency and durability.

Ideal for Outdoor Installation

The sealed tank construction protects internal components from moisture, dust, corrosion, and harsh weather, making these transformers ideal for outdoor substations and industrial environments.

Typical Applications

The versatility of a 1000 KVA transformer makes it suitable for numerous power distribution projects, including manufacturing plants, mining operations, commercial buildings, shopping centers, hospitals, hotels, schools, data centers, renewable energy systems, water treatment facilities, utility substations, municipal infrastructure, airports, railway systems, agricultural irrigation projects, and large construction sites.

Technical Specifications to Evaluate

When purchasing a 1000 KVA oil filled transformer, engineers and procurement professionals should evaluate several important technical parameters to ensure long-term performance and compliance.

Voltage Rating

Select primary and secondary voltages that match local utility standards and project requirements.

Frequency

Most transformers are available for both 50 Hz and 60 Hz electrical systems.

Cooling Method

Common cooling options include ONAN (Oil Natural Air Natural) for standard applications and ONAF (Oil Natural Air Forced) where higher loading or improved cooling performance is required.

Vector Group

Popular vector groups include Dyn11, Yyn0, Dyn5, and other customized configurations depending on the distribution network.

Insulation Medium

Options include conventional mineral oil, environmentally friendly natural ester oil, and synthetic insulating fluids for specialized applications.

Efficiency

Choose transformers with low no-load losses and load losses to reduce electricity consumption throughout the equipment's operating life.

Protection Accessories

High-quality transformers are equipped with Buchholz relays, oil level indicators, pressure relief valves, temperature monitoring systems, drain valves, sampling valves, and surge protection devices.

International Standards

Ensure compliance with IEC 60076, ANSI/IEEE, GB/T, CE, or other regional standards applicable to the installation location.

Maintenance Best Practices

Routine maintenance significantly improves transformer reliability while reducing unexpected outages and repair costs.

Regular oil testing should include dissolved gas analysis (DGA), dielectric strength testing, moisture analysis, and acidity measurements to identify insulation aging before failures occur.

Inspect bushings, seals, radiators, valves, and cooling systems periodically for leakage or mechanical damage.

Monitor oil level, winding temperature, and top-oil temperature using installed instruments or online monitoring systems.

Keep the transformer clean and ensure adequate ventilation around cooling radiators.

Schedule comprehensive preventive maintenance annually or more frequently in heavy-duty industrial environments.

How to Choose the Right Transformer Manufacturer

Selecting an experienced transformer manufacturer is just as important as selecting the correct technical specifications.

Look for manufacturers with extensive production experience, modern manufacturing facilities, and internationally recognized quality management systems such as ISO 9001.

A reliable supplier should provide customized voltage configurations, cooling options, enclosure designs, accessories, and compliance with international standards.

Factory Acceptance Testing (FAT), routine testing reports, type test certificates, and transparent quality documentation demonstrate manufacturing consistency and product reliability.

Strong technical support, installation guidance, spare parts availability, and responsive after-sales service further reduce operational risks throughout the transformer's lifecycle.

Why Choose a High-Quality 1000 KVA Oil Filled Transformer?

Investing in a premium-quality transformer delivers benefits far beyond initial purchase price. High-efficiency core materials reduce energy losses, precision winding technology improves voltage stability, and advanced insulation systems extend service life while minimizing maintenance requirements.

Whether your project involves industrial manufacturing, commercial facilities, renewable energy integration, or utility distribution networks, selecting a professionally engineered transformer helps maximize operational reliability and long-term return on investment.

A 1000 KVA oil filled transformer remains one of the most versatile and cost-effective solutions for medium-voltage power distribution. Its superior cooling capability, excellent insulation performance, long operating life, and high efficiency make it the preferred choice for industrial, commercial, and infrastructure projects worldwide.

By carefully evaluating transformer specifications, international certifications, cooling methods, efficiency ratings, and manufacturer capabilities, project owners can select a solution that delivers dependable power, reduced operating costs, and decades of reliable service.

If your upcoming project requires a customized 1000 KVA oil immersed transformer, partnering with an experienced manufacturer early in the design process ensures the transformer is optimized for voltage requirements, environmental conditions, load characteristics, and future system expansion.
