In Stock ESD Bakelite Sheet Thickness 5mm 6mm 8mm 10mm for Insulation

In the electronics industry, precision instrument manufacturing, and PCB (printed circuit board) processing, static electricity is arguably the primary threat to precision components. To ensure production safety and improve product yield, selecting a suitable antistatic insulating material is a crucial step in the production process.

If you are looking for in-stock antistatic bakelite boards in thicknesses of 5mm, 6mm, 8mm, and 10mm, you've come to the right place. We maintain a large inventory year-round, providing you with antistatic boards with excellent insulation properties to comprehensively meet your needs from jig making to workbench surface installation.

Basic Concept of Antistatic Bakelite Sheets

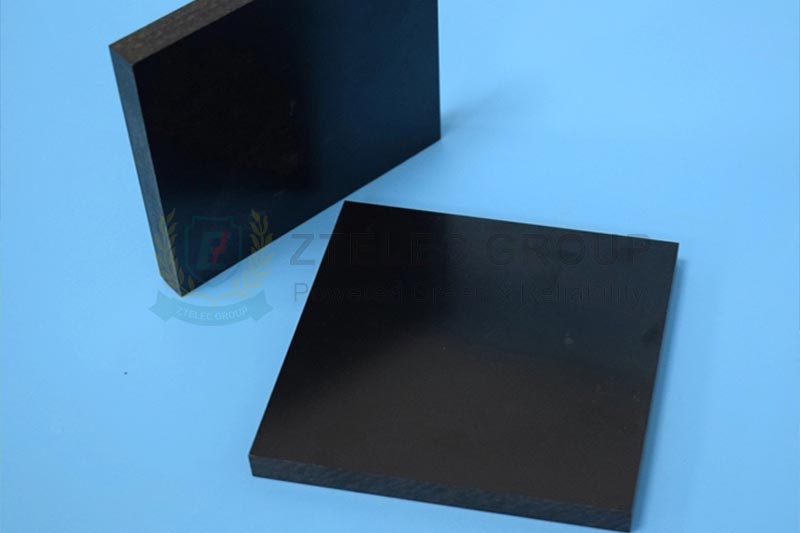

Antistatic bakelite boards are made from phenolic resin as the base material, laminated under high temperature and pressure. Unlike ordinary bakelite boards, special conductive materials such as carbon black and carbon fiber are added during the production process, which keeps the surface resistance stably between 10⁶ and 10⁹Ω.

This material retains the high mechanical strength and insulation properties of the original bakelite board, while also having the characteristic of slow static discharge, which can effectively prevent instantaneous discharge from causing breakdown damage to sensitive components.

Core Advantages of Antistatic Phenolic Resin Boards: Why Choose Our In-Stock Boards?

1. Multiple Thicknesses Available, Immediate Shipment After Order

We understand the losses caused by production delays. For commonly used specifications, we maintain ample stock, eliminating long wait times and ensuring immediate shipment after ordering:

5mm Antistatic Phenolic Resin Boards: Suitable for thin and lightweight pads and SMT (Surface Mount Technology) printer ejector pin platforms.

6mm Antistatic Phenolic Resin Boards: Universal thickness. This thickness is widely used in wave soldering fixtures and test rack base plates.

8mm Antistatic Phenolic Resin Boards: Superior strength. This thickness is suitable for workbenches and equipment isolation panels that need to withstand certain weight.

10mm Antistatic Phenolic Resin Boards: Ideal for heavy-duty fixtures, mechanical pads, and high-voltage insulation applications.

2. Stable Antistatic and Insulation Properties

As an antistatic bakelite board specifically designed for insulation, our product achieves a perfect balance in performance:

Antistatic Index: The surface resistance/volume resistivity of the bakelite board is stable at 10⁶-10⁹Ω, effectively dissipating static charge.

Insulation Performance: The bakelite board itself has high dielectric strength, effectively isolating current and ensuring operator safety.

Temperature Resistance: It can withstand temperatures up to 120°C-140°C, and can withstand brief high-temperature shocks during electronic soldering processes.

3. Excellent Machining Performance

This antistatic bakelite board not only has good mechanical strength but is also easy to process. You can use ordinary woodworking or metalworking equipment to cut, drill, and mill it. During processing, the bakelite board is not prone to burrs or cracking and can be precisely processed into various shapes as needed.

Typical Applications of Antistatic Bakelite Sheets

5mm–10mm thick antistatic bakelite boards are commonly used in the following industrial applications:

Electronic manufacturing and semiconductor equipment

Automated production lines, fixtures, jigs

Electrical equipment insulation boards

Industrial antistatic worktops and support boards

Precision instruments and testing equipment

Why Choose Us?

High-Quality Materials: Our products are made with virgin resin and eliminate the addition of recycled materials to avoid performance degradation.

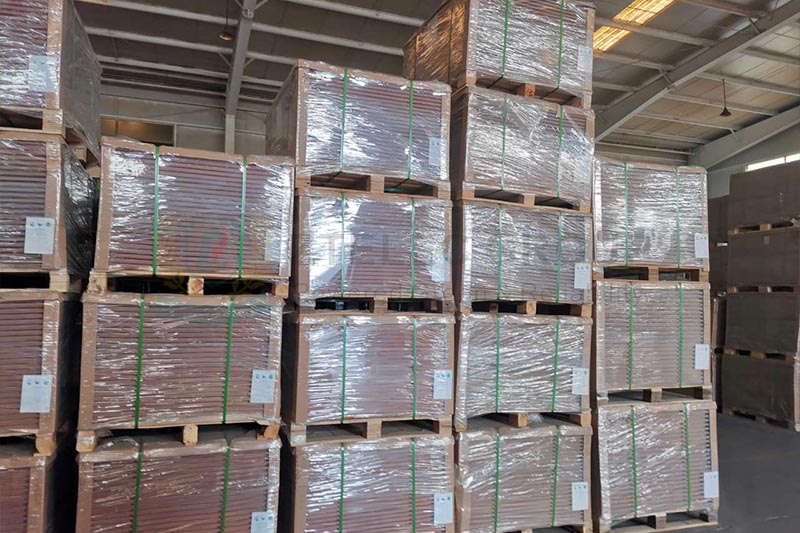

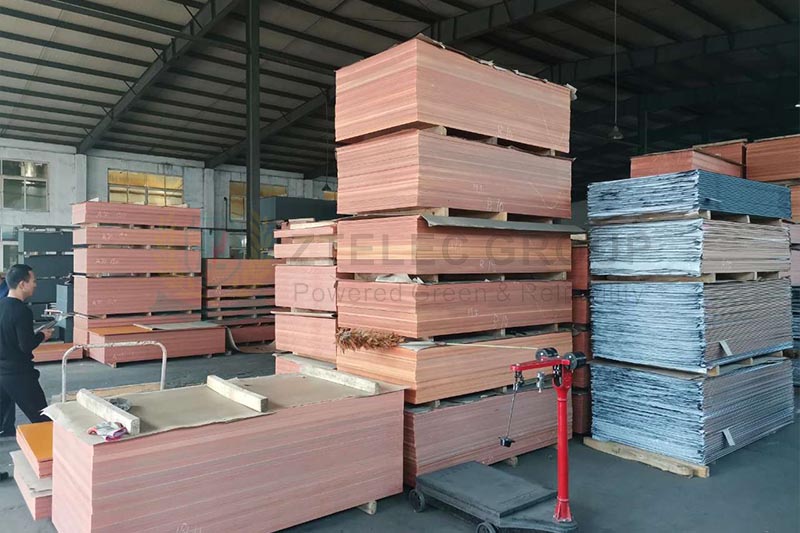

Complete Specifications: Standard sheets 5mm, 6mm, 8mm, 10mm (e.g. 1000*2000mm) are readily available in stock, and custom cutting is also possible.

Professional Service: We provide professional technical support. We can recommend the most suitable thickness based on your specific application scenario.

Get a Quote Now

Don't let static electricity become a hidden danger in your production! We have 5mm, 6mm, 8mm, and 10mm antistatic phenolic resin sheets in stock. Whether you urgently need sample testing or have large-scale procurement needs, we can respond quickly and deliver efficiently.

FQAs

Q1: Can you customize boards with thicknesses of 5mm, 6mm, 8mm, and 10mm?

A1: Yes. We can cut and CNC machine according to your drawings or project requirements to ensure dimensional accuracy and stable performance.

Q2: Will the antistatic performance be maintained long-term?

A2: Our antistatic bakelite boards have stable surface resistance, and the antistatic effect remains reliable even after long-term use. Performance degradation due to environmental changes is not easily observed.
