g10 What are the appearance and function of epoxy glass laminates?
2023-11-08 17:53 | By: ZTELEC-www.ztelecgroup.com | 107click
G10 epoxy glass laminate is a type of composite material that is composed of layers of woven fiberglass cloth impregnated with epoxy resin. It is known for its high strength, excellent electrical insulation properties, and resistance to heat, chemicals, and moisture.

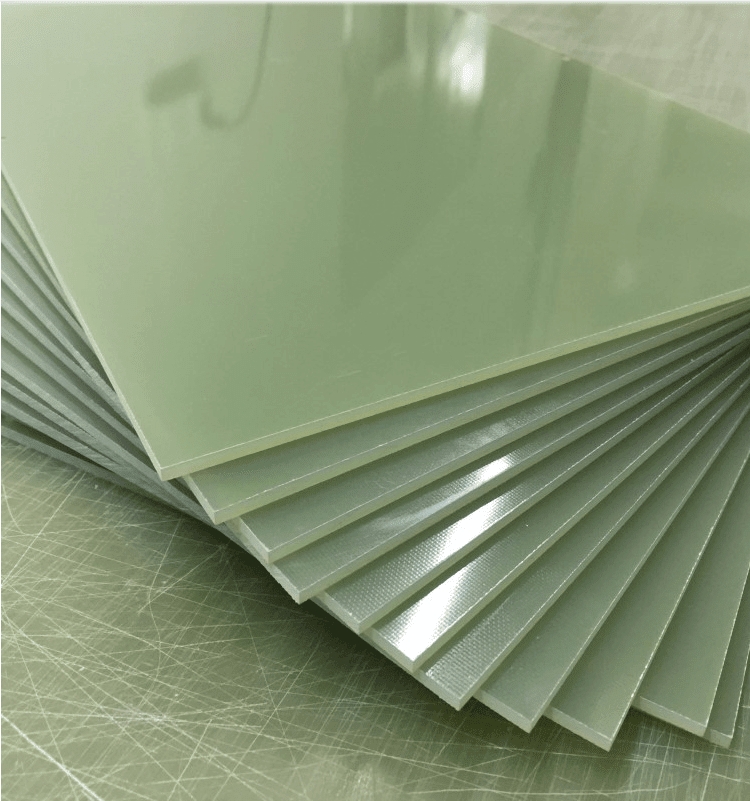

In terms of appearance, G10 epoxy glass laminate typically has a yellowish or greenish color due to the epoxy resin. It has a smooth and glossy surface finish.
As for its functions, G10 epoxy glass laminate is widely used in various industries and applications. Here are some of its common uses:
Electrical insulation: Its excellent electrical insulation properties make it suitable for applications such as electrical insulators, switchgear components, terminal boards, transformer bushings, and printed circuit boards (PCBs).
Mechanical support: G10 is a rigid and strong material, making it ideal for structural applications that require high strength and dimensional stability. It is used in the manufacturing of gears, bearings, shaft supports, brackets, and structural components in machines and equipment.
Aerospace and defense: G10 is used in the aerospace and defense industries for applications like aircraft components, radar equipment, missile guidance systems, and electronic enclosures. Its lightweight and high strength properties make it valuable in these demanding environments.
Marine industry: G10 is resistant to moisture and chemicals, making it suitable for marine applications such as boat parts, hulls, decks, and marine electrical systems.
Automotive industry: G10 laminates can be used in the automotive industry for various purposes, including electrical connectors, battery housings, and structural reinforcements for lightweight components.
Chemical resistance: G10 epoxy glass laminate is highly resistant to a wide range of chemicals, such as acids, alkalis, solvents, and oils. This makes it suitable for use in harsh chemical environments where other materials may degrade or corrode.
High-temperature resistance: G10 laminate can withstand high temperatures without losing its mechanical and electrical properties. It can operate continuously at temperatures up to 180°C (356°F) and intermittently at temperatures up to 260°C (500°F), making it ideal for hot and harsh environments.
Machinability: G10 is easy to machine using standard tools and equipment, such as saws and drills. This allows for precise customization of the material to meet specific application requirements.
Durability: G10 laminate is known for its long-lasting durability, as it resists wear and tear and retains its properties even after extended use.
Cost-effective: G10 epoxy glass laminate provides a cost-effective solution for various applications due to its versatility and durability. It is often used as a replacement for metal and other materials, offering similar performance with a lower cost.
G10 epoxy glass laminate offers unique properties that make it suitable for a wide range of applications across various industries. Its high strength, electrical insulation, chemical resistance, and temperature resistance provide significant benefits to many different applications.
