What types of motor insulation paper are there?

2023-12-06 15:43 | By: ZTELEC-www.ztelecgroup.com | 158click

Motor insulation paper, also known as motor insulation material, plays a crucial role in the insulation of electric motors. There are several types of motor insulation paper, each designed for specific applications and insulation requirements. Here are some common types:

Nomex Paper:

Nomex paper is a high-temperature-resistant insulation material made from aramid fibers. It has excellent thermal stability and is often used in applications where the motor operates at high temperatures.

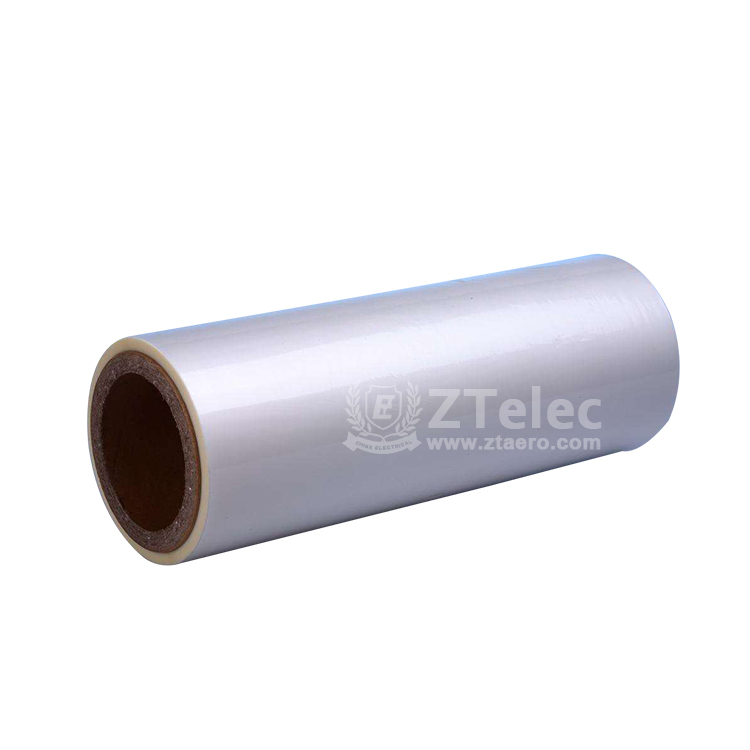

Mylar (Polyester) Film:

Mylar, or polyester film, is a widely used insulation material in electric motors. It provides good electrical insulation properties and is often used in combination with other materials in laminated insulation systems.

Fish Paper (Vulcanized Fiber):

Fish paper, or vulcanized fiber, is a durable and flexible insulation material. It is often used for slot liners, wedges, and other components in electric motors.

Pressboard:

Pressboard is a type of insulating material made from compressed wood fibers. It is used in the construction of transformer coils and motor components due to its excellent dielectric properties.

Crepe Paper:

Crepe paper is a type of insulating paper with a wrinkled or creped texture. It is commonly used in transformer and motor applications, providing good conformability and flexibility.

Kraft Paper:

Kraft paper is a strong and resilient insulating material made from wood pulp. It is often impregnated with oils or resins for enhanced dielectric strength and used in the insulation of motor coils.

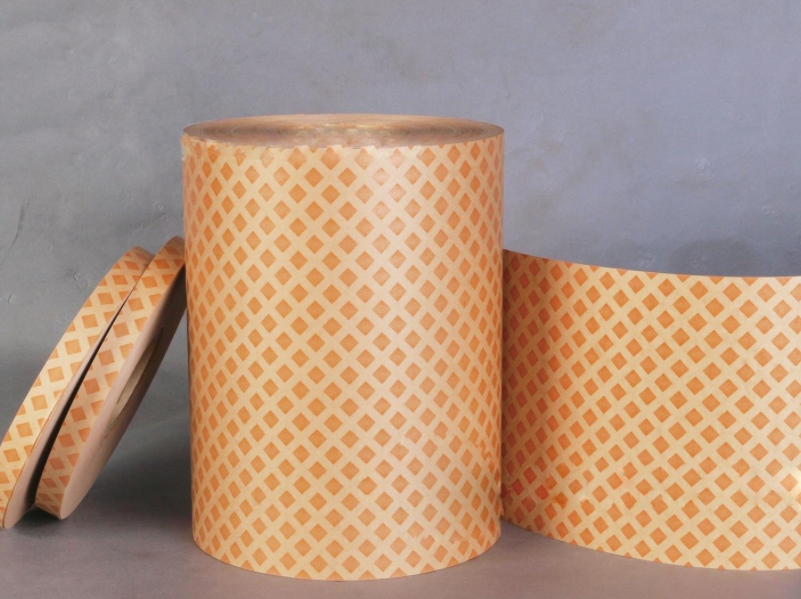

Diamond Dotted Paper:

Diamond dotted paper is a type of insulating paper with diamond-shaped epoxy resin dots applied to one or both sides. It is used for layer insulation in transformers and motors, providing additional strength and reliability.

Polyimide Film (Kapton):

Polyimide film, commonly known by the trade name Kapton, is a high-temperature-resistant and flexible insulation material. It is used in applications where extreme temperatures and high-performance insulation are required.

Glass Fiber Insulation Paper:

Glass fiber insulation paper is impregnated with resin and reinforced with glass fibers. It provides good mechanical strength and is used in motors where high temperatures and mechanical stress are factors.
