Single-Phase Oil-Immersed Transformers: Power Solutions for Homes and Small Businesses

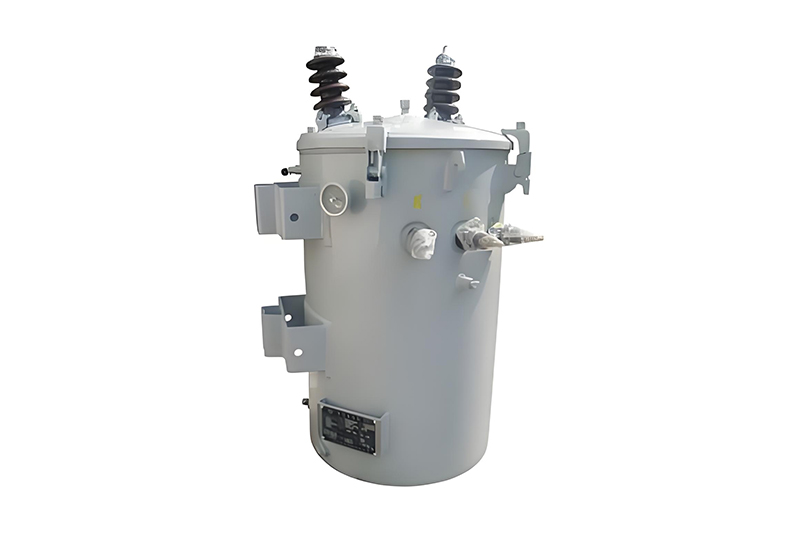

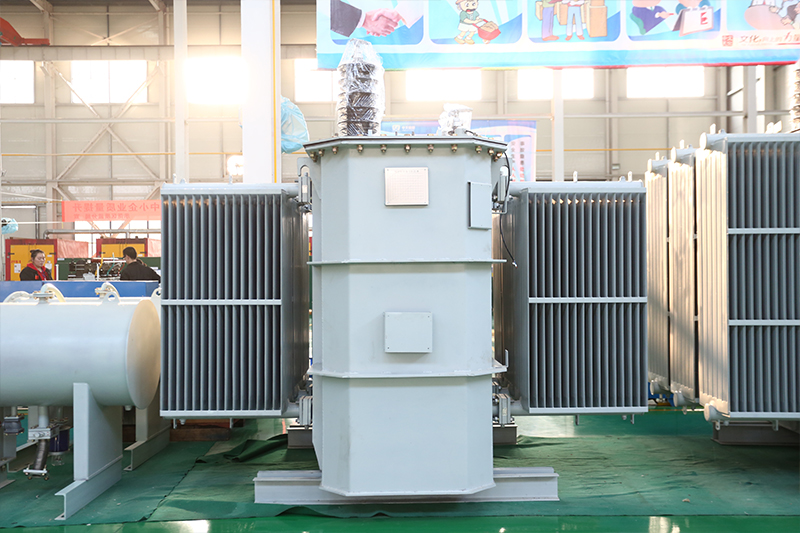

Single-phase oil-immersed transformers are designed for single-phase AC systems, offering efficient heat dissipation through natural oil or air cooling, and sometimes forced oil circulation. With a compact structure and reliable performance, they serve as vital links between the high-voltage grid and end-users, making them ideal for homes, workshops, and small commercial applications.

Structure and Performance Advantages

The strength of single-phase oil-immersed transformers lies in their optimized structural design. With only one winding and compact construction, these transformers are easy to install in limited spaces. Their insulating oil provides effective electrical insulation and efficient thermal management, ensuring durability in outdoor and humid environments.

Standard capacity ranges from 10kVA to 500kVA (as per IEC 60076), precisely matching residential and small-scale commercial energy demands without the complexity of high-capacity substation transformers.

Application Scenarios

Residential Power Supply

These transformers play a vital role in home power systems by stepping down voltages (e.g., from 10kV to 220V/380V), ensuring safe use of appliances like lighting, air conditioners, and refrigerators. In renewable energy setups, such as solar or wind-powered home microgrids, they help match inverter outputs to grid voltage for seamless integration and energy export. Additionally, when paired with diesel generators, they enable emergency power delivery to essential household equipment during outages.

Support for Small Businesses and Special Use Cases

For small factories and workshops, single-phase transformers provide voltage stability to protect equipment like looms and refrigeration systems from harmful fluctuations. In commercial settings such as shopping malls and office buildings, they reduce high-voltage input to levels suitable for lighting, elevators, and HVAC systems. In agriculture, they support modern irrigation and automation by powering pumps and smart control systems in rural and remote environments.

Selection and Installation Guidelines

Proper Transformer Selection

Users should calculate total load requirements and apply a safety margin of at least 1.2. For instance, a home with 8kW demand should consider a transformer rated at 10kVA or more to accommodate future load expansion. Businesses should also consider high starting currents of inductive loads like motors to prevent startup overloads.

Installation Best Practices

Transformers must be placed at least 1.5 meters from adjacent structures with sufficient space around them for ventilation. Outdoor units should rest on a concrete base at least 30cm high to avoid water damage and reduce vibration transmission. Proper spacing also ensures safe dissipation of heat and minimizes fire risk.

Routine Maintenance and Fault Prevention

Regular inspections are essential. Maintenance personnel should check oil levels, monitor oil temperature, and test insulation strength every six months. Annual surface cleaning, seal inspections, and debris removal are critical to protect against moisture and dirt. If abnormal conditions like loud humming, oil leaks, or rapid temperature rise occur, the transformer should be shut down immediately and inspected by professionals to avoid severe damage.

Single-phase oil-immersed transformers are reliable, cost-effective, and highly adaptable solutions for power supply in homes and small businesses. Their simplicity, efficiency, and ruggedness make them ideal for locations with stable loads and challenging environmental conditions, such as rainy or humid areas.

To ensure long-term reliability and safety, users must focus on proper model selection, professional installation, and ongoing maintenance. In regions with extreme temperatures or near hazardous materials, custom transformer solutions designed by certified engineers are strongly recommended.
