Compact Enclosed Transformer for Smart Grid: Technical Overview and Application Guide

Smart grid development requires power equipment that is not only capable of voltage transformation, but also highly digitalized, remotely controllable, and system-integrated. Traditional open-type transformers are increasingly unable to meet these requirements.

The compact enclosed transformer integrates the transformer body, switching devices, protection systems, and monitoring modules into a sealed structure. This design significantly improves system reliability, reduces footprint, and enhances adaptability to urban environments.

It is widely used in urban distribution networks, underground substations, industrial parks, and renewable energy systems.

What Is a Compact Enclosed Transformer?

A compact enclosed transformer (CET) is a fully integrated power distribution unit that combines the transformer core, high-voltage switchgear, low-voltage distribution system, protection devices, and intelligent monitoring units into a single enclosed structure.

The enclosure is typically made of stainless steel, galvanized steel, or composite fiberglass materials, providing protection levels of IP54 or higher.

Compared with conventional open installations, all electrical components are modularized into one system, enabling a complete high-to-low voltage distribution solution within a compact footprint.

Key concept: Compact size, fully enclosed protection, and smart grid-ready digital interface with remote monitoring capability.

Smart Grid Requirements for Transformers

Modern smart grids demand more than basic voltage transformation. Power equipment must support real-time monitoring, remote control, and automated decision-making.

Key requirements include:

Real-time data acquisition of voltage, current, power factor, harmonics, temperature, and load conditions with seamless SCADA integration.

Space-efficient design to reduce installation footprint by 30%–50% in urban substations and underground installations.

High reliability with minimal maintenance and support for self-diagnosis under energized operation.

Strong environmental adaptability to withstand humidity, corrosion, dust, and temperature variations while ensuring operational safety.

Core Structure of Compact Enclosed Transformers

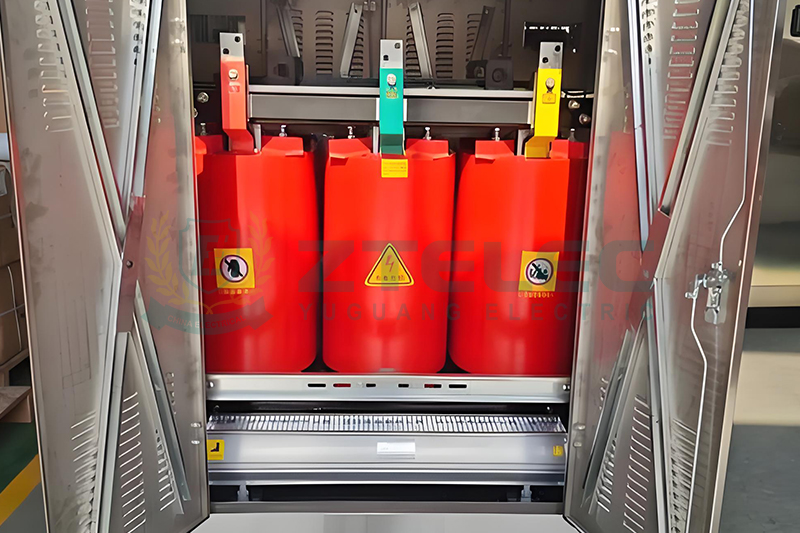

Transformer Unit

The core typically uses grain-oriented silicon steel or amorphous alloy materials. Windings are made of copper or aluminum conductors with insulation classes F (155°C) or H (180°C).

Dry-type transformer designs are widely used in metro systems, tunnels, and high-rise buildings due to their fire safety and environmental advantages.

High Voltage Switchgear Unit

This unit integrates load switches or vacuum circuit breakers, providing short-circuit protection and overload protection. It supports both manual and motorized operation for remote and local control.

Low Voltage Distribution Unit

The low-voltage section includes main breakers, busbar systems, and outgoing feeders. Intelligent electronic trip units enable selective protection and fast fault isolation.

Intelligent Monitoring Unit (IED)

This is the key component that differentiates modern smart transformers from traditional equipment.

It includes intelligent electronic devices for measuring electrical parameters such as voltage, current, power, and energy consumption.

Temperature sensors monitor winding hotspots, core temperature, and ambient conditions in real time.

Partial discharge monitoring modules detect insulation degradation early.

Communication interfaces support RS485/Modbus, IEC 61850, and 4G/5G connectivity for seamless integration with smart grid platforms.

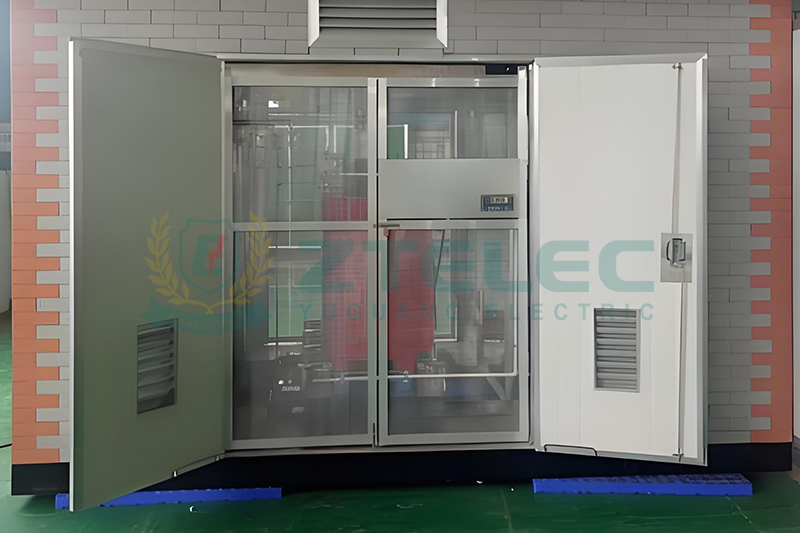

Enclosure and Protection System

The enclosure complies with IEC 62271 and related standards. It may include natural ventilation or forced air cooling systems, as well as anti-condensation heating systems for low-temperature environments.

Smart Technology Features

Online Monitoring and Predictive Maintenance

Continuous 24/7 data collection enables cloud-based digital twin analysis. Machine learning algorithms detect early fault trends and provide warnings 7–30 days in advance, shifting maintenance from reactive repair to predictive maintenance.

IEC 61850 Communication Support

Support for IEC 61850 enables high-speed interoperability with protection relays, measurement units, and control systems using GOOSE and MMS protocols, ensuring full integration into smart substations.

Demand Response and Voltage Regulation

The system supports remote tap changer control and dynamic voltage regulation, improving power quality and enabling flexible integration of distributed energy resources such as solar and storage systems.

Fault Isolation and Self-Healing Capability

In case of abnormal conditions, the system can isolate faults within milliseconds and report fault locations to the control center, significantly reducing outage duration and improving system reliability.

Application Scenarios

Urban Underground Utility Tunnels

Compact enclosed transformers are ideal for underground installations where space is limited and environmental conditions are harsh. Their sealed design ensures high reliability and low maintenance requirements.

Urban Rail Transit Systems

Metro and light rail systems require strict fire safety and noise control standards. Dry-type compact enclosed transformers meet these requirements with high safety performance.

Renewable Energy Integration

Widely used in wind farms and photovoltaic substations, these transformers are designed to operate under harsh environments such as high altitude, extreme temperature variations, and high salinity conditions.

Industrial Parks and Data Centers

These applications require extremely high reliability levels. Compact enclosed transformers provide redundant protection and fast fault isolation to ensure continuous power supply.

Urban Power Grid Renovation

In densely populated urban areas, compact design reduces civil construction requirements and enables fast installation, significantly lowering project cost and construction time.

Key Selection Parameters

When selecting a compact enclosed transformer, the following parameters should be considered:

Rated capacity should include 20%–30% margin based on load forecasting.

Protection rating should be IP54 or higher for outdoor applications and IP65 for underground installations.

Insulation class should be F or H grade depending on thermal requirements.

Communication protocols should support IEC 61850 or Modbus TCP for smart grid compatibility.

Noise level should be controlled below 55 dB in urban environments.

Compliance with IEC 60076, GB standards, and relevant international regulations is required.

Anti-corrosion treatment should be C4 or C5 grade in coastal and industrial environments.

Market Trends and Future Outlook

Driven by national smart grid initiatives, investment in power distribution infrastructure continues to grow. During the 14th Five-Year Plan period, distribution network investment is expected to exceed 1.2 trillion RMB.

Compact enclosed transformers are becoming a standard solution for smart grid terminals, with annual market growth expected to exceed 15%.

Future development will move toward deeper integration with solid-state transformer (SST) technology, enabling flexible voltage conversion and active power quality management for next-generation smart grids.

Compact enclosed transformers represent a key evolution in modern power distribution equipment, combining compact design, full enclosure protection, and intelligent monitoring capabilities.

They effectively address urban space limitations while meeting the growing demands of smart grid systems for digitalization, controllability, and reliability.

As power systems continue to evolve, selecting advanced compact enclosed transformer solutions will play a critical role in building resilient and intelligent energy infrastructure.
