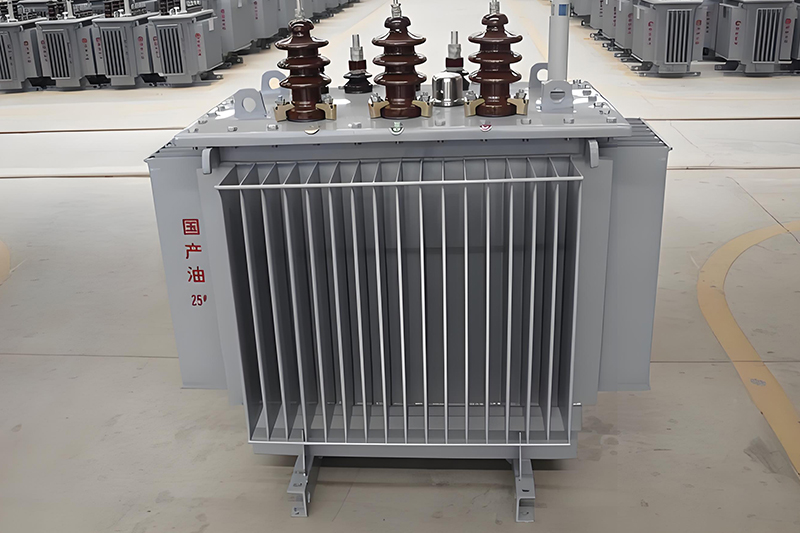

10kV Oil-Immersed Transformer Safety: Lightning, Short-Circuit, and Overload Protection

10kV oil-immersed transformers are essential in power distribution networks. Their operational stability directly affects the reliability of regional electricity supply. In real-world operation, lightning strikes, short circuits, and overloads are the three primary risks threatening transformer safety. This article provides a detailed analysis of these risks and explains key protective measures for 10kV oil-immersed transformers, offering valuable guidance for engineers, power station operators, and industry professionals.

1. Lightning Overvoltage Protection

Lightning overvoltage poses a significant risk to transformer safety. Installing a lightning arrester on the high-voltage side is standard practice, but low-voltage side protection is often overlooked. Lightning waves can penetrate from low-voltage lines, especially in rural areas with long overhead lines, damaging winding insulation. Surge protectors are increasingly used in place of traditional low-voltage arresters.

Key Installation Points

• Proximity: Install the arrester as close as possible to the transformer and keep the grounding lead short to reduce residual voltage caused by lead inductance.
• Reliable Grounding: Connect the arrester ground terminal to the same grounding grid as the transformer casing and neutral grounding wire. Grounding resistance must meet regulatory standards, typically ≤4Ω.

2. Short-Circuit Protection

Short-circuit faults generate electrodynamic forces and heat many times the rated current, potentially deforming windings and burning insulation. Protective measures vary based on transformer capacity and criticality.

Relay Protection (for Large or Critical Transformers)

• Differential Protection: Compares current differences between high-voltage and low-voltage sides to detect internal faults. Trips immediately on imbalance.
• Overcurrent Protection: Acts as backup. Definite time or inverse time protection handles external short-circuit faults effectively.
• Gas Relay (Buchholz Relay): Detects internal faults by monitoring gas accumulation from oil decomposition. Light gas triggers alarms; heavy gas trips the transformer immediately.

High-Voltage Fuse (for Small or Secondary Transformers)

High-voltage fuses offer an economical short-circuit protection solution. When a short-circuit current passes through, the fuse melts and interrupts the circuit. Fuse specifications must match transformer requirements for breaking capacity and ampere-second characteristics.

3. Overload Protection

Long-term overloads shorten transformer lifespan, increase copper losses, and accelerate insulation aging. Early detection is challenging but essential to prevent accidents.

Oil Temperature Monitoring System

• Oil Surface Thermometer: Monitors upper oil temperature with alarm and trip thresholds (e.g., alarm at 85°C, trip at 95°C).
• Winding Thermometer: Simulates hottest point in the winding for accurate temperature monitoring, providing precise data for overload protection.

Overload Protection Relay

Integrated with relay protection, overload protection uses an inverse time characteristic: the higher the overload factor, the faster the relay operates. Combined with temperature monitoring, this system provides comprehensive overload protection.

4. Comprehensive Transformer Safety

Safe operation of 10kV oil-immersed transformers requires coordinated protection measures:

• Lightning arresters for high- and low-voltage sides
• Differential and overcurrent relay protection
• Gas relays (Buchholz relays)
• High-voltage fuses
• Oil and winding temperature monitoring systems

Understanding each protective device, performing routine maintenance, and leveraging advanced monitoring technologies can extend transformer life and ensure stable power distribution.
