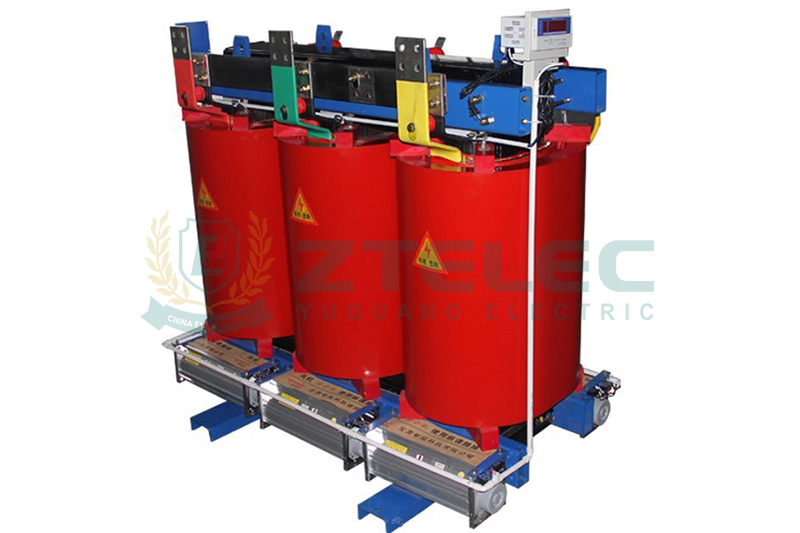

315 KVA Cast Resin Dry Type Transformer – Compact, Fire-Safe & Reliable Power Distribution Solution

As commercial buildings, industrial facilities, hospitals, data centers, and public infrastructure demand higher levels of electrical safety, the 315 KVA Cast Resin Dry Type Transformer has become one of the most popular medium-voltage distribution transformers worldwide. Unlike oil-filled transformers, cast resin transformers eliminate fire risks associated with insulating oil while providing excellent reliability, environmental protection, and low maintenance.

The 315 KVA dry type transformer offers an ideal balance between power capacity, installation footprint, operating efficiency, and lifecycle cost, making it a preferred choice for indoor power distribution systems.

What Is a 315 KVA Cast Resin Dry Type Transformer?

A cast resin dry type transformer is an electrical transformer that uses epoxy resin encapsulated windings instead of insulating oil. During manufacturing, the high-voltage windings are vacuum-cast with epoxy resin to create a moisture-resistant, dust-proof, and flame-retardant insulation system.

Heat is dissipated through natural air circulation (AN) or forced air cooling (AF), eliminating the need for oil tanks, conservators, or oil maintenance. This design significantly improves operational safety while reducing environmental risks.

The 315 KVA rating is one of the most widely used transformer capacities for medium-sized commercial buildings, manufacturing plants, educational institutions, healthcare facilities, renewable energy systems, and municipal infrastructure.

Key Features of a 315 KVA Cast Resin Transformer

Vacuum Cast Epoxy Resin Windings

The high-voltage coils are vacuum-cast using premium epoxy resin, ensuring excellent dielectric strength and eliminating internal air pockets. This construction provides outstanding resistance to moisture, dust, salt spray, and corrosive industrial environments.

Compact Space-Saving Design

Without oil tanks or cooling radiators, the transformer occupies considerably less installation space than an equivalent oil immersed transformer. Its compact dimensions make it ideal for indoor substations, commercial basements, container substations, and electrical rooms with limited space.

Superior Fire Safety

Because no insulating oil is used, the transformer presents virtually no risk of oil leakage or fire caused by combustible liquid insulation. Many models comply with F1 fire behavior classification, making them suitable for locations with strict fire protection regulations.

Environmentally Friendly

The absence of mineral oil eliminates soil and groundwater contamination risks while reducing environmental maintenance requirements throughout the transformer's operating life.

Low Maintenance Requirements

Routine maintenance generally consists of periodic visual inspection, dust cleaning, and thermal monitoring. Since there is no transformer oil to sample or replace, operating costs remain significantly lower over the equipment lifecycle.

Long Service Life

When properly installed and maintained, a 315 KVA cast resin transformer typically provides more than 25 years of reliable operation with stable insulation performance.

Typical Technical Specifications

Technical specifications can be customized according to voltage ratings, impedance, noise level, altitude, harmonic load, enclosure protection, and project-specific requirements.

Applications of 315 KVA Cast Resin Dry Type Transformers

The versatility of a 315 KVA dry type transformer makes it suitable for numerous industries and infrastructure projects.

Commercial Buildings

Shopping malls, office buildings, hotels, and mixed-use developments benefit from compact installation and enhanced fire protection.

Hospitals and Healthcare Facilities

Medical facilities require highly reliable power distribution with minimal fire hazards, making cast resin transformers an ideal solution.

Data Centers

Mission-critical facilities require transformers with stable thermal performance, low maintenance, and high operational reliability.

Educational Institutions

Schools and universities often install dry type transformers indoors due to their excellent safety characteristics and quiet operation.

Industrial Manufacturing Plants

Factories exposed to humidity, dust, or corrosive environments benefit from epoxy resin encapsulated windings that provide superior environmental resistance.

Metro and Railway Systems

Underground substations require transformers with compact dimensions, flame-retardant construction, and dependable operation.

Renewable Energy Projects

Solar power plants, battery energy storage systems, and wind farms increasingly utilize cast resin transformers for environmentally friendly power distribution.

Why Choose a 315 KVA Transformer?

The 315 KVA capacity represents one of the most practical transformer sizes for medium-sized electrical loads. It provides sufficient reserve capacity for future expansion while avoiding unnecessary capital investment associated with oversized transformers.

For facilities with demand ranging between approximately 250 KVA and 350 KVA, a 315 KVA transformer generally delivers optimal loading efficiency, improved energy performance, and longer service life.

How to Select the Right 315 KVA Dry Type Transformer

Proper transformer selection involves more than choosing the rated capacity. Engineers should evaluate future load growth, installation altitude, ambient temperature, harmonic distortion, cooling requirements, enclosure protection, voltage regulation, and local electrical standards.

Projects containing UPS systems, variable frequency drives (VFDs), data centers, or renewable energy equipment may require transformers designed to handle elevated harmonic currents.

315 KVA Dry Type Transformer vs Oil Filled Transformer

Buying Guide for 315 KVA Cast Resin Transformers

When sourcing a 315 KVA cast resin transformer, buyers should verify compliance with international standards such as IEC 60076-11, request certified routine and type test reports, evaluate manufacturer experience, confirm customization capabilities, and assess warranty coverage and technical support.

It is also advisable to discuss delivery schedules, transportation methods, installation guidance, and after-sales service before placing an order, particularly for large infrastructure projects.

The 315 KVA Cast Resin Dry Type Transformer delivers outstanding electrical safety, reliable performance, compact installation, and low operating costs, making it one of the most cost-effective transformer solutions for modern indoor power distribution systems.

Whether used in commercial buildings, hospitals, industrial facilities, data centers, transportation infrastructure, or renewable energy projects, this transformer provides long-term operational reliability while meeting increasingly stringent environmental and fire protection standards.

If your project requires a customized 315 KVA dry type transformer, working with an experienced manufacturer ensures optimized technical specifications, international certification compliance, and dependable long-term performance.
