7.2KV Switchgear: Complete Guide to Technical Specifications, Applications & Selection

Modern power distribution systems require equipment that delivers exceptional safety, reliability, operational flexibility, and long service life. Among medium-voltage electrical equipment, 7.2KV switchgear has become one of the most widely used solutions for industrial plants, commercial facilities, renewable energy projects, mining operations, utilities, and substations.

Designed to control, protect, isolate, and monitor electrical circuits, 7.2kV switchgear provides efficient power distribution while minimizing downtime and protecting valuable electrical assets from overloads, short circuits, and earth faults.

This comprehensive guide explains everything you need to know about 7.2KV switchgear, including its working principles, technical specifications, switchgear types, components, applications, advantages, international standards, maintenance practices, and future technology trends.

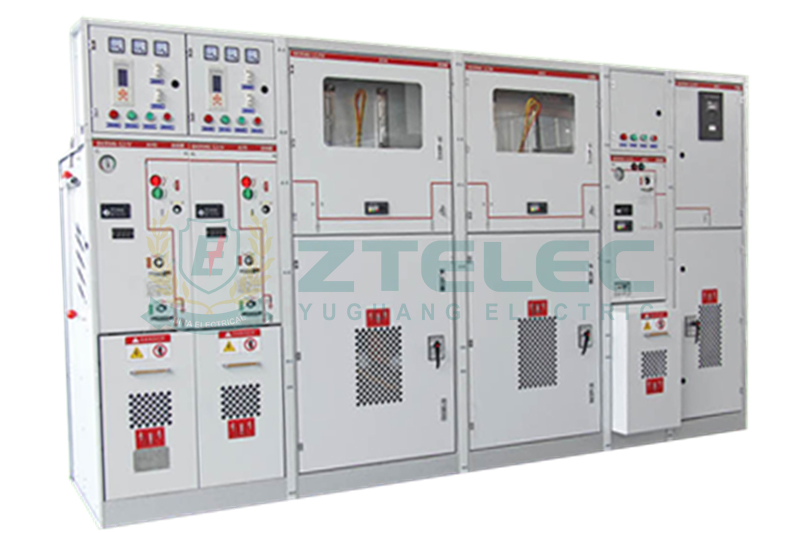

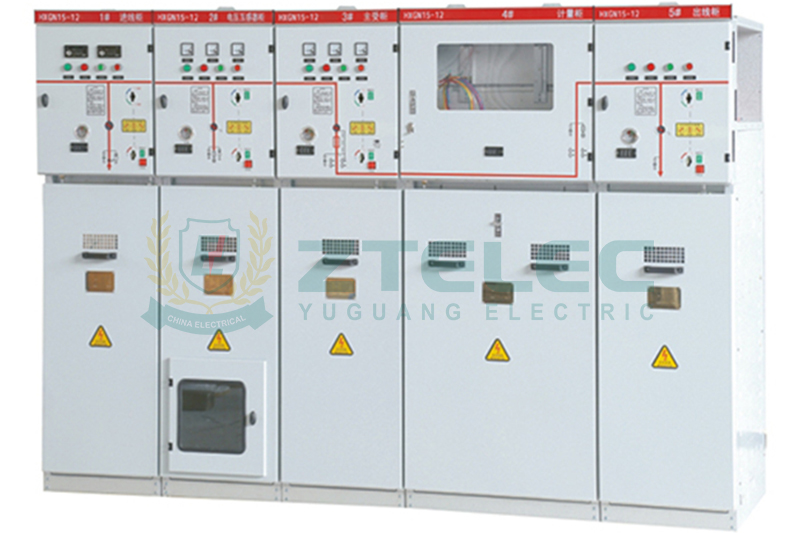

What is 7.2KV Switchgear?

7.2KV switchgear is a medium-voltage electrical switchgear assembly designed for systems with a maximum rated voltage of 7.2kV. It integrates switching devices, circuit breakers, protection relays, measuring instruments, busbars, disconnectors, grounding switches, and intelligent monitoring systems into one coordinated electrical distribution unit.

Its primary purpose is to safely distribute electrical power while protecting transformers, motors, generators, feeders, and cables against electrical faults.

Typical functions include switching normal loads, interrupting short-circuit currents, isolating equipment for maintenance, monitoring electrical parameters, and supporting automatic system control through SCADA or intelligent protection systems.

Why Choose 7.2KV Switchgear?

Compared with lower-voltage distribution equipment, 7.2kV switchgear offers higher transmission efficiency and supports larger electrical loads while reducing current and conductor size.

Compared with higher-voltage switchgear such as 12kV or 24kV systems, 7.2kV equipment provides an excellent balance between investment cost, installation space, operating efficiency, and maintenance requirements.

This voltage class is particularly suitable for industrial facilities, utility substations, manufacturing plants, transportation infrastructure, and renewable energy projects.

Types of 7.2KV Switchgear

Air Insulated Switchgear (AIS)

AIS uses air as the primary insulation medium. It offers a simple structure, lower procurement cost, and convenient maintenance. It is commonly used in factories, outdoor substations, and industrial facilities where installation space is sufficient.

Gas Insulated Switchgear (GIS)

GIS utilizes SF₆ gas or environmentally friendly alternative gases for insulation. Compared with AIS, GIS occupies significantly less space, provides excellent protection against dust and moisture, and is ideal for urban substations, offshore platforms, and underground electrical rooms.

Metal-Enclosed Switchgear

Metal-enclosed switchgear features enclosed compartments for improved operational safety and modular installation. It is widely used in commercial buildings, hospitals, data centers, and manufacturing facilities.

Metal-Clad Switchgear

Metal-clad switchgear offers the highest level of personnel safety by separating each functional compartment with grounded metal barriers. This design minimizes fault propagation and simplifies maintenance.

Solid Insulated Switchgear (SIS)

Solid insulated switchgear replaces gas insulation with advanced solid dielectric materials, offering environmentally friendly operation, compact dimensions, and reduced maintenance requirements.

Main Components of 7.2KV Switchgear

A complete 7.2KV switchgear assembly typically consists of several integrated components working together to ensure safe and reliable power distribution.

Technical Specifications

Typical Applications

7.2KV switchgear is widely deployed across numerous industries due to its versatility and high reliability.

Steel plants use 7.2kV switchgear to power rolling mills, electric arc furnaces, and heavy production equipment.

Mining companies rely on it for crushers, conveyor systems, ventilation equipment, and underground substations.

Cement factories install 7.2kV switchgear for kilns, mills, and large motors operating under dusty conditions.

Oil and gas facilities require reliable switchgear for pumping stations, compressor systems, and offshore platforms.

Renewable energy projects use 7.2kV switchgear to collect and distribute electricity generated by wind turbines and photovoltaic plants.

Commercial buildings, airports, hospitals, universities, data centers, metro systems, and water treatment plants also benefit from its safe and dependable power distribution capabilities.

Advantages of 7.2KV Switchgear

High Operational Safety

Modern switchgear incorporates internal arc-resistant structures, mechanical interlocking systems, grounding switches, and intelligent protection relays to maximize personnel safety.

Outstanding Reliability

Vacuum circuit breakers provide long mechanical and electrical life with minimal maintenance, ensuring stable operation for decades.

Compact Installation

GIS and metal-clad designs significantly reduce installation space, making them ideal for urban substations and buildings with limited electrical room capacity.

Low Maintenance Costs

Advanced insulation systems and maintenance-free vacuum interrupters greatly reduce service intervals and operating expenses.

Excellent Electrical Performance

High short-circuit interrupting capability ensures stable system operation during electrical faults while minimizing equipment damage.

7.2KV vs Other Medium Voltage Levels

For most medium-sized industrial facilities, 7.2KV switchgear offers the best balance between investment, performance, safety, and future expansion capability.

Installation Recommendations

Proper installation is essential for ensuring long-term reliability.

The switchgear room should provide adequate ventilation, sufficient operating clearance, and a solid foundation.

Cable terminations should be carefully installed using qualified accessories and torque specifications.

A reliable grounding system must comply with applicable electrical standards.

Commissioning should include insulation resistance testing, circuit breaker timing tests, relay calibration, and functional verification before energization.

Maintenance Best Practices

Many modern switchgear systems now support predictive maintenance through IoT sensors, enabling continuous monitoring of temperature, humidity, insulation status, breaker operations, and equipment health.

International Standards

High-quality 7.2KV switchgear is typically manufactured according to internationally recognized standards.

IEC 62271-1 for common specifications.

IEC 62271-100 for AC circuit breakers.

IEC 62271-200 for metal-enclosed switchgear.

IEC 61850 for intelligent substation communication.

IEC 60529 for enclosure protection ratings.

ANSI C37 series for North American applications.

Future Development Trends

The medium-voltage switchgear industry is rapidly evolving toward smarter, greener, and more compact solutions.

Digital substations now integrate intelligent sensors, cloud monitoring, artificial intelligence diagnostics, and predictive maintenance platforms.

Vacuum interruption technology continues replacing SF₆ gas in many applications to reduce greenhouse gas emissions.

Modular switchgear enables faster installation, easier expansion, and lower project costs.

Renewable energy integration is driving demand for intelligent switchgear capable of supporting distributed energy resources and smart grid operation.

Why Choose a Professional Switchgear Manufacturer?

An experienced manufacturer provides more than standard equipment. Professional suppliers offer complete engineering design, customized electrical solutions, factory acceptance testing (FAT), IEC and ANSI compliant products, OEM/ODM manufacturing, technical training, spare parts support, and long-term after-sales service.

Selecting certified 7.2KV switchgear from a reliable manufacturer ensures maximum operational safety, lower lifecycle costs, excellent system reliability, and long-term performance for industrial and utility applications.

7.2KV switchgear is a critical component of modern medium-voltage power distribution systems. Combining advanced protection technology, compact design, excellent reliability, and intelligent monitoring capabilities, it provides safe and efficient electrical distribution for a wide range of industries.

Whether applied in manufacturing plants, substations, renewable energy projects, commercial facilities, or critical infrastructure, high-quality 7.2KV switchgear delivers outstanding operational performance, minimizes downtime, and supports the future development of smart, sustainable electrical networks.
