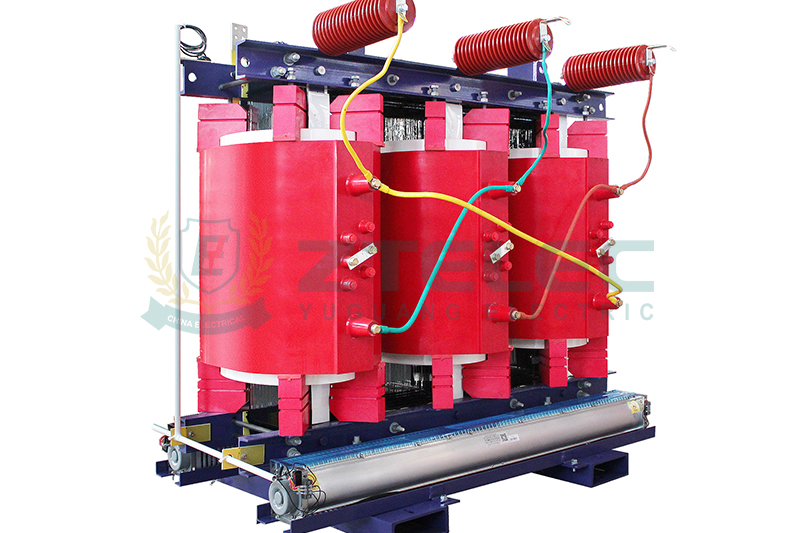

11kV Cast Resin Transformer

Why Read This Guide?

This comprehensive guide explains everything you need to know before selecting an 11kV dry type transformer.

You will learn about transformer specifications, efficiency ratings, insulation classes, cooling methods, application industries, international standards, selection criteria, maintenance recommendations, and how to choose the right transformer for your project.

Whether you are an electrical engineer, EPC contractor, project consultant, purchasing manager, or utility company, this guide will help you make an informed investment decision while reducing lifetime operating costs.

What Is an 11kV Dry Type Transformer?

An 11kV dry type transformer is a medium-voltage distribution transformer designed to convert 11kV electrical power into lower voltages such as 400V, 415V, 690V, or other customized voltages without using insulating oil.

Instead of mineral oil, the transformer windings are insulated using high-performance solid insulation materials that provide outstanding dielectric strength, excellent thermal stability, and superior fire resistance.

Because there is no liquid insulation inside the transformer, dry type transformers are considered environmentally friendly and are particularly suitable for indoor installations where fire safety and environmental protection are major concerns.

Main Types of 11kV Dry Type Transformers

Cast Resin Dry Type Transformer

Cast resin transformers encapsulate both high-voltage and low-voltage windings in epoxy resin under vacuum pressure. This construction provides exceptional resistance against moisture, dust, corrosion, chemicals, vibration, and partial discharge.

Cast resin transformers are currently the most popular type of 11kV dry type transformer for commercial and industrial applications because they require minimal maintenance and offer outstanding operational reliability.

VPI Dry Type Transformer

Vacuum Pressure Impregnated (VPI) transformers use polyester or epoxy resin impregnated into the winding insulation through vacuum processing. They provide excellent cooling performance, lightweight construction, and competitive pricing for many industrial applications.

Open Ventilated Dry Type Transformer

Open ventilated transformers use varnish-treated insulation without complete resin encapsulation. Although economical, they are generally recommended only for clean indoor environments where dust, humidity, and corrosive gases are minimal.

How Does an 11kV Dry Type Transformer Work?

The transformer operates according to the principle of electromagnetic induction.

The primary winding receives an 11kV medium-voltage input from the electrical grid. Magnetic flux generated by the transformer core induces voltage into the secondary winding, reducing the voltage to the required output level for downstream electrical equipment.

Unlike oil immersed transformers that rely on insulating oil for cooling, dry type transformers dissipate heat through natural air circulation (AN) or forced air cooling (AF).

This oil-free cooling method significantly improves fire safety while reducing environmental risks.

Typical Voltage Configurations

Primary Voltage	Secondary Voltage	Typical Application
11kV	400V	Commercial Buildings
11kV	415V	Industrial Facilities
11kV	690V	Wind Turbines
11kV	6.6kV	Large Motors
11kV	Customized	Utility & EPC Projects

Technical Specifications of ZTELEC YUGUANG 11kV Dry Type Transformers

All ZTELEC YUGUANG transformers are manufactured according to strict international standards and undergo comprehensive routine tests before shipment.

Parameter	Standard Specification	Custom Options
Power Rating	500kVA – 10MVA	Up to 20MVA
Primary Voltage	11kV	6.6kV, 10kV, 13.8kV, 22kV, 33kV
Secondary Voltage	400V / 415V	690V, 3.3kV, 6.6kV, Customized
Frequency	50Hz / 60Hz	Customized
Cooling Method	AN / AF	Intelligent Fan Cooling
Insulation Class	Class F / Class H	Customized
Efficiency	Above 98.5%	Up to 99.2%
No-load Loss	Ultra-low Loss Design	Amorphous Core Available
Load Loss	Optimized Copper Windings	Premium Efficiency Design
Protection Degree	IP00 / IP20 / IP23	IP44 / IP54
Cooling	Natural Air (AN)	Forced Air (AF)
Applicable Standards	IEC 60076, IEEE C57.12, GB/T10228	Customer Standards

Outstanding Performance Features

ZTELEC YUGUANG 11kV dry type transformers are engineered with high-grade silicon steel cores, oxygen-free copper windings, vacuum casting technology, and precision manufacturing processes.

Compared with conventional transformers, our products offer significantly lower no-load losses, lower operating temperatures, reduced noise levels, improved short-circuit withstand capability, and longer service life.

For installations above 1000 meters elevation, high humidity environments, coastal regions, or desert climates, customized designs are available to ensure stable long-term operation.

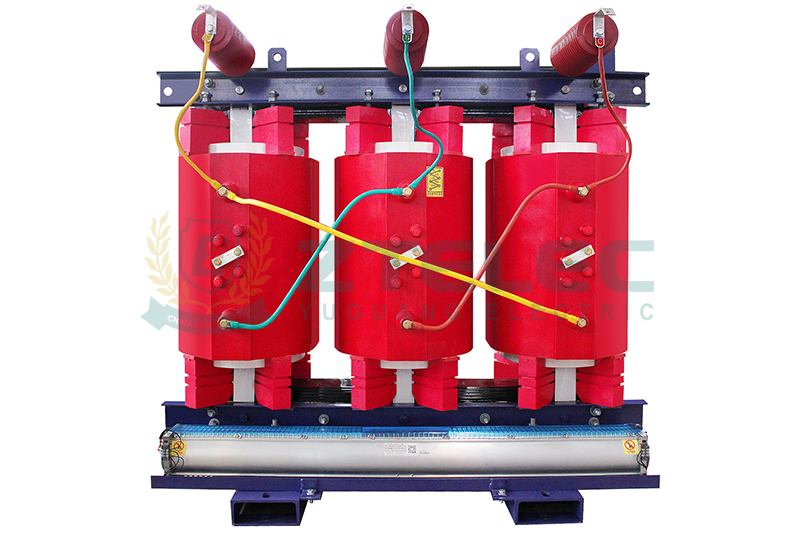

11kV Dry Type Transformer

7 Key Advantages of 11kV Dry Type Transformers

As global industries move toward safer, greener, and more energy-efficient electrical systems, the 11kV dry type transformer has become the preferred choice for modern power distribution. Compared with conventional oil-filled transformers, dry type transformers provide significant advantages in safety, operating efficiency, maintenance costs, environmental protection, and installation flexibility.

Below are the seven primary reasons why engineers, EPC contractors, utilities, and facility owners increasingly specify 11kV dry type transformers for new projects.

1. Superior Fire Safety

One of the biggest advantages of a dry type transformer is the elimination of flammable insulating oil. Since there is no combustible liquid inside the transformer, the risk of fire or explosion is dramatically reduced.

This makes 11kV dry type transformers particularly suitable for hospitals, shopping malls, office buildings, airports, schools, hotels, subway stations, tunnels, and data centers where strict fire protection regulations apply.

Cast resin insulation is self-extinguishing and complies with international fire safety standards, providing an additional layer of protection for both personnel and equipment.

2. Environmentally Friendly Operation

Dry type transformers contain no insulating oil, eliminating concerns related to oil leakage, groundwater contamination, hazardous waste disposal, or expensive oil containment systems.

Many green building certification programs, including LEED-certified projects, encourage the use of dry type transformers because they support sustainable construction and reduce environmental impact throughout the equipment lifecycle.

For urban developments, commercial complexes, and renewable energy projects, environmentally friendly transformer technology has become an increasingly important purchasing factor.

3. Extremely Low Maintenance

Unlike oil immersed transformers that require regular oil sampling, dissolved gas analysis, leak inspections, filtration, and oil replacement, dry type transformers require very little routine maintenance.

Typical maintenance consists of:

Visual inspection of insulation surfaces.

Cleaning accumulated dust.

Checking terminal connections.

Inspecting cooling fans (AF models).

Routine temperature monitoring.

This significantly reduces maintenance costs over the transformer's operating life while improving system availability.

4. High Energy Efficiency

Modern dry type transformers utilize premium grain-oriented silicon steel cores, optimized magnetic circuits, and high-conductivity copper windings to minimize both no-load and load losses.

ZTELEC YUGUANG adopts advanced core cutting technology and vacuum casting processes that help improve efficiency while lowering operating temperatures.

Lower transformer losses directly translate into reduced electricity consumption and lower operating costs over decades of service.

5. Flexible Indoor Installation

Because no oil containment system is required, dry type transformers can be installed much closer to electrical loads.

Typical installation locations include:

Electrical rooms

Building basements

Mechanical floors

Rooftops

Data center power rooms

Hospitals

Commercial complexes

The compact footprint allows designers to maximize valuable building space while simplifying civil construction.

6. Excellent Reliability Under Harsh Conditions

High-quality epoxy resin insulation provides outstanding resistance against moisture, dust, salt spray, chemicals, vibration, and industrial pollution.

Customized versions can operate reliably in:

High humidity environments

Coastal regions

Mining operations

Chemical plants

High-altitude installations

High seismic areas

Desert solar farms

Cold climate regions

These characteristics make dry type transformers ideal for demanding industrial environments.

7. Compliance With International Standards

ZTELEC YUGUANG manufactures transformers in accordance with internationally recognized standards including IEC 60076, IEEE C57.12, GB/T 10228, CE, ISO 9001, ISO 14001, and other customer-specific specifications.

Each transformer undergoes comprehensive factory testing before shipment to ensure outstanding electrical performance, thermal stability, insulation reliability, and mechanical strength.

11kV Dry Type Transformer vs Oil Filled Transformer

Although both transformer types perform the same electrical function, they differ significantly in cooling method, maintenance requirements, installation environment, safety level, and lifecycle cost.

Comparison	11kV Dry Type Transformer	Oil Filled Transformer
Cooling Medium	Air	Mineral Oil
Fire Risk	Very Low	Higher
Oil Leakage	None	Possible
Maintenance	Minimal	Periodic Oil Service
Indoor Installation	Excellent	Limited
Environmental Impact	Environmentally Friendly	Oil Disposal Required
Operating Noise	Lower	Moderate
Installation Cost	Lower Overall	Higher Due to Oil Containment
Typical Applications	Commercial & Industrial Buildings	Outdoor Substations

For indoor distribution systems, commercial buildings, hospitals, airports, metro stations, and critical infrastructure, dry type transformers generally provide the safest and most economical long-term solution.

Typical Applications of 11kV Dry Type Transformers

Because of their excellent safety, efficiency, and environmental performance, 11kV dry type transformers are widely used across numerous industries worldwide.

Commercial Buildings

Office towers, shopping malls, exhibition centers, hotels, and mixed-use developments require reliable power distribution without compromising occupant safety.

Dry type transformers satisfy strict building fire codes while providing compact installation and low operating noise.

ZTELEC YUGUANG supplies 500kVA to 2500kVA transformers specifically designed for commercial distribution systems.

Hospitals and Healthcare Facilities

Hospitals demand continuous electrical power for life-support systems, diagnostic equipment, surgical suites, and emergency facilities.

Oil-free transformers eliminate fire hazards while ensuring maximum operational reliability.

Forced-air cooled models can operate continuously under heavy loading conditions with excellent thermal stability.

Data Centers

Modern cloud computing and AI facilities require uninterrupted electrical power with extremely high efficiency.

ZTELEC YUGUANG provides dry type transformers featuring intelligent temperature monitoring, optional online monitoring systems, and ultra-low losses to reduce operating expenses.

These transformers are widely used in hyperscale data centers, telecommunications facilities, financial institutions, and cloud computing infrastructure.

Renewable Energy Projects

The rapid growth of solar farms, wind power stations, battery energy storage systems (BESS), and microgrids has significantly increased demand for reliable medium-voltage transformers. An 11kV dry type transformer offers outstanding environmental protection, low maintenance, and excellent reliability, making it an ideal solution for renewable energy applications.

ZTELEC YUGUANG provides customized dry type transformers with IP54 enclosures, corrosion-resistant coatings, high-temperature insulation systems, and intelligent monitoring devices specifically designed for harsh outdoor environments.

These transformers are widely used in photovoltaic power plants, wind turbine substations, battery storage systems, hydrogen energy projects, and smart grid applications.

Industrial Manufacturing Plants

Heavy industries such as steel production, cement manufacturing, mining, chemical processing, automotive production, electronics manufacturing, and food processing require transformers capable of operating continuously under fluctuating loads.

Our 11kV dry type transformers feature reinforced mechanical strength, excellent short-circuit withstand capability, optimized cooling systems, and low operating losses, ensuring reliable performance under demanding industrial conditions.

Optional anti-corrosion protection and intelligent monitoring systems further improve transformer reliability while reducing maintenance costs.

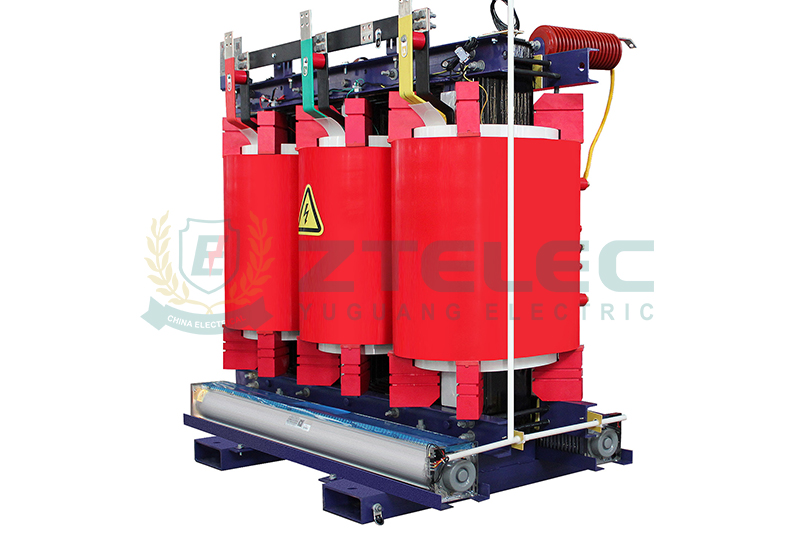

11kV Transformer Manufacturer

How to Choose the Right 11kV Dry Type Transformer

Selecting the appropriate transformer requires evaluating not only transformer capacity but also voltage configuration, installation environment, efficiency requirements, cooling method, insulation class, and applicable standards. The following seven factors should be carefully considered before purchasing.

1. Determine the Required Transformer Capacity

The transformer rating should be selected according to the maximum connected load while allowing sufficient reserve capacity for future expansion.

As a general engineering recommendation, selecting a transformer with approximately 20% to 25% spare capacity helps improve operating efficiency and extends equipment life.

Transformer Capacity	Recommended Applications
500kVA – 1000kVA	Retail Stores, Small Commercial Buildings, Schools
1000kVA – 2500kVA	Hospitals, Hotels, Office Buildings, Shopping Centers
2500kVA – 5000kVA	Data Centers, Manufacturing Plants, Mining Facilities
5000kVA – 10000kVA	Large Industrial Plants, Renewable Energy Projects, Utility Distribution

Choosing an undersized transformer may result in overheating and premature insulation aging, while excessive oversizing increases initial investment and no-load losses.

2. Select the Correct Voltage Configuration

The primary voltage must match the local utility network, while the secondary voltage should correspond to the connected electrical equipment.

ZTELEC YUGUANG offers customized voltage combinations including 6.6kV, 10kV, 11kV, 13.8kV, 22kV, 33kV, 400V, 415V, 690V, 3.3kV, and other customer-specific requirements.

Before ordering, engineers should verify local utility voltage standards and system grounding methods to ensure compatibility.

3. Choose the Appropriate Cooling Method

The cooling method directly influences transformer loading capability and long-term operating temperature.

Cooling Method	Description	Recommended Applications	ZTELEC YUGUANG Features
AN (Air Natural)	Natural air convection without cooling fans	Commercial buildings, offices, hotels, schools	Silent operation and energy-efficient performance
AF (Air Forced)	Cooling fans automatically increase airflow	Heavy industrial loads, data centers, renewable energy	Automatic temperature-controlled fan operation

For transformers operating continuously above 70% rated capacity or in ambient temperatures exceeding 40°C, forced-air cooling is strongly recommended.

4. Select the Proper Insulation Class

Insulation class determines the maximum allowable operating temperature and directly affects transformer lifespan.

Insulation Class	Maximum Temperature	Typical Applications	Expected Service Life
Class F	155°C	Commercial and General Industrial Applications	More than 25 Years
Class H	180°C	Steel Plants, Mining, Desert Projects, Data Centers	More than 30 Years

Class H insulation is recommended for installations exposed to high ambient temperatures or continuous heavy loading.

5. Select the Appropriate IP Protection Rating

The enclosure protection rating should be selected according to the installation environment.

Protection Rating	Description	Typical Installation Environment
IP00	Open structure without enclosure	Dedicated indoor electrical rooms
IP20	Finger-safe enclosure with basic dust protection	Commercial and industrial buildings
IP23	Protection against light rain and falling water	Semi-outdoor installations
IP44	Enhanced protection against dust and splashing water	Industrial workshops and humid environments
IP54	Dustproof and weatherproof enclosure	Solar farms, wind farms, coastal regions, mining sites

Selecting the proper enclosure significantly improves transformer reliability and reduces long-term maintenance requirements.

6. Evaluate Energy Efficiency and Transformer Losses

Transformer losses directly influence operating costs throughout the equipment's service life. Although high-efficiency transformers may require a slightly higher initial investment, they often generate substantial electricity savings over decades of continuous operation.

ZTELEC YUGUANG utilizes premium grain-oriented silicon steel, high-purity oxygen-free copper conductors, precision winding technology, and optimized magnetic circuit design to minimize no-load losses and load losses.

Optional amorphous alloy core technology further improves energy efficiency and is particularly suitable for utility distribution networks and renewable energy projects requiring maximum energy savings.

High-efficiency transformers also help projects comply with increasingly stringent energy efficiency regulations in Europe, North America, Southeast Asia, and the Middle East.

7. Verify Certifications and International Standards

Choosing a transformer that complies with internationally recognized standards ensures product quality, electrical safety, and easier project approval.

ZTELEC YUGUANG manufactures transformers in accordance with IEC 60076, IEEE C57.12, GB/T 10228, CE, ISO 9001, ISO 14001, and customer-specific technical specifications.

Routine tests, type tests, temperature-rise tests, impulse withstand tests, partial discharge tests, and factory acceptance tests are performed before shipment to guarantee long-term operational reliability.

For international EPC projects, complete testing reports and certification documents can be provided to support customs clearance, engineering approval, and project commissioning.

11kV Dry Type Transformer Selection Checklist

Before purchasing an 11kV dry type transformer, engineers and procurement teams should verify all key technical parameters to ensure the transformer fully matches the project requirements. A complete evaluation helps reduce installation risks, improve operational efficiency, and minimize future maintenance costs.

Selection Item	Project Requirement	ZTELEC YUGUANG Capability
Transformer Capacity	__________	500kVA – 20MVA
Primary Voltage	__________	6.6kV, 10kV, 11kV, 13.8kV, 22kV, 33kV
Secondary Voltage	__________	400V, 415V, 690V, 3.3kV, 6.6kV, Customized
Frequency	50Hz / 60Hz	Available
Cooling Method	AN / AF	Both Available
Insulation Class	Class F / Class H	Both Available
Protection Degree	IP00 / IP20 / IP23 / IP44 / IP54	Fully Customizable
Efficiency Requirement	≥98.5%	Up to 99.2%
Applicable Standards	IEC / IEEE / GB	Fully Compliant
Special Requirements	Altitude, Humidity, Corrosion, Seismic, Marine Environment	Customized Design Available

Why Choose ZTELEC YUGUANG?

As a professional transformer manufacturer in China, ZTELEC YUGUANG has accumulated decades of experience in transformer research, design, manufacturing, testing, and global project delivery. Our products are exported to more than 80 countries and are widely applied in power utilities, renewable energy projects, industrial facilities, commercial buildings, transportation infrastructure, mining operations, and data centers.

Every transformer is designed with long-term reliability, energy efficiency, and customer-specific requirements in mind. Our engineering team provides complete technical support from project consultation and product selection to manufacturing, factory testing, transportation, installation guidance, and after-sales service.

Our core advantages include advanced production equipment, automatic winding machines, vacuum casting technology, CNC core processing, intelligent testing laboratories, and comprehensive quality management systems.

Whether you require a standard IEC transformer or a fully customized solution, ZTELEC YUGUANG can provide products engineered specifically for your application.

Frequently Asked Questions

What is the difference between an 11kV dry type transformer and an oil-filled transformer?

The primary difference lies in the insulation and cooling medium. Dry type transformers use air and solid insulation materials such as epoxy resin, while oil-filled transformers use insulating oil for both insulation and cooling. Dry type transformers offer higher fire safety, lower maintenance requirements, and better environmental performance, making them ideal for indoor installations.

What is the typical service life of an 11kV dry type transformer?

Under normal operating conditions and with routine maintenance, a high-quality dry type transformer typically operates reliably for 25 to 30 years. Premium designs with optimized insulation systems and intelligent monitoring can achieve even longer service life.

Can 11kV dry type transformers be installed outdoors?

Yes. When equipped with weatherproof enclosures such as IP44 or IP54 protection, dry type transformers can be installed outdoors in renewable energy projects, industrial facilities, substations, and coastal environments.

Which industries commonly use 11kV dry type transformers?

Typical applications include commercial buildings, hospitals, airports, railway systems, metro stations, factories, mining operations, data centers, universities, renewable energy projects, battery energy storage systems (BESS), petrochemical plants, and utility distribution networks.

What international standards should an 11kV dry type transformer comply with?

Most international projects require compliance with IEC 60076, IEEE C57.12, GB/T 10228, CE certification, ISO 9001 quality management standards, and customer-specific technical specifications depending on the destination market.

The 11kV dry type transformer has become the preferred medium-voltage transformer solution for modern electrical distribution systems. Combining outstanding fire safety, environmental protection, high efficiency, compact installation, and low maintenance, it delivers exceptional value across commercial, industrial, utility, and renewable energy applications.

When selecting an 11kV dry type transformer, engineers should carefully evaluate transformer capacity, voltage configuration, cooling method, insulation class, enclosure protection, efficiency, installation environment, and compliance with international standards. Choosing the right transformer not only improves system reliability but also significantly reduces lifetime operating costs.

ZTELEC YUGUANG is committed to providing high-performance, energy-efficient, and fully customized 11kV dry type transformers for customers worldwide. Every transformer is manufactured using premium materials, advanced production technology, and strict quality control procedures to ensure long-term reliability under the most demanding operating conditions.

Whether your project involves a commercial complex, hospital, data center, renewable energy facility, industrial plant, mining operation, or utility substation, our engineering team can recommend the optimal transformer solution tailored to your technical specifications and budget.

Request a Free Technical Consultation

If you are planning an upcoming power distribution project, ZTELEC YUGUANG can help you select the most suitable 11kV dry type transformer based on your voltage requirements, transformer capacity, installation environment, local standards, and long-term operating objectives.

Our specialists provide complete engineering support including transformer selection, customized design, quotation, technical documentation, factory acceptance testing, shipping coordination, installation guidance, and global after-sales service.

Contact ZTELEC YUGUANG today to receive a customized transformer solution, competitive factory pricing, and professional technical support for your next medium-voltage power distribution project.

tags:

11kV dry type transformer

Dry Type Transformer China

11kV Transformer Manufacturer

11kV cast resin transformer

7.2KV Metal Clad Switchgear
