750 KVA Oil Filled Transformer Manufacturer | Factory Direct Supply, High Efficiency & Reliable Performance

The 750 KVA oil filled transformer is one of the most widely used medium-capacity distribution transformers for industrial facilities, commercial buildings, renewable energy projects, and utility power distribution networks. Combining outstanding electrical efficiency, excellent overload capability, and long service life, it provides a dependable solution for continuous power delivery in demanding environments.

If you are searching for a factory direct 750 KVA oil immersed transformer, choosing an experienced manufacturer offers significant advantages including lower purchasing costs, customized specifications, faster production, strict quality control, and comprehensive after-sales support. This guide explains everything buyers need to know before selecting a 750 KVA transformer.

What Is a 750 KVA Oil Filled Transformer?

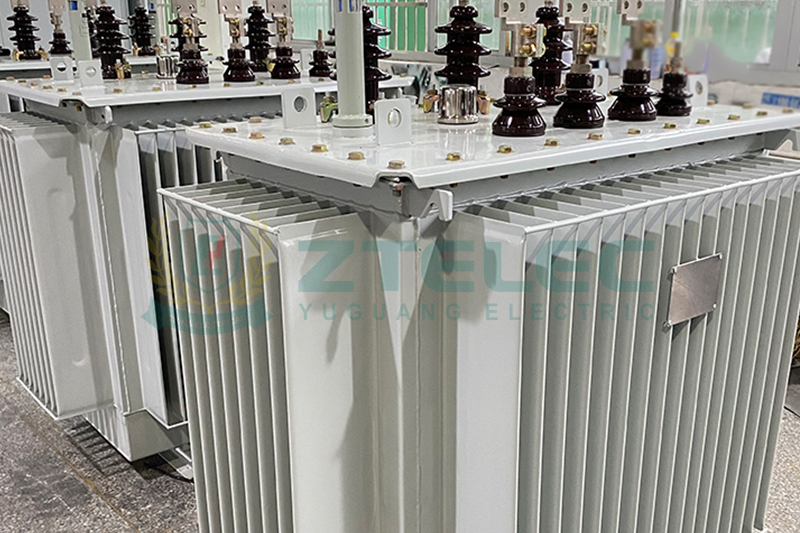

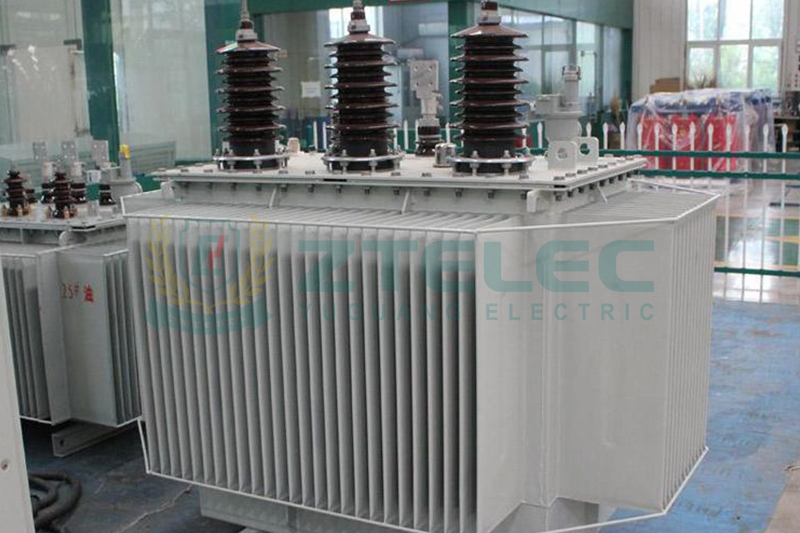

A 750 KVA oil filled transformer is a medium-voltage distribution transformer designed to transfer electrical energy between voltage levels while using high-quality insulating mineral oil or environmentally friendly insulating fluid for both insulation and cooling.

The transformer is commonly used to reduce utility voltages such as 11kV, 13.8kV, 15kV, 22kV, or 33kV down to low-voltage systems including 400V, 415V, 480V, or other customized secondary voltages.

Its 750 KVA rating means it can safely deliver up to 750 kilovolt-amperes of apparent power, making it suitable for medium-sized industrial loads, commercial facilities, infrastructure projects, and renewable energy installations.

Main Components

Magnetic Core
Manufactured from premium cold-rolled grain-oriented (CRGO) silicon steel or amorphous alloy material to minimize no-load losses and improve efficiency.

Copper or Aluminum Windings
Designed with high-conductivity conductors to reduce winding losses and improve short-circuit strength.

Insulating Oil
Provides excellent dielectric insulation while efficiently transferring heat away from internal windings.

Transformer Tank
Constructed from heavy-duty steel with corrosion-resistant surface treatment for long-term outdoor operation.

Bushings
Provide safe and reliable electrical connections between internal windings and external power systems.

Cooling System
Available with ONAN or ONAF cooling methods depending on loading requirements.

Technical Specifications of a 750 KVA Oil Filled Transformer

Item	Specification
Rated Capacity	750 KVA
Transformer Type	Oil Filled Distribution Transformer
Frequency	50Hz / 60Hz
Primary Voltage	6kV, 10kV, 11kV, 13.8kV, 15kV, 22kV, 33kV or customized
Secondary Voltage	400V, 415V, 440V, 480V or customized
Cooling Method	ONAN / ONAF
Insulation Medium	Mineral Oil, FR3 Natural Ester Oil (Optional)
Vector Group	Dyn11, Yyn0, Yd11 or customized
Efficiency	Up to 99%
Standard	IEC 60076, ANSI/IEEE, GB/T 1094
Installation	Indoor / Outdoor
Service Life	25–35 Years

Why Choose a 750 KVA Oil Filled Transformer?

Outstanding Energy Efficiency

Modern 750 KVA transformers are engineered with low-loss silicon steel cores and optimized winding structures that significantly reduce no-load and load losses. High operating efficiency translates directly into lower electricity costs throughout the transformer's lifetime.

Excellent Cooling Performance

Unlike dry-type transformers, oil-filled transformers dissipate heat much more effectively. This allows continuous operation under heavy loads while maintaining safe operating temperatures.

Long Service Life

With proper oil testing and routine maintenance, many oil immersed transformers remain in service for more than 30 years, providing exceptional return on investment.

Lower Total Ownership Cost

Oil filled transformers generally offer a lower purchase price than equivalent dry-type units at higher capacities. Combined with high efficiency and long operating life, they provide one of the lowest lifecycle costs available.

High Reliability

Designed for continuous operation, 750 KVA transformers deliver stable voltage, excellent overload capability, and outstanding resistance to harsh environmental conditions.

Typical Applications

Industrial Manufacturing

Factories rely on 750 KVA transformers to power CNC machines, compressors, production lines, welding equipment, conveyors, and heavy industrial motors.

Commercial Buildings

Shopping centers, hotels, hospitals, office complexes, universities, and airports depend on stable transformer performance for HVAC systems, elevators, lighting, and critical electrical infrastructure.

Renewable Energy Projects

Solar farms, wind farms, and battery energy storage systems frequently utilize 750 KVA transformers for voltage conversion and grid integration.

Utility Distribution Networks

Utilities deploy 750 KVA transformers in urban and rural distribution systems to safely step down medium-voltage electricity for residential and commercial users.

Infrastructure Projects

Railway stations, water treatment facilities, ports, mining operations, and municipal projects require dependable transformer performance for continuous operation.

Advantages of Buying Directly from the Manufacturer

Competitive Factory Pricing

Factory-direct purchasing eliminates distributor markups, providing significant cost savings, especially for bulk procurement and EPC projects.

Custom Engineering

Professional manufacturers can customize almost every parameter, including voltage ratio, vector group, impedance, cooling method, enclosure design, protection level, and accessories.

Strict Quality Control

Each transformer undergoes comprehensive factory testing, including insulation resistance, turns ratio, induced voltage, applied voltage, winding resistance, no-load loss, load loss, temperature rise, and routine dielectric testing before shipment.

International Standards Compliance

Reputable manufacturers produce transformers according to IEC 60076, IEEE C57, GB/T 1094, ISO 9001, ISO 14001, and ISO 45001 quality management systems.

Shorter Production Lead Time

Standard 750 KVA transformers are typically manufactured within 3 to 6 weeks, while customized projects are completed much faster than through traditional trading channels.

Professional Technical Support

Manufacturers provide engineering consultation, installation guidance, commissioning assistance, spare parts supply, warranty service, and lifetime technical support.

How to Select the Right 750 KVA Transformer

Determine Your Voltage Requirements

Select appropriate primary and secondary voltages according to the local utility network and downstream electrical equipment.

Choose the Proper Cooling Method

ONAN cooling is suitable for most distribution applications, while ONAF provides additional cooling capacity for higher loading conditions.

Select Winding Material

Copper windings provide higher conductivity, improved short-circuit strength, and longer service life, while aluminum windings offer a more economical solution for budget-sensitive projects.

Consider Installation Environment

Outdoor installations require corrosion-resistant coatings, higher enclosure protection, and weatherproof accessories, while indoor installations should prioritize ventilation and fire safety.

Verify Certification

Always purchase transformers manufactured according to internationally recognized standards to ensure operational safety, long-term reliability, and regulatory compliance.

Installation and Maintenance Recommendations

Installation

The transformer should be installed on a reinforced concrete foundation with adequate load-bearing capacity. Proper grounding, sufficient ventilation, appropriate clearances, and qualified electrical installation are essential for safe operation.

Routine Maintenance

Regular inspections should include oil level checks, oil quality analysis, winding temperature monitoring, bushing cleaning, gasket inspection, leak detection, and thermal imaging to identify potential issues before failures occur.

Periodic dissolved gas analysis (DGA) and insulation oil testing can significantly extend transformer lifespan and improve operational reliability.

Why Choose Our Factory?

As an experienced transformer manufacturer, we provide factory-direct solutions for global EPC contractors, utilities, renewable energy developers, industrial customers, and electrical distributors.

Our advantages include advanced manufacturing facilities, automated production equipment, experienced engineering teams, rigorous quality inspection, flexible OEM/ODM capabilities, competitive factory pricing, fast international shipping, and responsive technical support.

Whether you require a standard 750 KVA transformer or a fully customized power distribution solution, our engineering team can provide complete support from design through commissioning.

Frequently Asked Questions

How long does a 750 KVA oil filled transformer last?

With proper maintenance and regular oil testing, a quality transformer typically operates reliably for 25 to 35 years or longer.

Can voltage ratings be customized?

Yes. Primary voltage, secondary voltage, vector group, impedance, tap changer configuration, and accessories can all be customized according to project requirements.

What standards should a quality transformer comply with?

Most international projects require compliance with IEC 60076, IEEE C57 series, GB/T 1094, and ISO-certified manufacturing systems.

How often should transformer oil be tested?

Annual oil testing is recommended for normal operating conditions. Critical facilities may perform oil analysis every six months.

What is the typical production lead time?

Standard models are generally delivered within 3–6 weeks, while customized transformers usually require 5–8 weeks depending on technical specifications.

The 750 KVA oil filled transformer remains one of the most reliable and economical solutions for medium-voltage power distribution. Its high efficiency, superior cooling performance, long service life, and flexible customization make it an excellent choice for industrial plants, commercial buildings, renewable energy systems, utilities, and infrastructure projects.

Partnering directly with an experienced transformer manufacturer ensures competitive pricing, strict quality assurance, faster production, customized engineering, and dependable after-sales service. If you are planning a new power distribution project or upgrading existing infrastructure, contact our engineering team today to receive technical consultation, factory pricing, and a customized quotation for your 750 KVA oil filled transformer.
