3240 Epoxy Glass Cloth Laminate and Phenolic Cotton Cloth Laminate: How to Choose?

In the fields of electrical equipment manufacturing, mechanical structural component processing, and industrial production, both 3240 epoxy glass cloth laminate and phenolic cotton cloth laminate are widely used insulation materials. They differ significantly in performance parameters, temperature resistance ratings, mechanical properties, and applicable scenarios. Appropriate selection directly affects product operational reliability, safety, and cost control.

This article systematically explains the selection logic and judgment methods for 3240 epoxy glass cloth laminate and phenolic cotton cloth laminate from four aspects: material characteristics, usage environment, industrial application scenarios, and selection principles.

Material Property Comparison

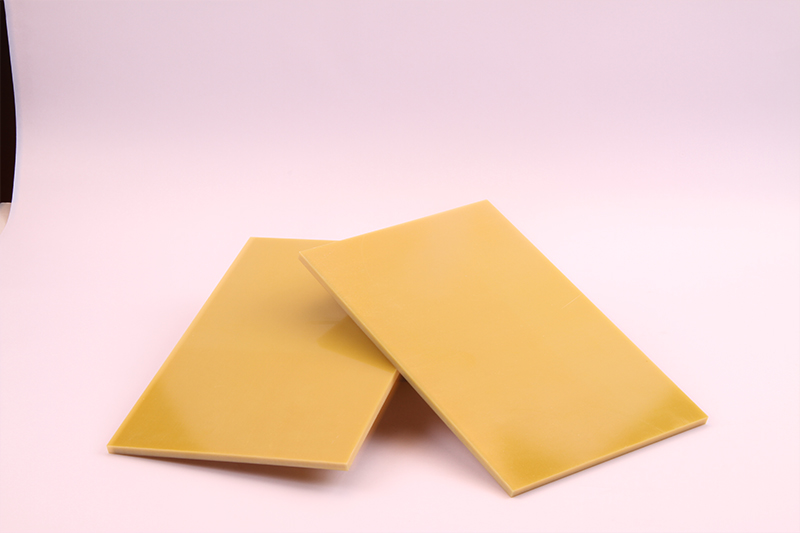

1. 3240 Epoxy Glass Laminate

Base Material: Electronic-grade glass fiber cloth + epoxy resin

Features: High insulation, high mechanical strength, excellent heat resistance

Typical Temperature Resistance: Class B (130°C)

3240 epoxy board has high surface hardness, low water absorption, and strong dimensional stability.

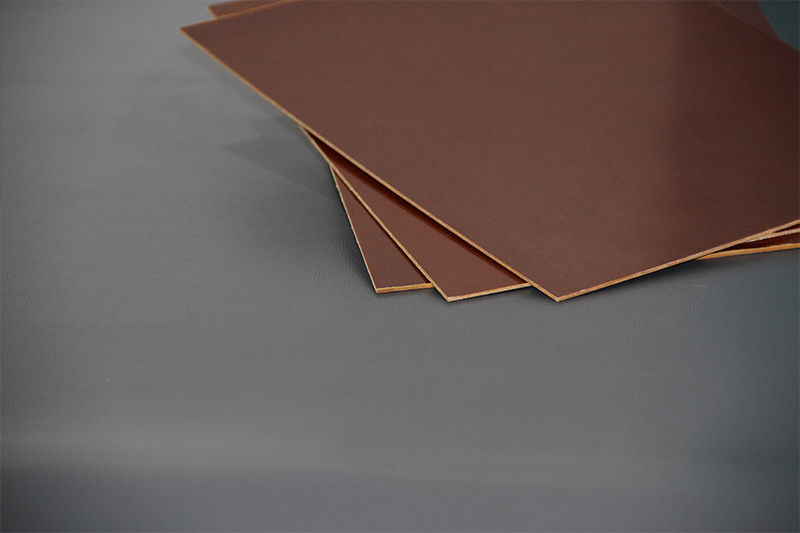

2. Phenolic Cotton Cloth Sheet

Base Material: Pure cotton cloth + phenolic resin

Features: Excellent machinability, high impact resistance

Typical Temperature Resistance: Class E (120°C)

Phenolic cotton cloth is more wear-resistant, more impact-resistant, and relatively cheaper.

Differences in Usage Environment: How to Choose?

Environmental Factor 1: Mechanical Load and Structural Support

1. 3240 Epoxy Board

Typical Applications: Transformer frames, switchgear support partitions, motor slot wedges, PCB test fixture substrates, etc.

3240 epoxy board uses fiberglass cloth as a reinforced skeleton, and its mechanical strength, bending resistance, and impact resistance are higher than phenolic cotton cloth board. It can meet the requirements of high mechanical stress load-bearing and structural components.

2. Phenolic Cotton Cloth Board

Typical Applications: Low-strength insulation gaskets, ordinary terminal blocks, gears, bushings, etc.

Phenolic cotton cloth board has enough mechanical strength to meet the needs of light load scenarios, and its self-lubricating properties are suitable for mechanical transmission components such as gears.

Environmental Factor 2: Operating Temperature

1. Phenolic Cotton Cloth Board

Typical Applications: Internal insulation components of heating appliances such as electric irons, welding machines, and ovens, and scenarios requiring instantaneous high temperature resistance.

Phenolic resin has instantaneous high temperature resistance. Under continuous high temperature environments or instantaneous thermal shock conditions, it has good dimensional stability and is not easily deformed or decomposed.

2. 3240 Epoxy Board

Typical Applications: Insulation of general electrical equipment and electronic components with operating temperatures ≤130℃.

The Class B temperature resistance rating of 3240 epoxy board covers the operating temperature requirements of conventional electrical equipment. Its overall performance is stable within the rated temperature range.

Summary: Phenolic cotton cloth board is recommended for working environments with continuous high temperatures or instantaneous thermal shock.

Environmental Factor 3: Humidity Conditions and Electrical Performance Stability Requirements

1. 3240 Epoxy Board

Typical Applications: High-frequency communication equipment, high-voltage electrical equipment, switchgear and power transformers in humid southern and coastal areas.

3240 epoxy board has extremely low water absorption. It maintains high insulation resistance and high dielectric strength in humid environments.

2. Phenolic Cotton Cloth Board

Typical Applications: Ordinary low-voltage electrical equipment in dry environments, internal insulation components without strict moisture-proof requirements.

The cotton fiber substrate in phenolic cotton cloth board easily absorbs moisture. Humid environments can lead to a decrease in its insulation resistance, posing a risk of leakage and insulation breakdown.

Summary: When the working environment is humid or has strict requirements for electrical performance stability, 3240 epoxy board should be selected.

Environmental Factor 4: Cost Budget and Processing Technology

1. Phenolic Cotton Cloth Board

Typical Applications: Cost-sensitive consumer products, low-end appliances, and mass production scenarios without specific performance requirements.

Phenolic cotton cloth boards have lower raw material and manufacturing costs, resulting in a significant price advantage.

2. 3240 Epoxy Board

Typical Applications: Industrial equipment, military equipment, and high-end civilian products—scenarios with strict requirements for performance, reliability, and safety.

3240 epoxy board is more expensive, but its overall performance can reduce equipment failures and losses caused by material inefficiency.

3240 epoxy board and phenolic cotton cloth board are complementary materials, not substitutes. When selecting materials, evaluating four indicators—operating temperature, electrical performance requirements, mechanical load conditions, and cost budget—can ensure precise material matching, avoiding cost waste due to performance redundancy or safety hazards caused by insufficient performance.
