Custom DDP Heat Resistant Insulation Paper Rolls for Industrial Use

In today's rapidly evolving industrial technology landscape, the stable operation of electrical equipment directly impacts the safety and efficiency of production lines. Whether it's oil-type transformers, motor windings, or various specialized electrical appliances, insulation materials are the critical protective layer determining the equipment's lifespan and operational performance.

With its excellent heat resistance, good mechanical strength, and flexible customization capabilities, DDP heat-resistant insulating paper rolls are gradually becoming the preferred basic insulation material for global industrial manufacturers. This article will analyze the main advantages and key technical indicators of customized DDP heat-resistant insulating paper in industrial scenarios, and how customization services can improve enterprise supply chain efficiency.

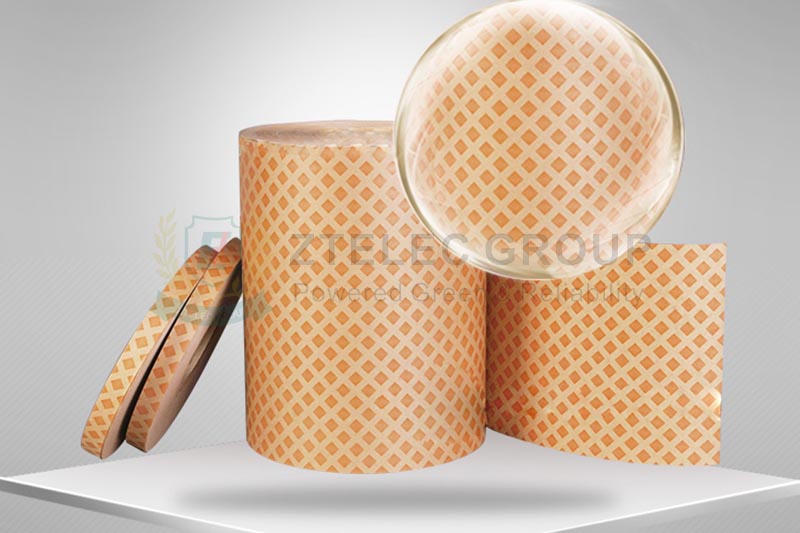

DDP (Diamond Dotted Paper) is a composite insulating material made by coating diamond-shaped hot-melt adhesive dots onto the surface of high-quality electrical insulating paper using a specific process.

During winding manufacturing, when the DDP insulating paper is heated and pressed, the surface adhesive dots melt, bonding adjacent winding layers together to form a stable insulation structure.

DDP insulating paper typically possesses the following characteristics: good electrical insulation properties, stable heat resistance rating (typically F grade), reliable interlayer bonding, high mechanical strength, and suitability for automated winding processes. These characteristics make it a fundamental material for interlayer insulation in transformer windings and it is widely used in the manufacture of various electrical equipment.

Key Advantages of Customized DDP Insulation Paper Rolls

Different electrical equipment has varying requirements for insulation material specifications. Therefore, customized DDP insulation paper rolls are attracting increasing attention from equipment manufacturers. Their advantages are mainly reflected in the following aspects:

Adjustable Thickness

Common base material thicknesses are 0.13 mm, 0.18 mm, and 0.25 mm. Customization services for other thicknesses are also available based on equipment design requirements.

Adjustable Adhesive Dot Spacing

The standard spacing for diamond-shaped adhesive dots is 5 mm, 7 mm, and 10 mm. By adjusting the adhesive dot distribution density, the winding bonding strength and structural stability can be controlled to meet the operating requirements of different equipment.

Adjustable Roll Width

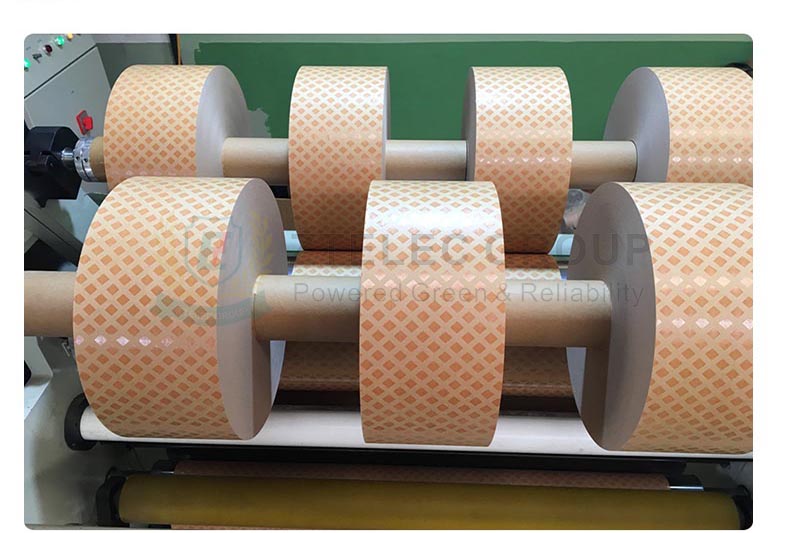

DDP insulation paper rolls can be precisely cut according to the company's production process needs, suitable for various scenarios such as narrow-band winding insulation, wide-width interlayer insulation, and specifications specific to automatic winding equipment. Custom width helps improve material utilization and reduce production costs.

Key Technical Parameters for Customized DDP Heat-Resistant Insulating Paper Rolls

When customizing DDP heat-resistant insulating paper rolls, purchasing engineers or production managers should focus on the following technical indicators to ensure the materials meet industrial production requirements:

Temperature Resistance Rating: Ensures the material does not age or become brittle under long-term operating temperatures (e.g., 155°C, 180°C, or 220°C).

Breakdown Voltage: Typically measured in kV/mm. The thicker the custom roll, the higher the breakdown voltage.

Tensile Strength: Determines whether breakage will occur under winding tension.

Shrinkage: Dimensional stability of the material is crucial after high-temperature baking.

Industrial Applications of DDP Heat-Resistant Insulating Paper Rolls

1.Transformer Manufacturing

DDP insulating paper is the basic material for interlayer insulation in oil-immersed transformer windings. It is widely used in distribution transformers, power transformers, and new energy transformers. Through hot-press bonding, it can enhance the stability of the winding structure and extend the service life of the transformer.

2.New Energy Vehicle Drive Motors

As electric vehicle voltage platforms upgrade from 400V to 800V and above, the requirements for corona resistance and high-temperature resistance of motor slot insulation are constantly increasing.

Customized thin, high-density DDP heat-resistant insulating paper has become an important auxiliary material for flat-wire motors, meeting the technical requirements of high-end new energy vehicles.

3.Special Welding Machines and Induction Heating Equipment

These types of equipment experience frequent start-ups and shutdowns and large current surges. Conventional insulating paper is prone to fatigue damage. Customized DDP heat-resistant paper, with its good toughness, can withstand thermal shock and mechanical vibration during operation, ensuring stable equipment operation.

How to Optimize Your Procurement Process?

Clarify Requirement Details

Provide product drawings or specifications, clearly indicating material thickness, width, roll length, core inner diameter, and packaging method (usually moisture-proof packaging is required to prevent moisture from affecting performance).

Request Material Property Data Sheets

Request suppliers to provide material property data sheets for DDP materials, confirming that the product complies with UL certification and environmental regulations such as RoHS and REACH.

Conduct Sample Verification

Before bulk customization, it is recommended to conduct sample testing to verify the material's compatibility with actual equipment, such as tensile strength and edge burrs, to avoid incompatibility issues after bulk purchase.

Ensure Supply Chain Stability

Select suppliers with stable inventory and rapid cutting capabilities to ensure timely material supply during peak production seasons and avoid production delays due to stockouts.

| If you are looking for customized heat-resistant insulation solutions for transformers, motors, or special electrical appliances, please contact us for samples and technical support to jointly optimize production processes and improve product quality.
