High-Performance G11 Insulation Sheets & Custom Machined Parts

In industrial manufacturing and electrical engineering, there is a persistent market demand for materials that can maintain stable performance in harsh environments. When applications simultaneously face high mechanical loads, high temperatures, and electrical insulation requirements, standard materials often fall short.

G11 insulation boards were developed specifically to address these needs—they are composite boards based on glass fiber reinforced epoxy resin. However, the material itself is only the foundation. To make it precisely fit into complex equipment, professional processing is still required. Machined parts manufactured by specialized companies are key to achieving this goal. This article will explain why G11 is a high-strength insulation material and how custom processing meets the specific needs of projects.

G11 Insulation Board Overview

G11 insulation boards are laminated products made by impregnating glass fiber cloth with epoxy resin and then pressing it under high temperature and pressure. This material composition gives it excellent electrical insulation properties and mechanical strength, and it can maintain stable performance in high-temperature environments.

Compared to the common FR4 material, G11 material has a higher heat resistance rating and better mechanical strength. Therefore, it is suitable for applications with higher requirements for high temperature and voltage.

Characteristics of High-Performance G11 Sheets

A high-performance G11 insulation board primarily relies on quality control during the manufacturing process. High-quality G11 sheets typically possess the following characteristics:

Dense resin filling with few internal pores – contributing to stable insulation performance

Uniform sheet thickness – facilitating subsequent processing and installation

Good dimensional stability – less prone to deformation during long-term use

Whether used in transformer components, motor supports, or high-voltage switchgear, selecting stable-quality G11 materials helps ensure the reliability of the final product.

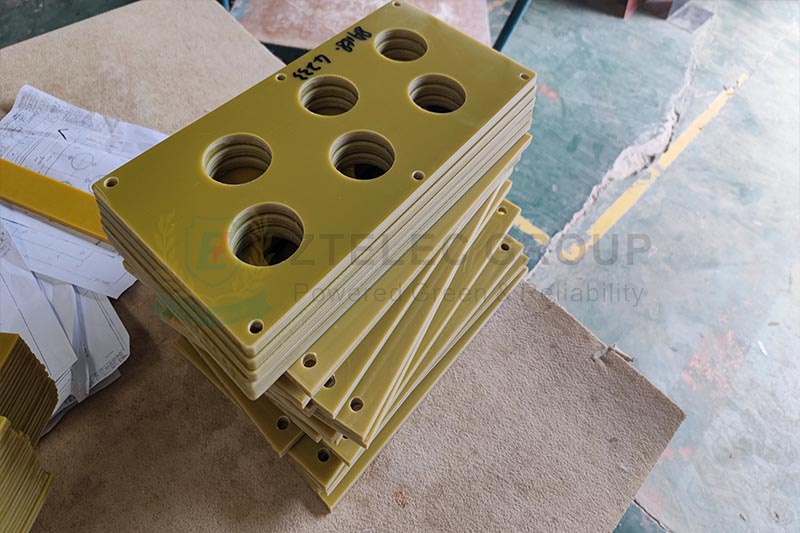

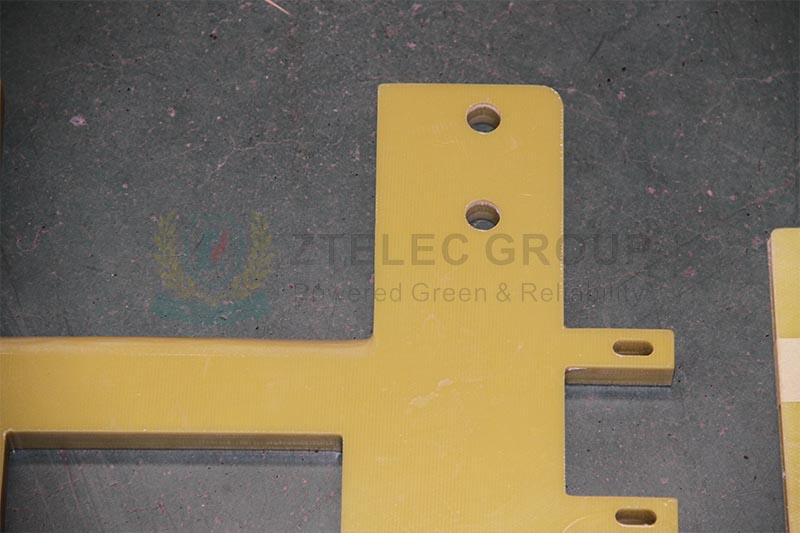

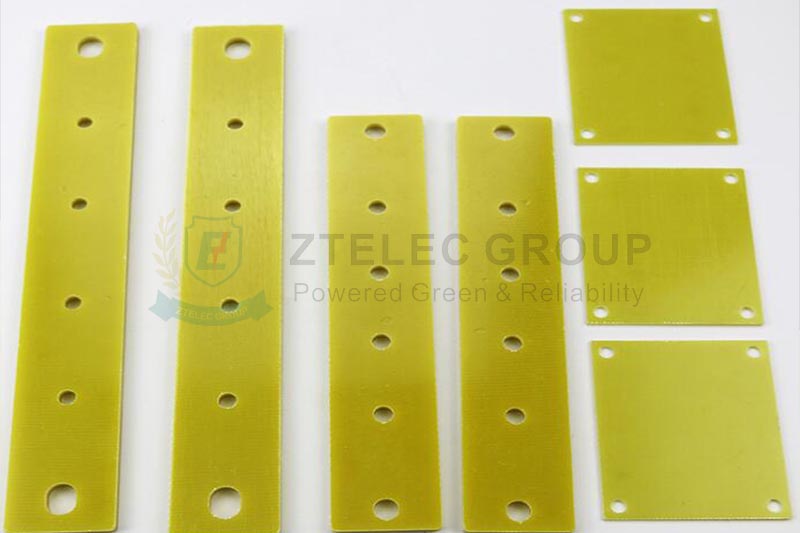

Custom G11 Parts Manufacturing

Standard-sized sheets can meet general needs, but the practical application value of G11 material often requires processing. Due to the hardness of G11 and its glass fiber content, it causes wear on machining tools. Therefore, the processing requires appropriate equipment and cutting tools. This is why custom-made parts need to be handled by specialized manufacturers.

Common custom machining methods include:

CNC machining and milling: Used for manufacturing parts with complex shapes. This method can machine structures such as mounting holes and positioning grooves to meet assembly accuracy requirements.

Waterjet cutting: This method uses high-pressure water jet cutting, suitable for machining parts with complex contours. The processed product has smooth edges and no heat-affected zones.

Stamping: This method is suitable for mass production of simple-shaped parts such as gaskets and washers, and is highly efficient.

Typical Applications of G11 Machined Parts

Combining G11 insulation boards with custom machining allows for the production of components suitable for various scenarios, primarily including:

Electrical Insulation Components: Such as coil bobbins, terminal blocks, insulating pads, etc.

Mechanical Components: Gears, cams, wear-resistant strips, etc., requiring both mechanical strength and insulation performance.

Automation Equipment: Pads and structural supports in robotic arms, etc.

New Energy and Rail Transit: Separators in battery modules, motor slot wedges, etc.

The Advantages of Customizing G11 Processed Parts

Choosing a professional manufacturer for custom machining of G11 insulation boards offers the following practical benefits:

Improved Assembly Efficiency: Customized processed parts can be directly installed upon arrival, reducing the workload of on-site finishing.

Ensuring Assembly Accuracy: Accurate machining dimensions contribute to equipment structural stability and electrical safety.

Controlling Manufacturing Costs: Batch machining and rational design layout help reduce material waste and unit costs.

Meeting Diverse Industry Applications: This product can serve fields such as motor manufacturing, transformer production, switchgear assembly, and new energy equipment.

As electrical equipment evolves towards higher voltage and higher power density, the application of G11 insulation boards in motors, transformers, and high-voltage equipment is gradually increasing. Furthermore, through custom processing of G11 insulation boards, equipment manufacturers can obtain insulation components with more precise dimensions and more reliable performance, which helps to improve the overall quality of the product.

If your project has high requirements for insulation performance and mechanical support, you may consider using custom-processed G11 components. Reasonable investment in materials and processing can usually demonstrate its value in performance and stability during the subsequent use of the equipment.
